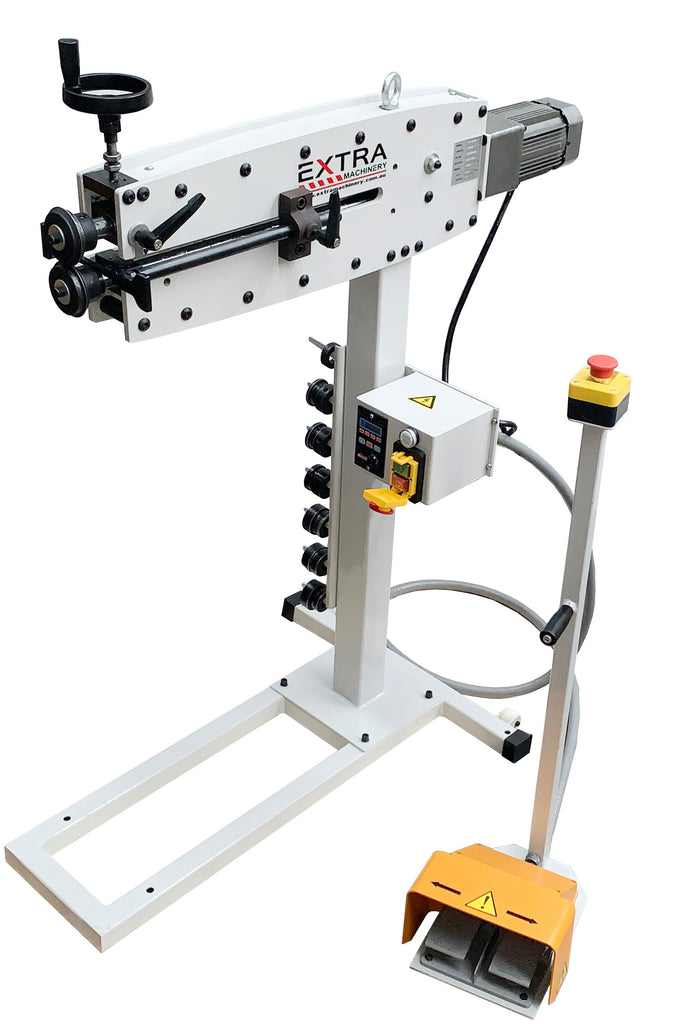

EB-700 Motorized Bead Roller Variable speed1.2mm Capacity 700mm Throat W/ table & fence

Extra Machinery Pty Ltd

$950.00

SKU: EB700



  • Doulbe frames for good rigidity, avoid flexing.

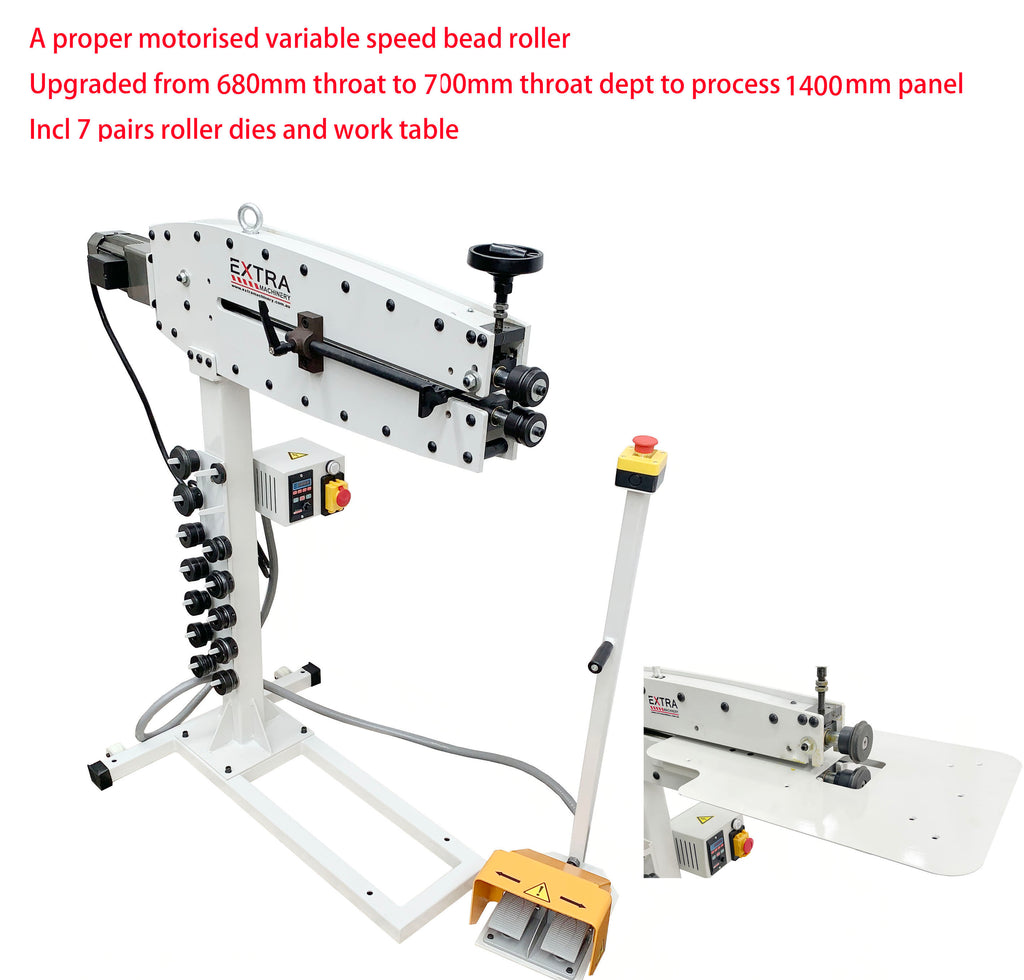

  • 700mm throat depth to the centre of the roller, and 1400mm panel can be  processed from roller centre
  •  Motorised roller shafts with gear reduction box

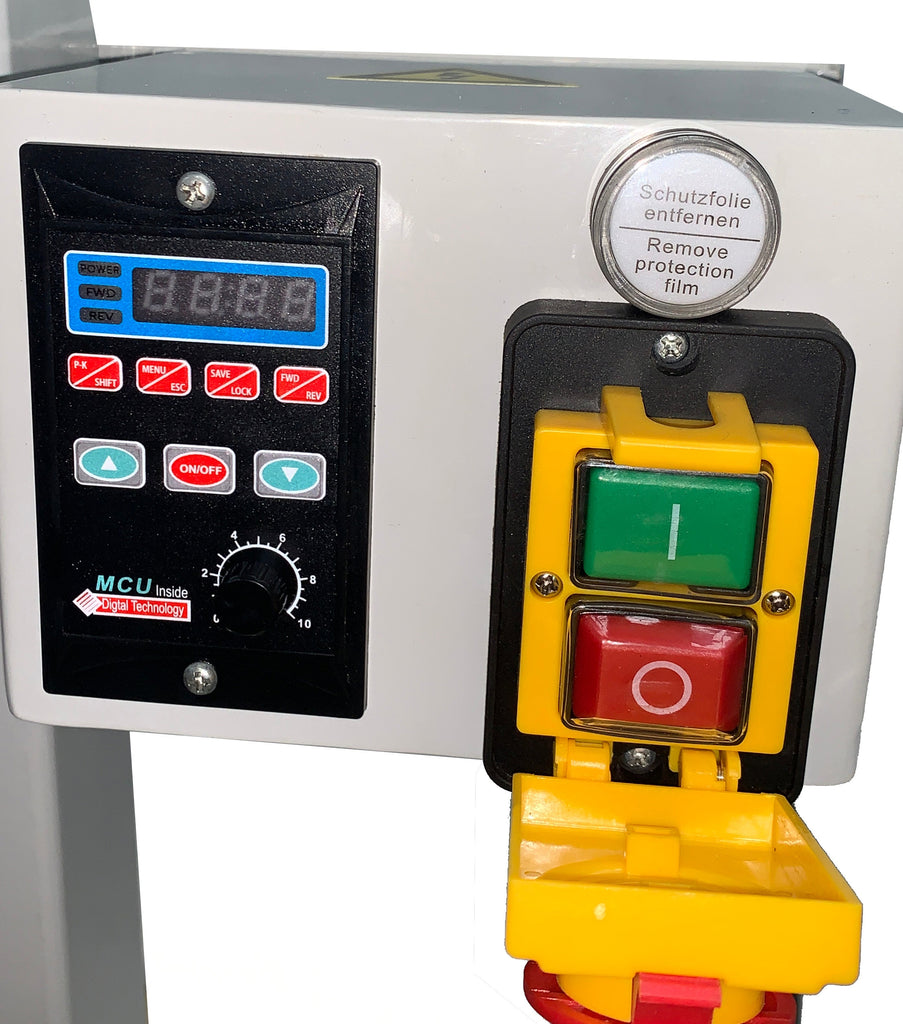

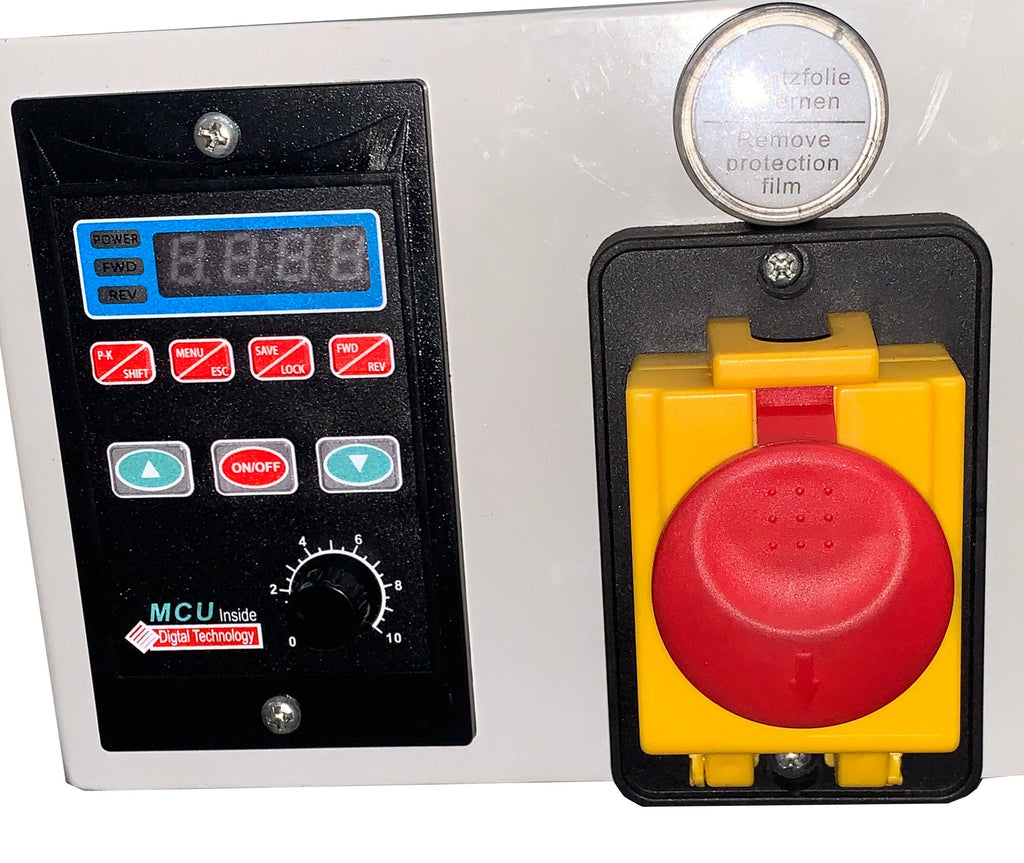

  •  0.25kW / 0.33hp, 240V variable speed motor with reduction gearbox
  •  Foot pedal switches to control forward/reverse running.
  •  Big hand wheel adjusts the depth of top roller.
  •  All rollers are hardened, black oxide finish for long life

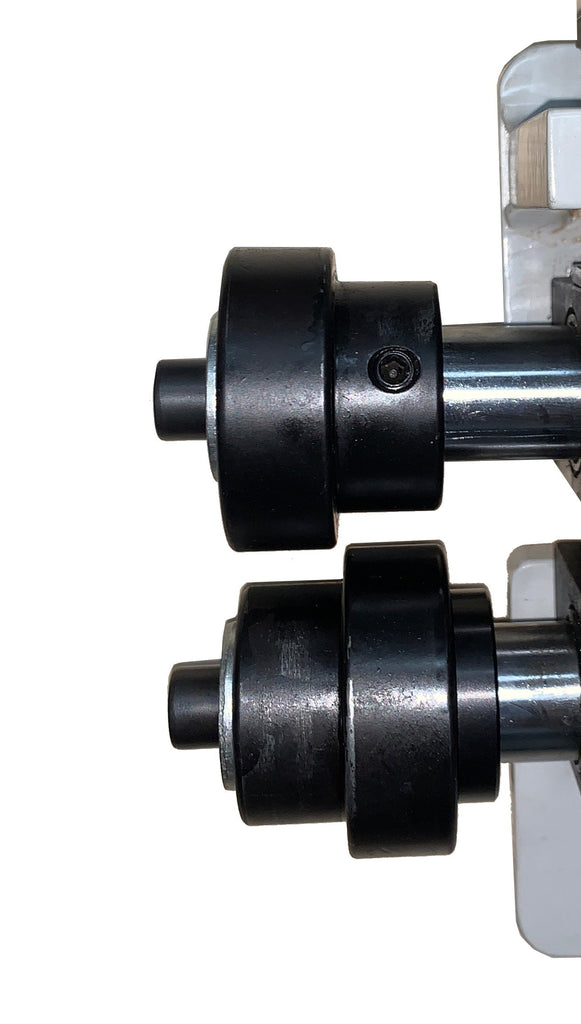

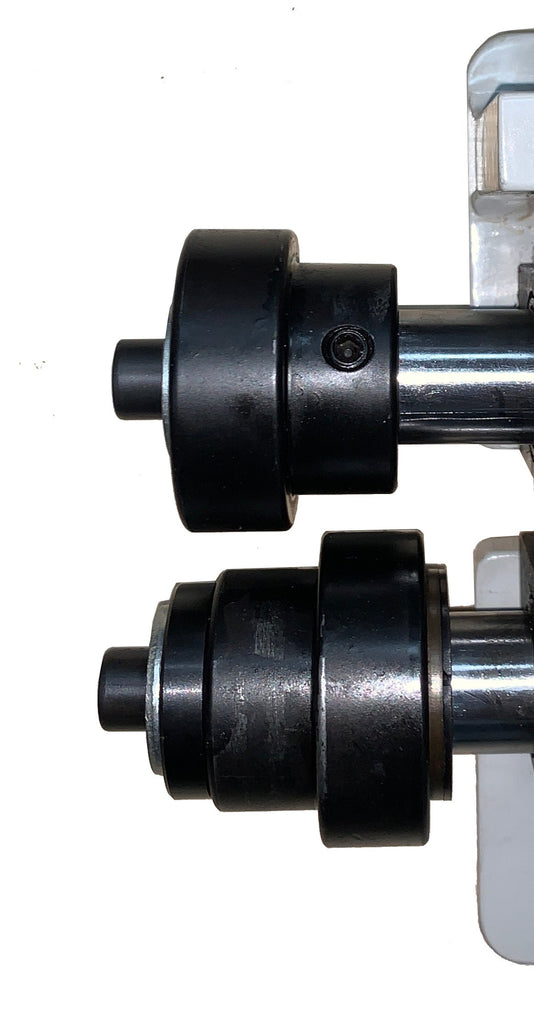

  •  Include 7 sets rollers as standard,  one shearing roll, 3 sizes of beading roll, 3 sizes of step rolls
  • Two roller wheels are fitted on the base for easily moving the machine

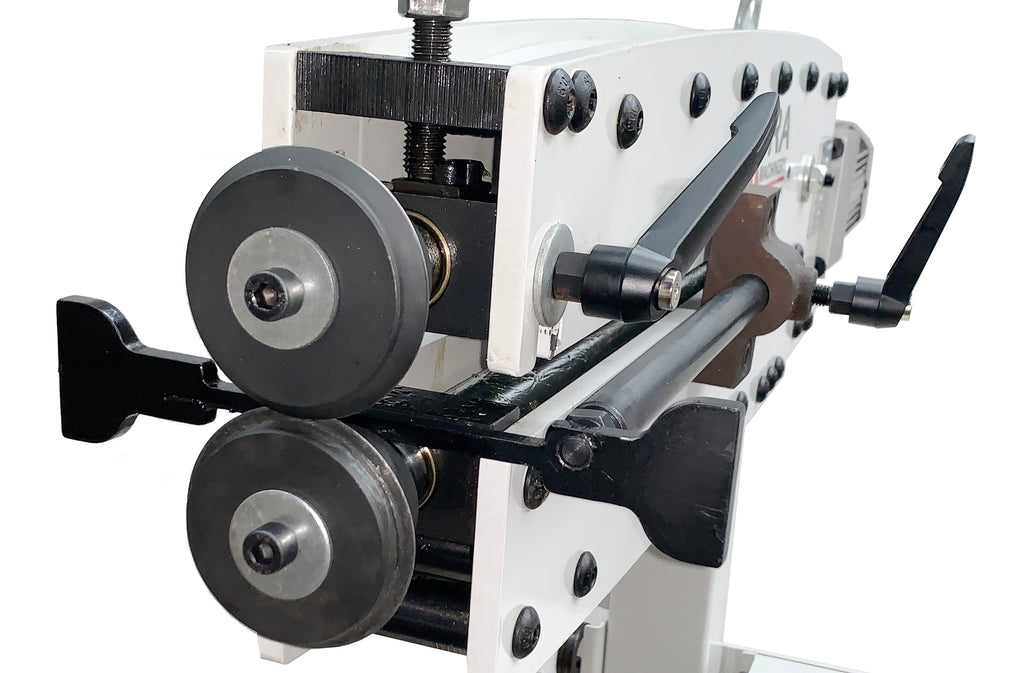

  • Include material stop fence & work table
  •  25mm drive-shafts are supported in quality bronze bearing bushes that are self-lubricated, no need of any grease

  1.2mm mild steel capacity for bead & flange rolls

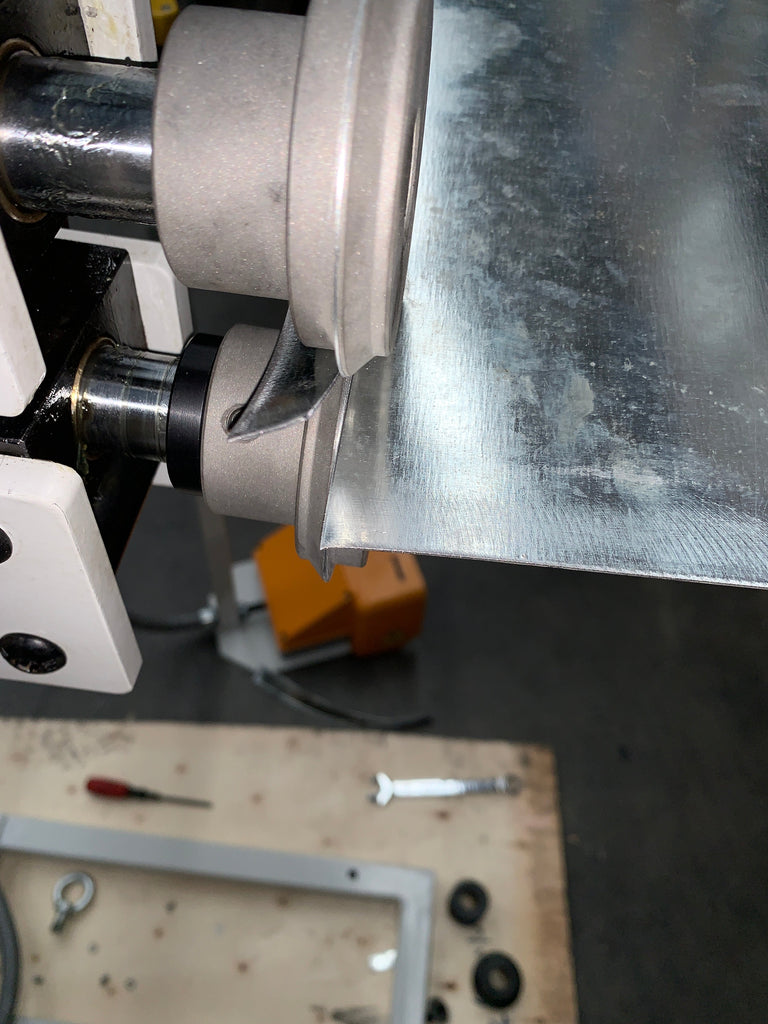

  • 1.0mm mild steel capacity for shearing rolls
  • HARDENED ROLLS AND BLACK OXIDED FOR LONG LIFE.
  • Post & base for bench mounting.
  • Ø25mm drive shafts
  • Ø22mm spigot for mounting rollers
    Spigot of top shaft is 37mm, the bottom is 42mm,  with spacer & washers to align different combinations of optional roller dies.

  • Gear driven system
Includes

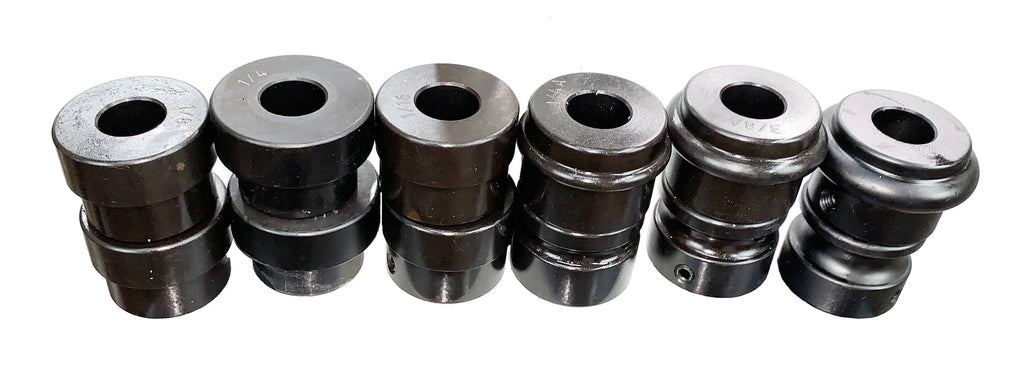

  • 7 Sets of rolls with Ø22mm bore:

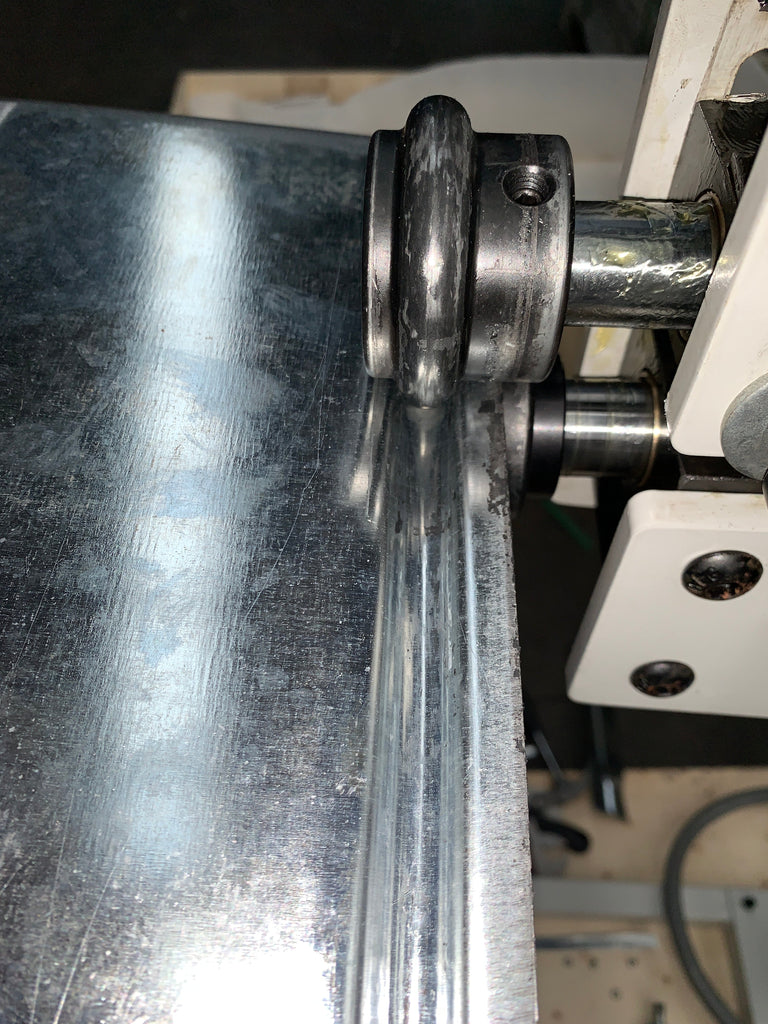

  • 1/4" (6.35mm) single bead roll set
  • 3/8" (9.5mm) single bead roll set
  • 1/2" (12.7mm) single bead roll set
  • 1/16" (1.6mm) flange roll set
  • 1/8" (3.2mm) flange roll set
  • 1/4" (6.35mm) flange roll set

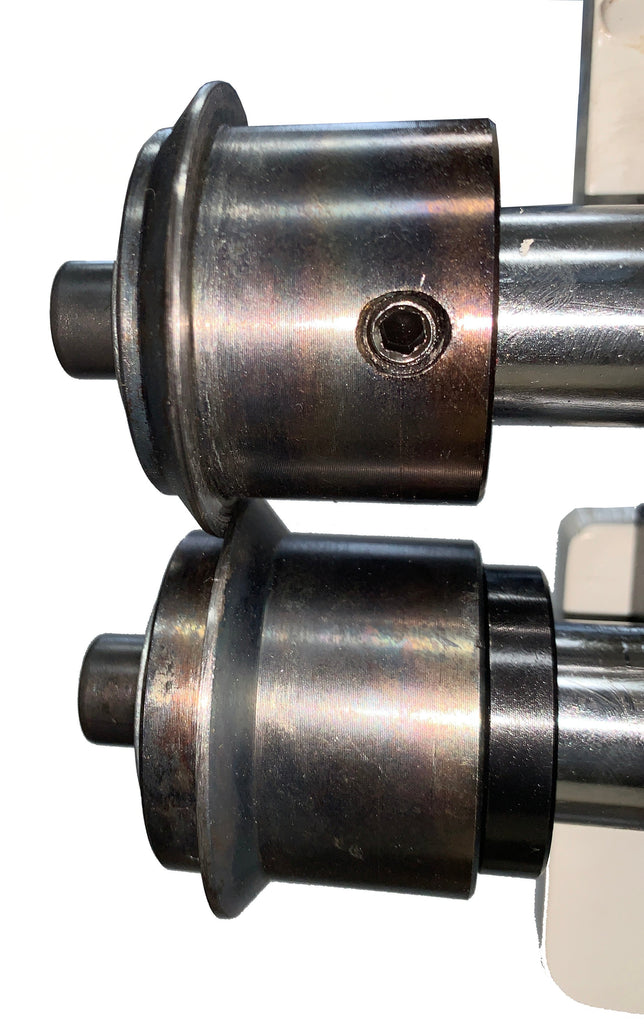

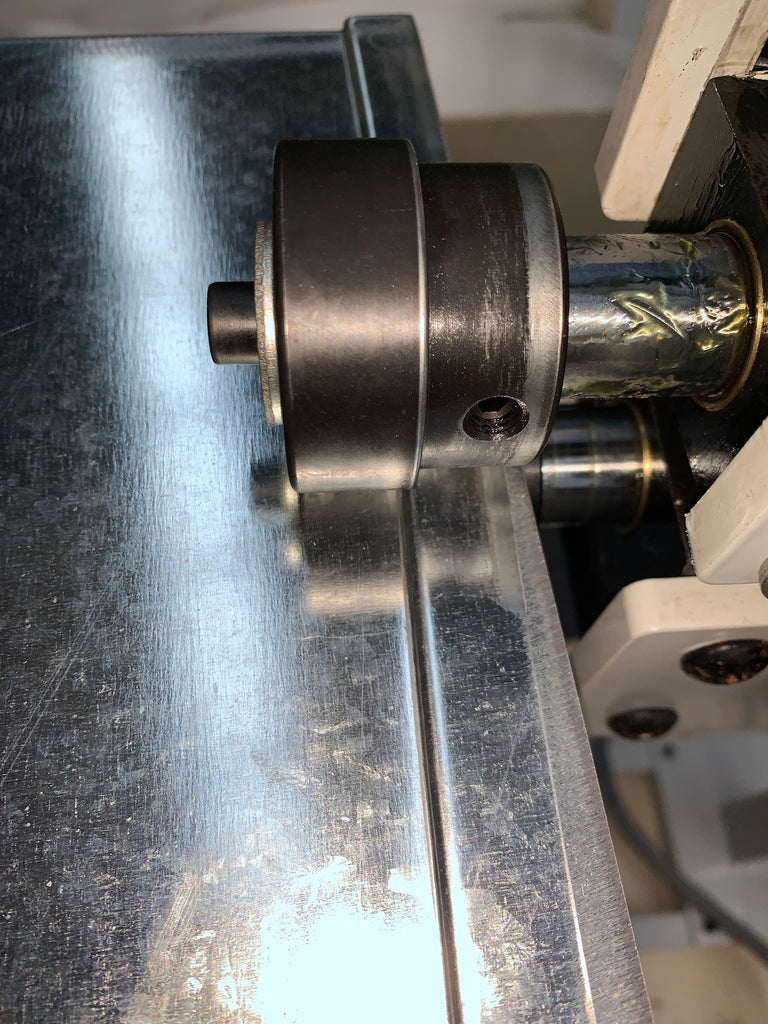

  • Shearing roll set

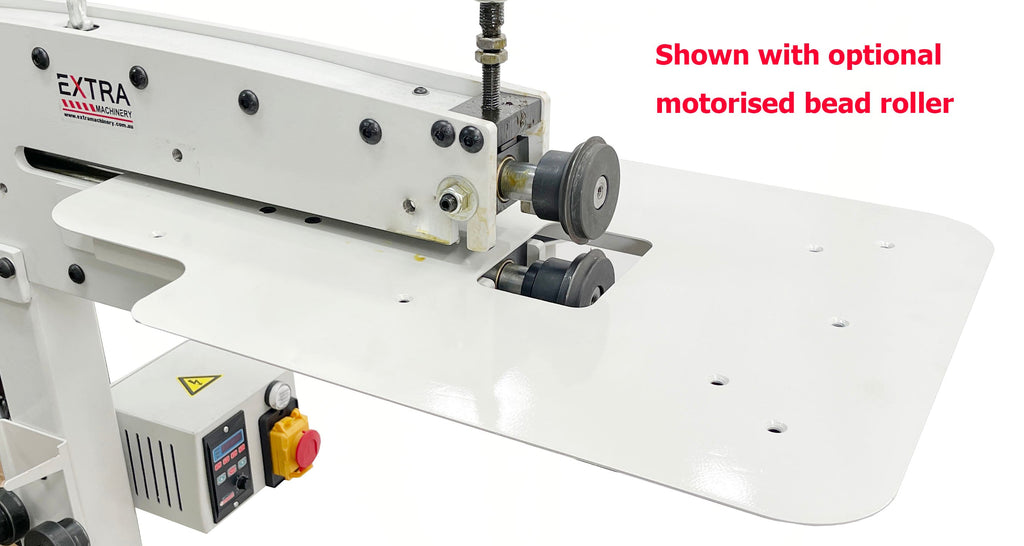

  • Work table for long material

https://youtu.be/LB-5rhzwD3M



*** specifications & photos & machine colour subject to change without notice.
