EW-940D Deluxe English Wheel & Planishing Hammer PH-51 & Motorized Bead Roller EB-1070

Extra Machinery Pty Ltd

$2,550.00

SKU: S6009DXX

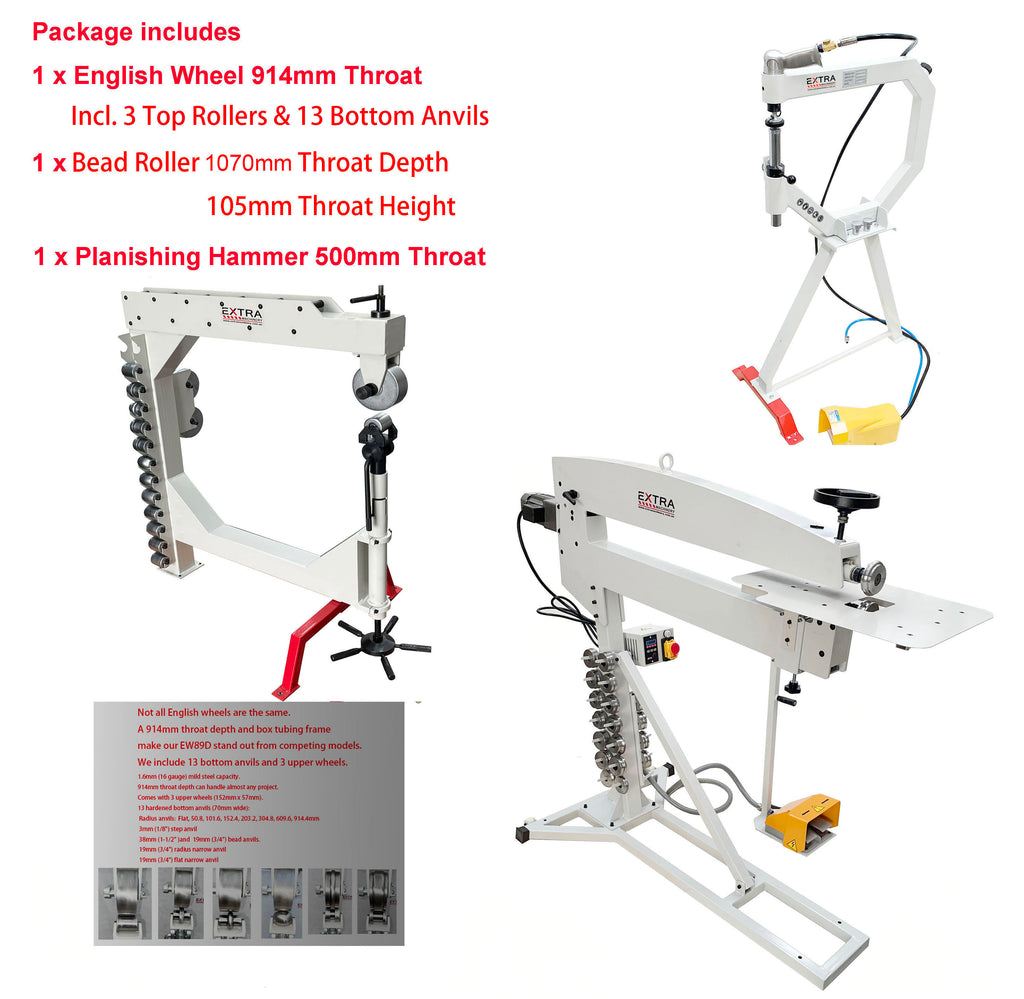

3 MACHINES ARE SOLD AT ONE PACKAGE.

(SKU S646 + SKU S647 + EB1070)


HEAVY DUTY STEEL FABRICATED MACHINE

NEW!!!!



MORE NEW FEATURES ARE INLCUDED

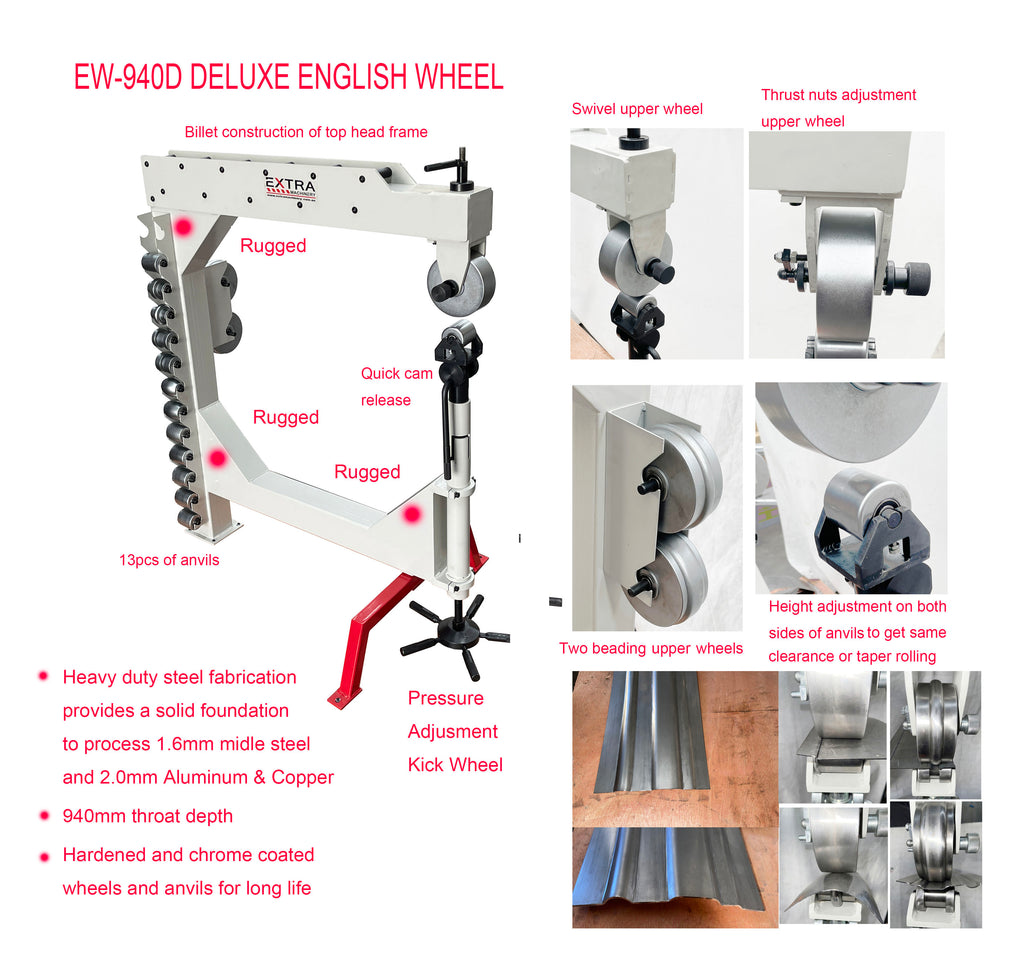

BILLET STRUCTURE OF HEAD WITH 8MM PLATE

LEFT/RIGHT ADJUSTMENT OF TOP ROLLER TO ALIGN WITH DIFFERENT BOTTOM ANVILS SUCH AS EDGING, BEADING.

UP/DOWN ADJUSTMENT OF BOTTOM ANVILS TO GET THE SAME GAP ON BOTH SIDES

CNC MACHINED PARTS FOR BOTTOM ANVIL LIFTING ASSEMBLY TO GURANTEE THE MINIMUM BACKLASH.

CHROME COATED TOP ROLLERS & BOTTOM ANVILS FOR RUST PROOF & LONG LIFE.


940MM THROAT
1.6MM FOR MILD STEEL AND 2MM FOR COPPER AND ALUMINIUM.

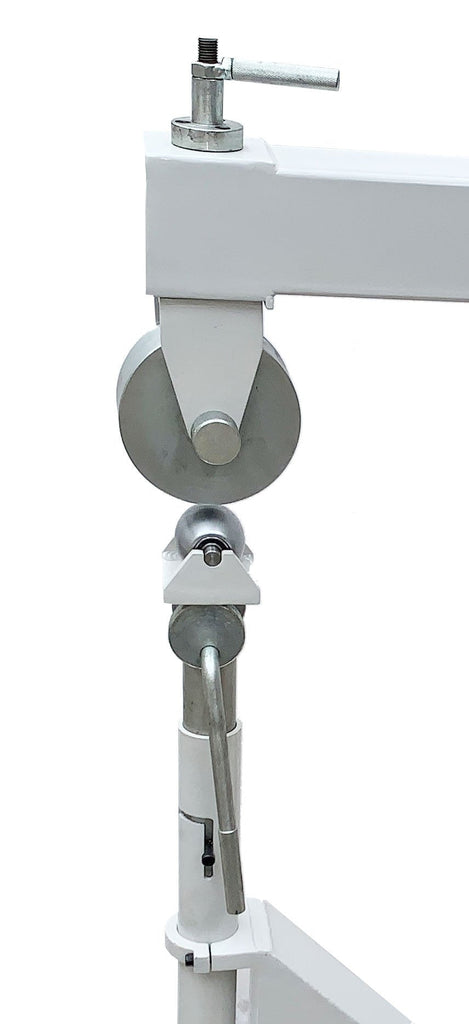

SWIVEL TOP ROLLER HEAD 0 - 90º ,

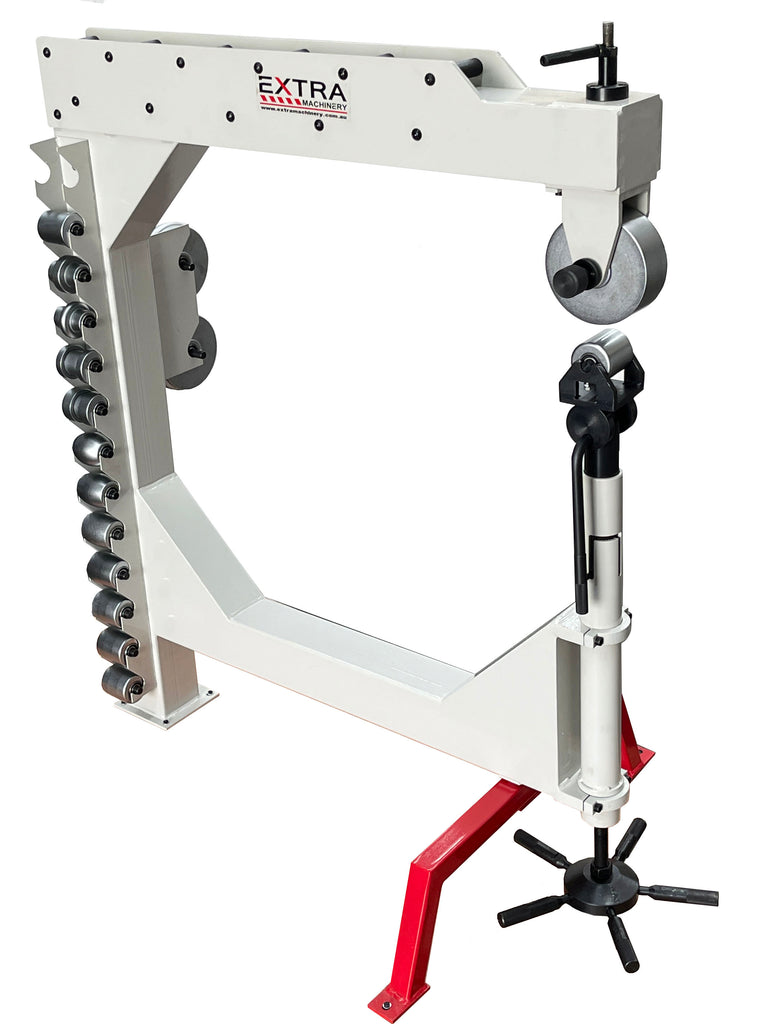

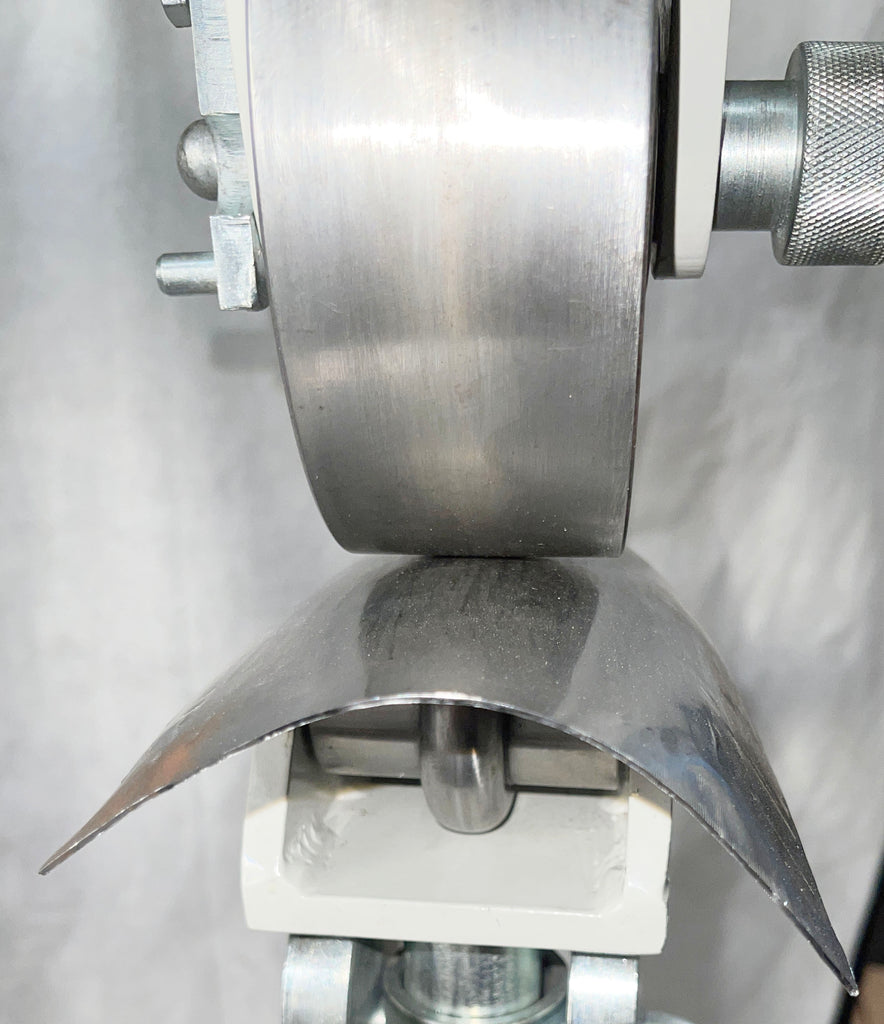

Not all English wheels are the same. A 914mm throat depth and box tubing frame make our EW89D stand out from competing models. We include 13 bottom anvils and 3 upper wheels.

  • 1.6mm (16 gauge) mild steel capacity.

  • 914mm throat depth can handle almost any project.

  • Comes with 3 upper wheels (152mm x 57mm).

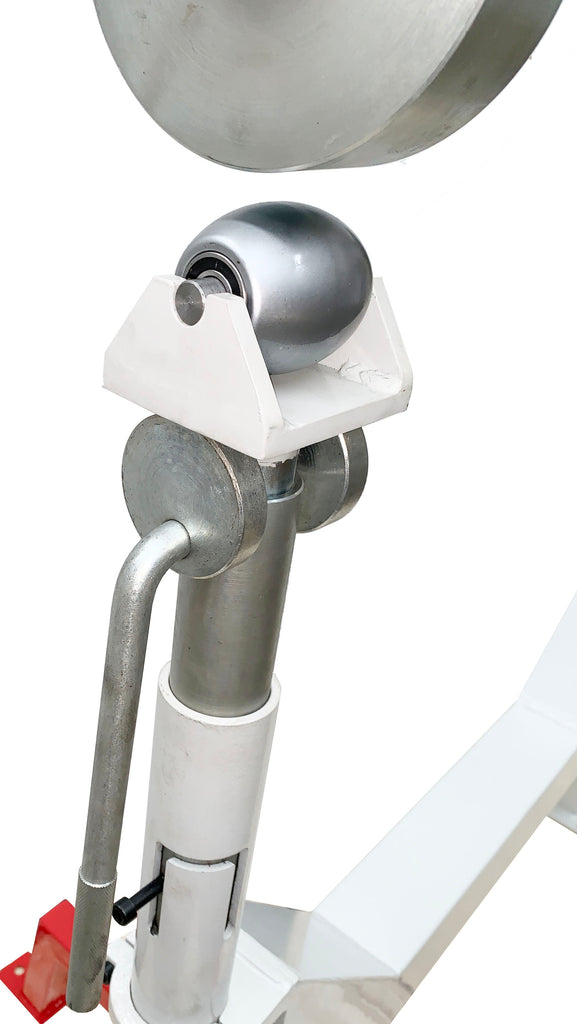

  • 13 hardened bottom anvils (70mm wide):
    •  Radius anvils:  Flat, 50.8, 101.6, 152.4, 203.2, 304.8, 609.6, 914.4mm

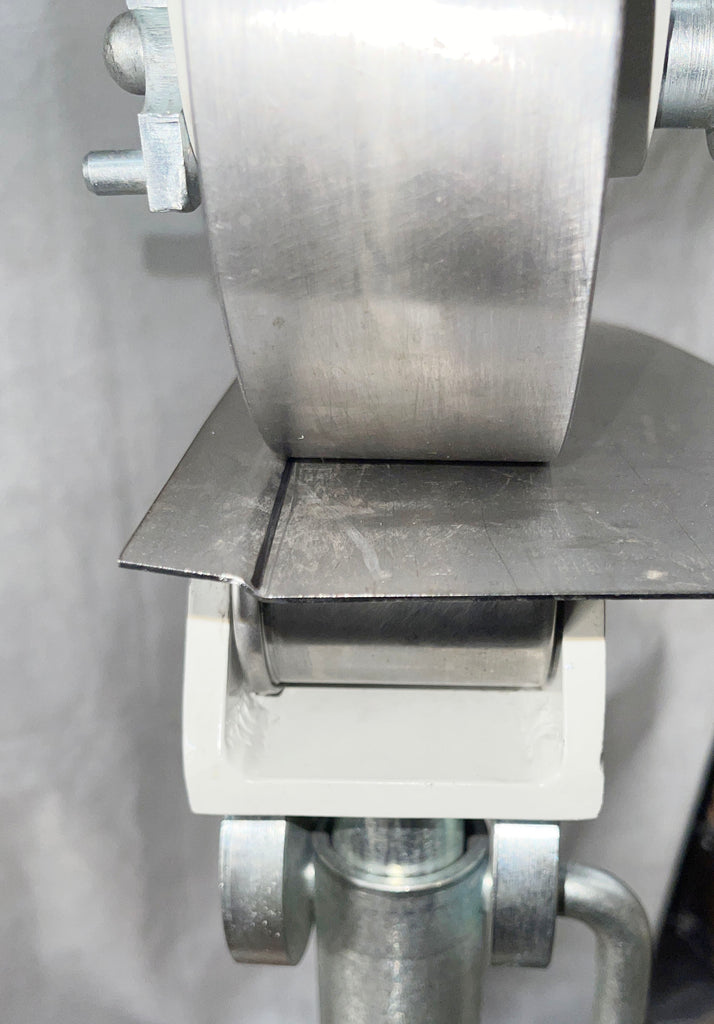

    •  3mm (1/8") step anvil

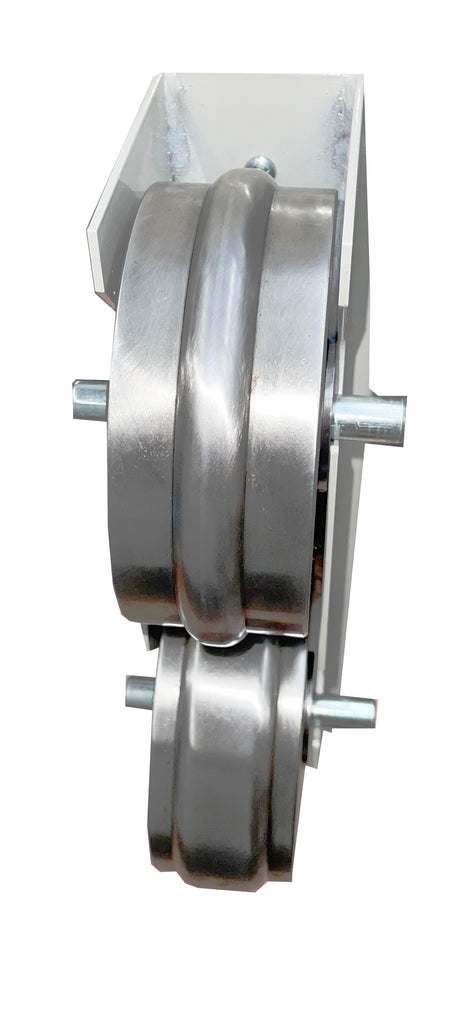

    •  38mm (1-1/2" )and  19mm (3/4") bead anvils.
    •  19mm (3/4") radius narrow anvil
    •  19mm (3/4") flat narrow anvil

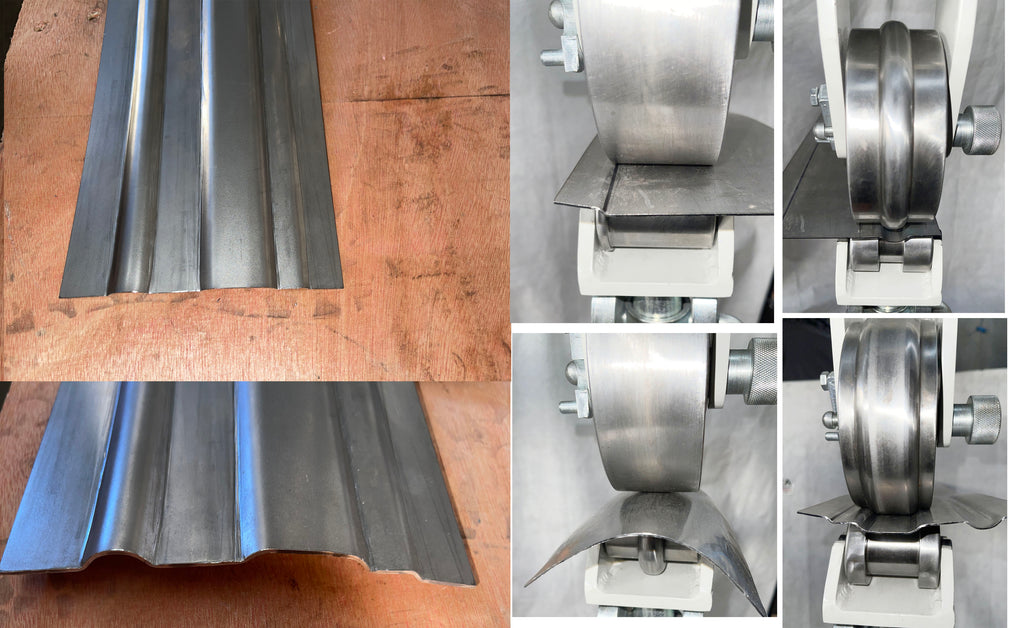

  • You can roll beads as well as form metal on this English wheel.

  • All upper wheels and lower anvils use sealed bearings.

  • Swivel head lets you either push material directly into the throat or at a 90° to it.

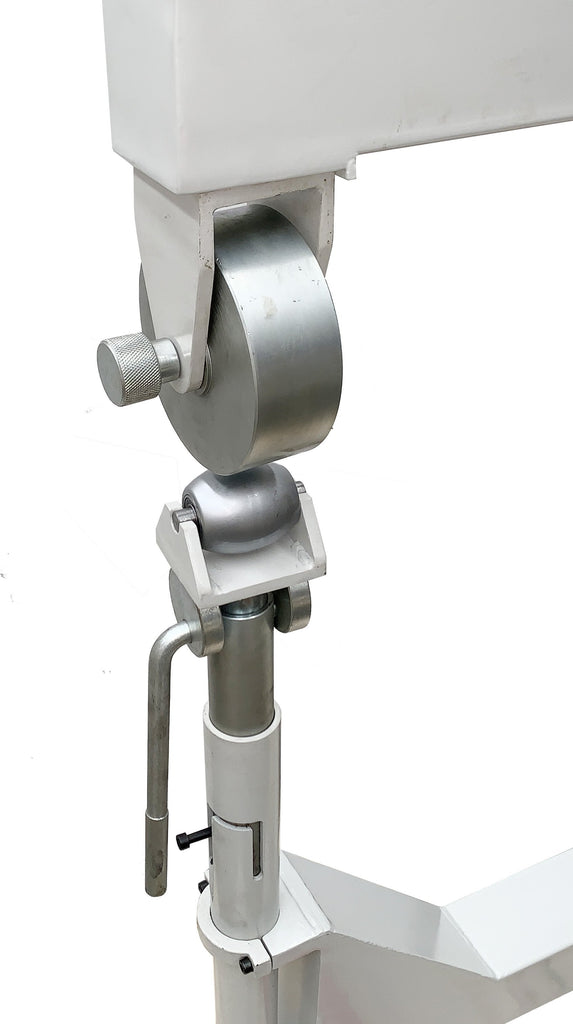

  • Quick-release cam allows you to release the panel without changing tension.

  • Adjust the tension via the kick tensioner wheel.

  • Heavy tube construction with heavy rugged welding

  • Wheel racks on the side of the machine gives you a convenient place to put your rolls.

Recommended for: Restoration or bodywork on autos, planes, cycles, and much more.

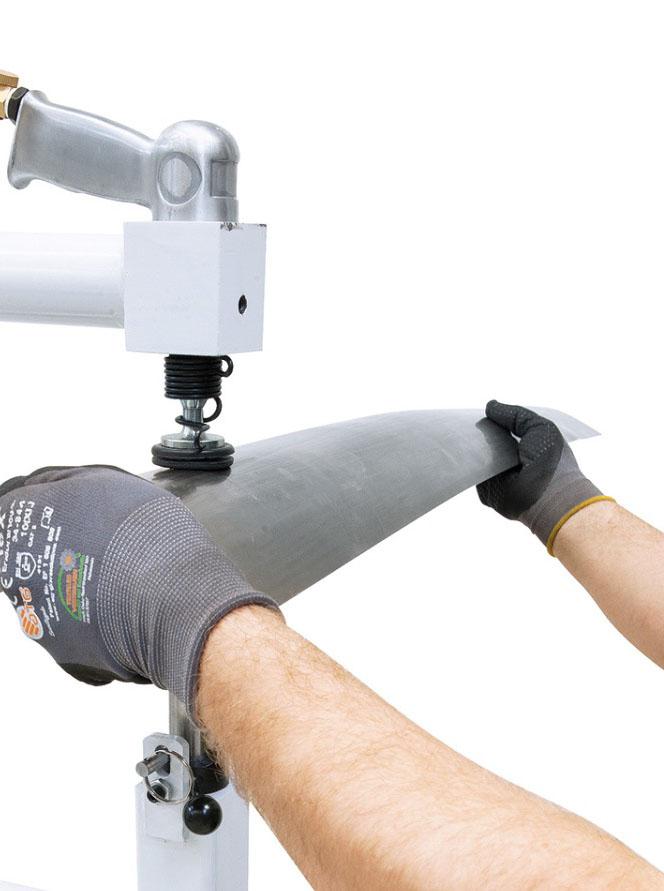

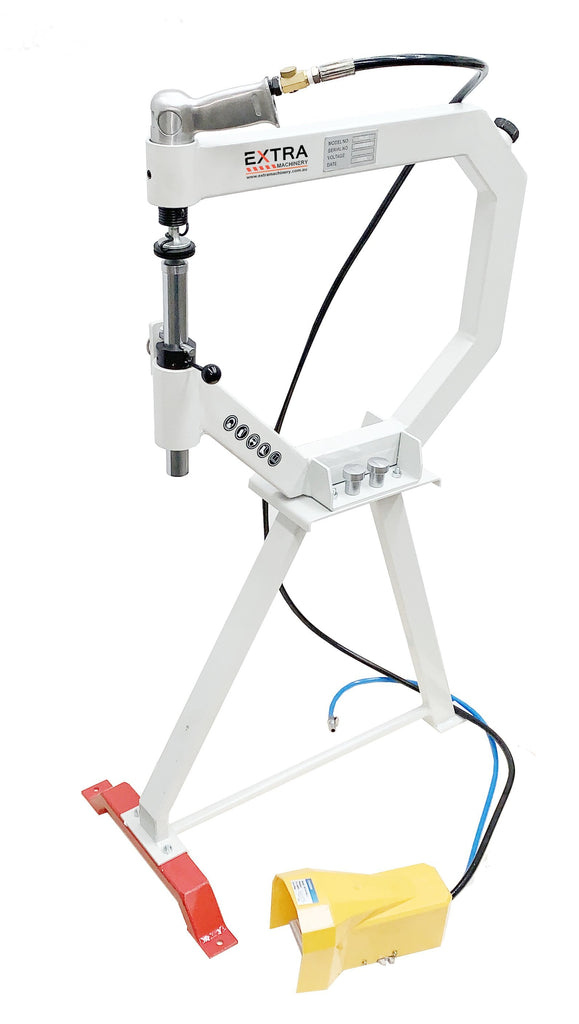

PLANISHING HAMMER  IS USED  TO SMOOTH LARGE AREAS OF METAL IN METAL FABRICATION AND RESTORATION, FOR EXAMPLE CUSTOM MOTORCYCLE GAS TANK AND FENDER MANUFACTURING, STREET ROD BODIES, PATCH PANELS FOR AUTO RESTORATION, REPAIR AND METAL SCULPTING.



  • Sturdy Steel fabricated frame

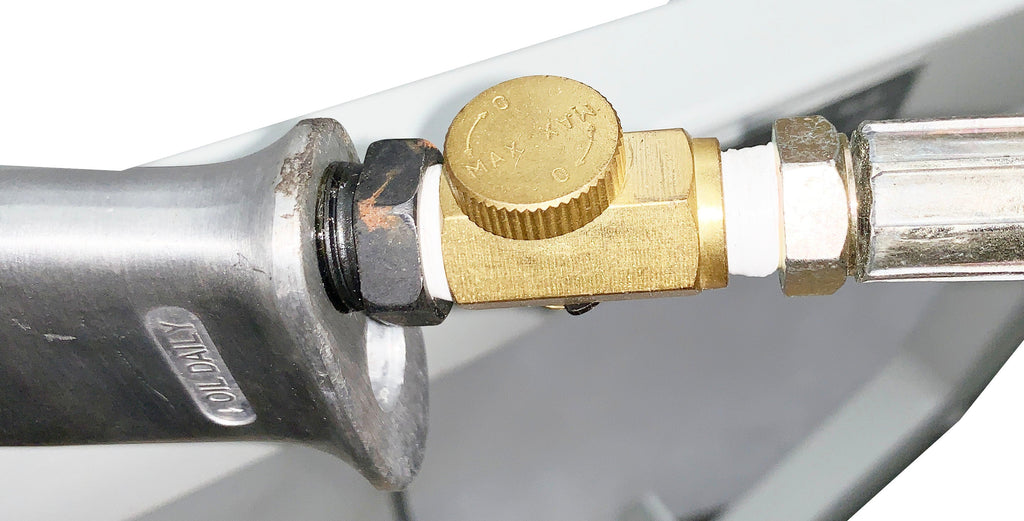

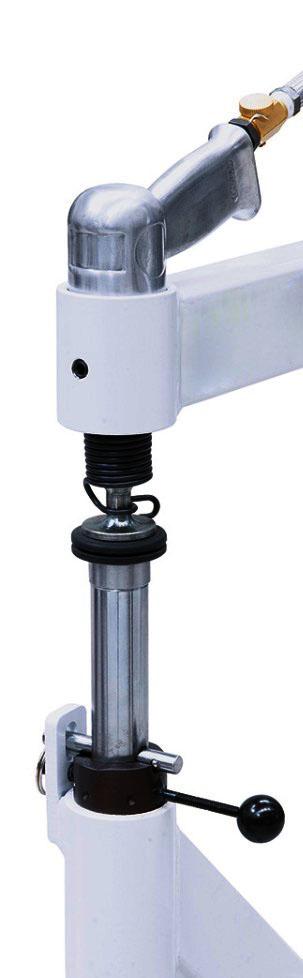

  • Heavy duty aircraft gun for power head, with adjustment control of the intensity from 875-1350 blows per min.
  • Quick release of the lower shaft to accept panels with high flanges.

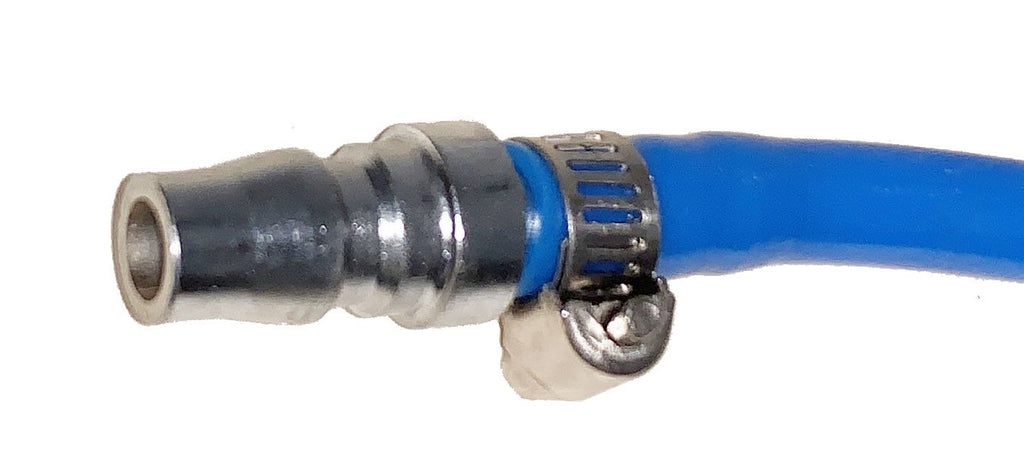

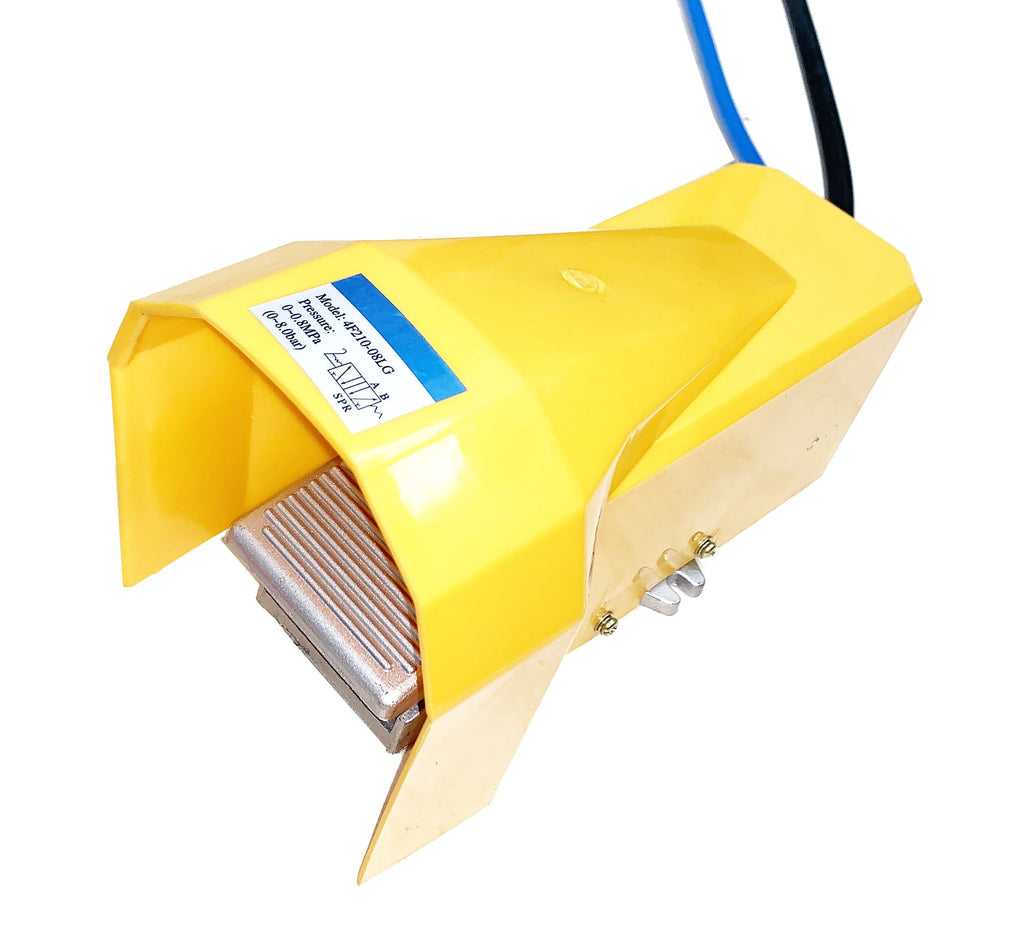

  • Foot control starts and stops the hammering while being hooked up to compressed air.

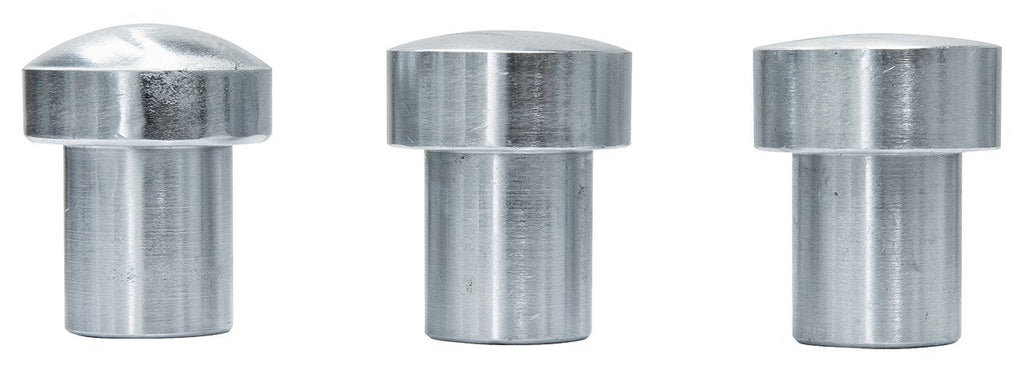

  • Includes Ø32mm flat top die, 25, 50 and 76mm radius anvils.
  • 500mm throat capacity
  • 1.2mm mild steel capacity
  • 50 - 100PSI pressure
  • Overall height 1220mm
  • The footprint of the machine is 750mm x 350mm





 MAXIMUM BENDING CAPACITY 1.2MM MILD STEEL  (NET WEIGHT 158KG)

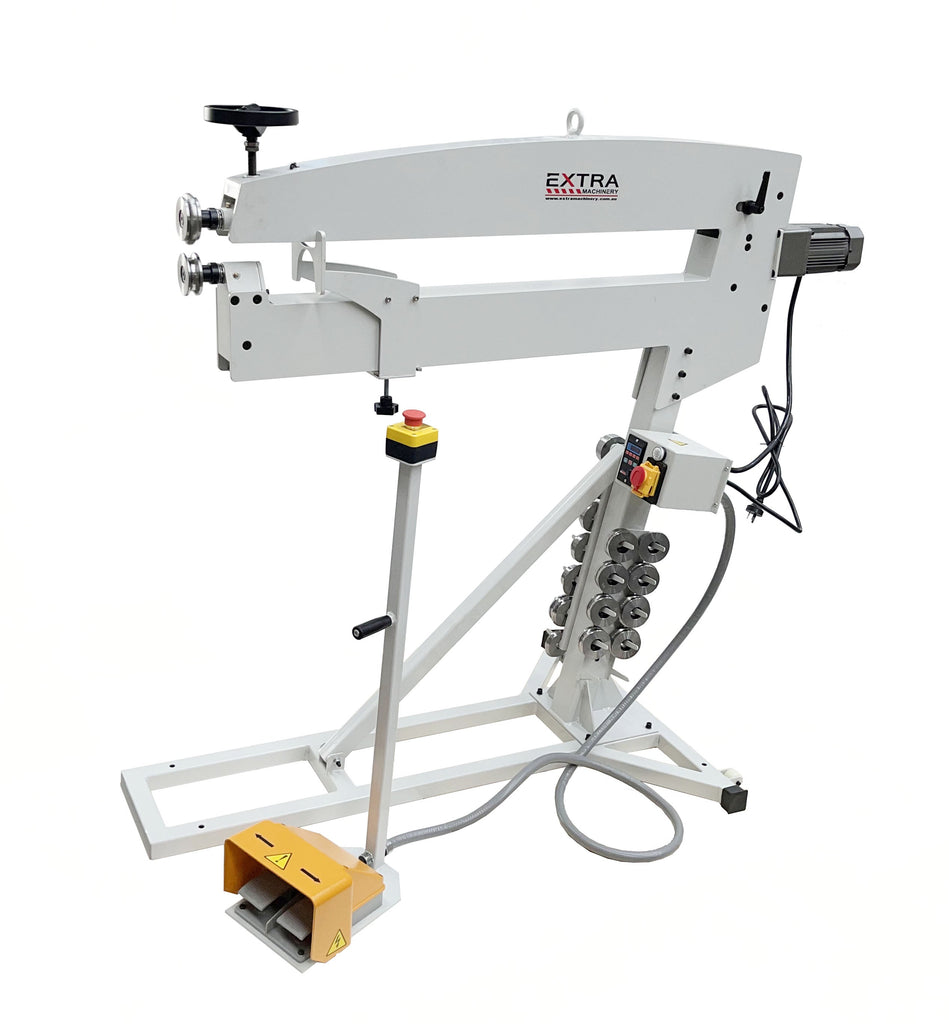

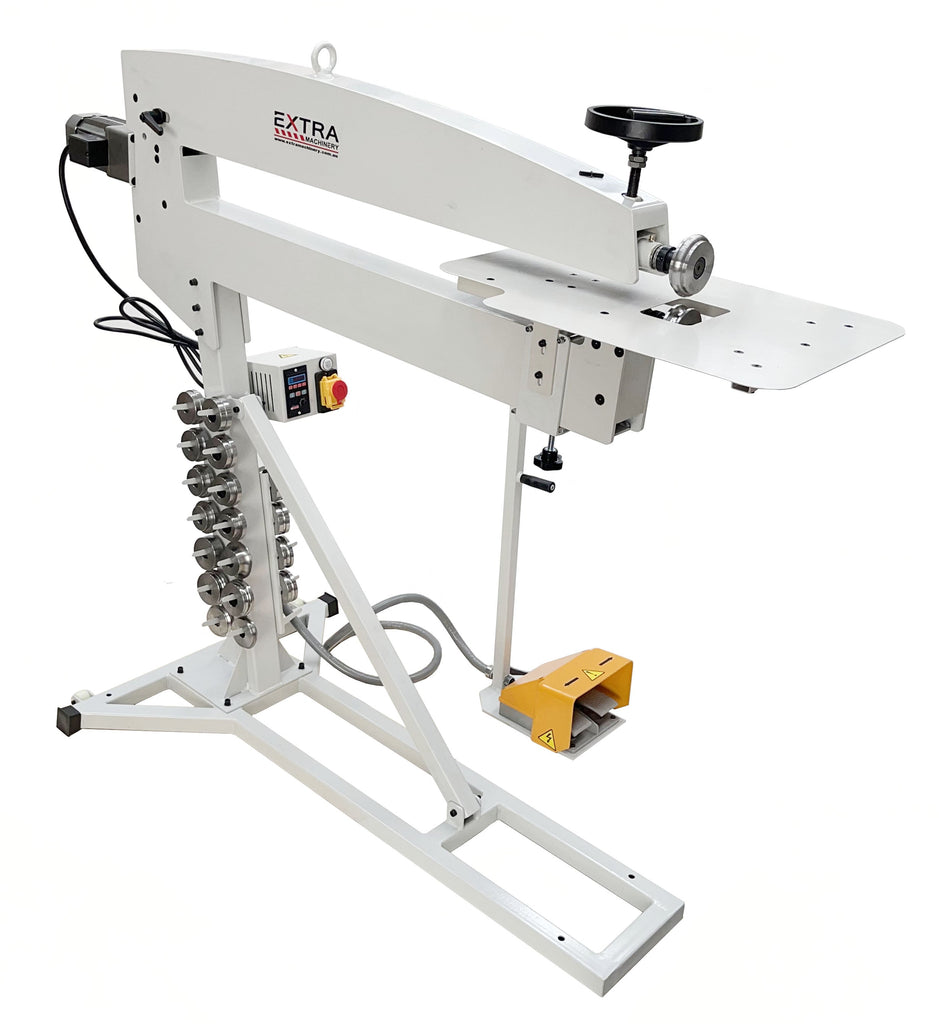

  •  1070mm throat depth, and 2140mm panel can be  processed from roller centre
  •  Motorised roller shafts with gear reduction box

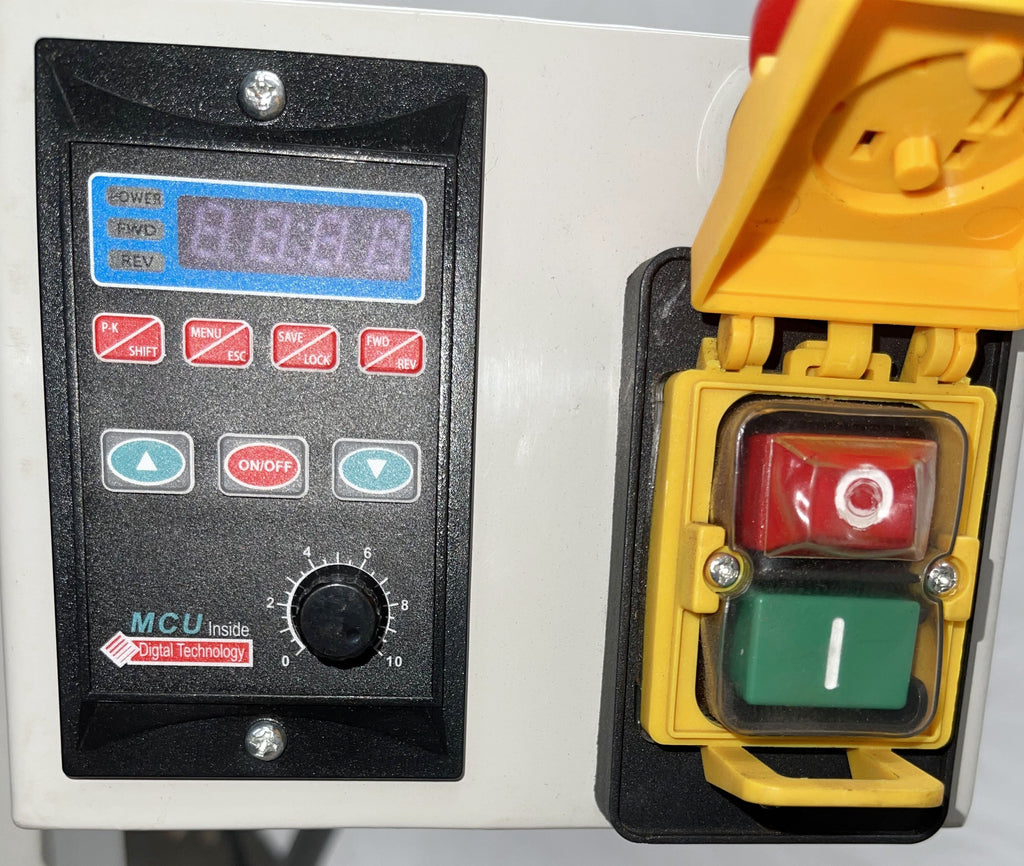

  •  240V single phase motor with variable speed control
  •  Foot pedal switches to control forward/reverse running.
  •  105mm distance between top & bottom roller supports
  •   Top shaft moves forward/backward to align the centre lines of top/bottom rollers
  •   Big hand wheel adjusts the depth of top roller.

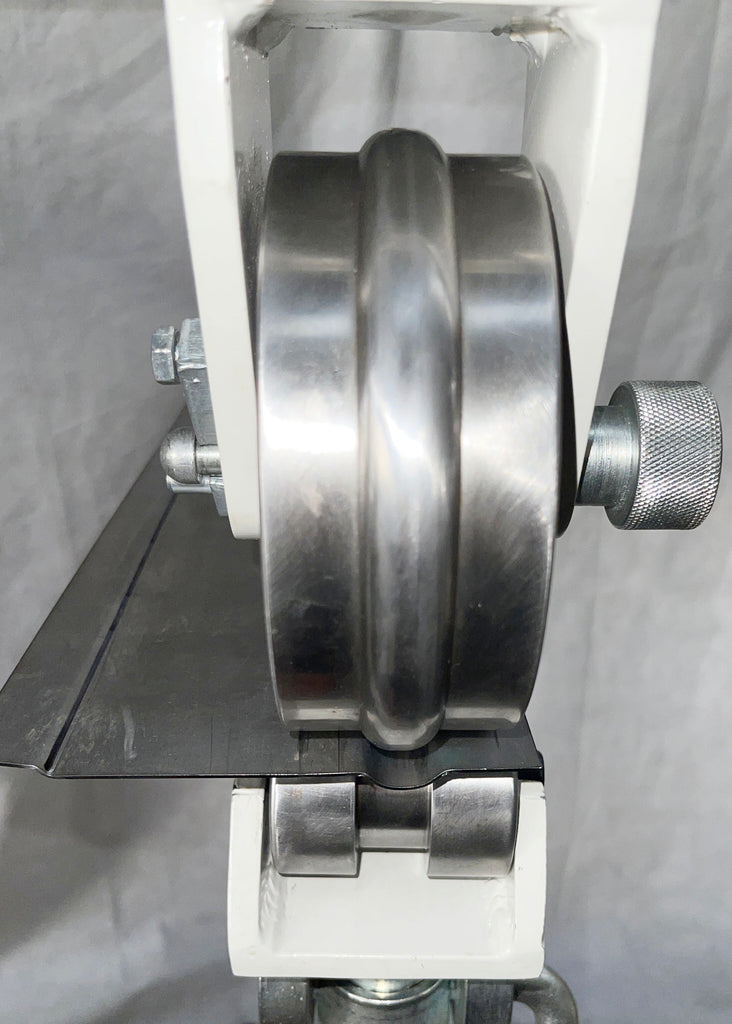

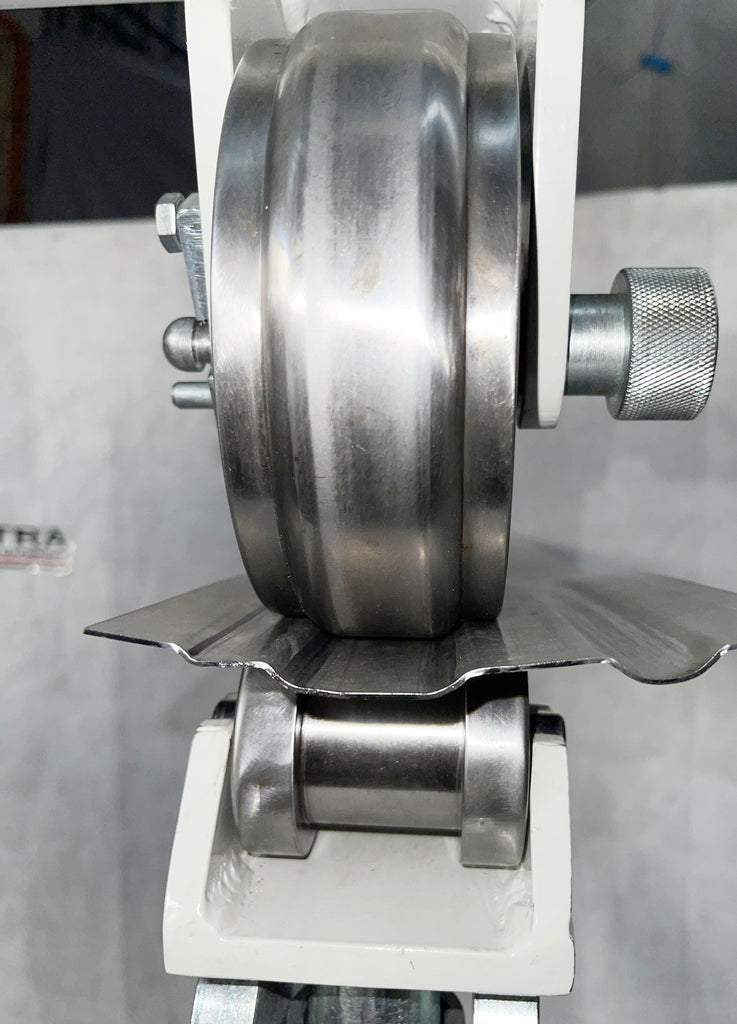

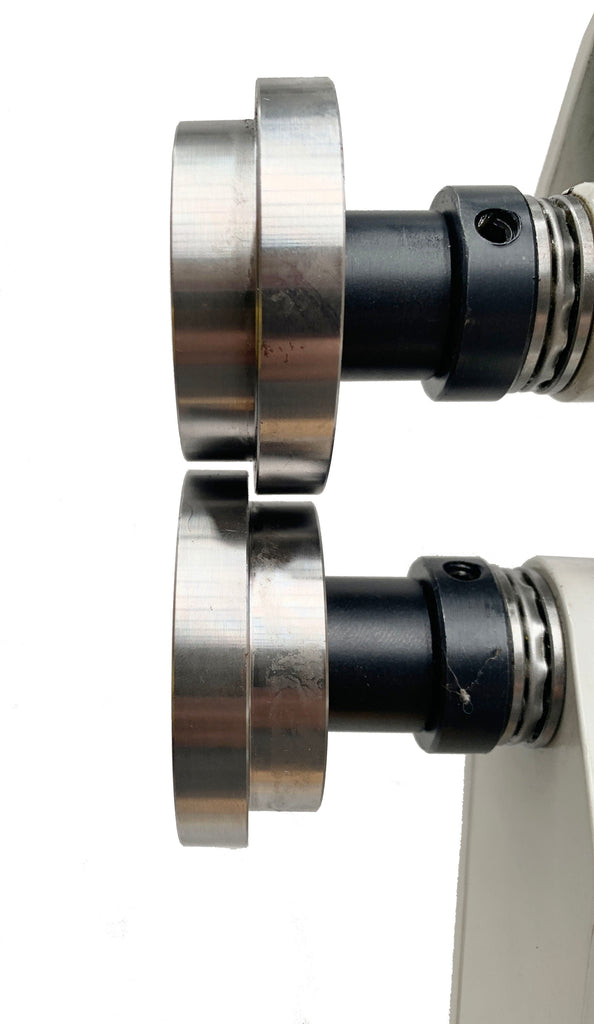

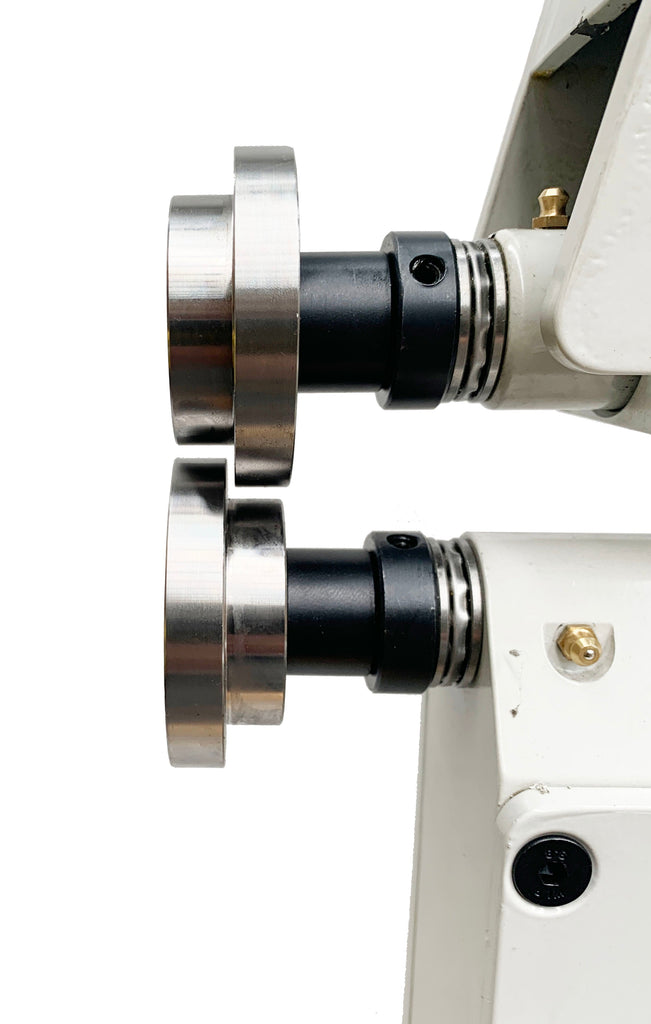

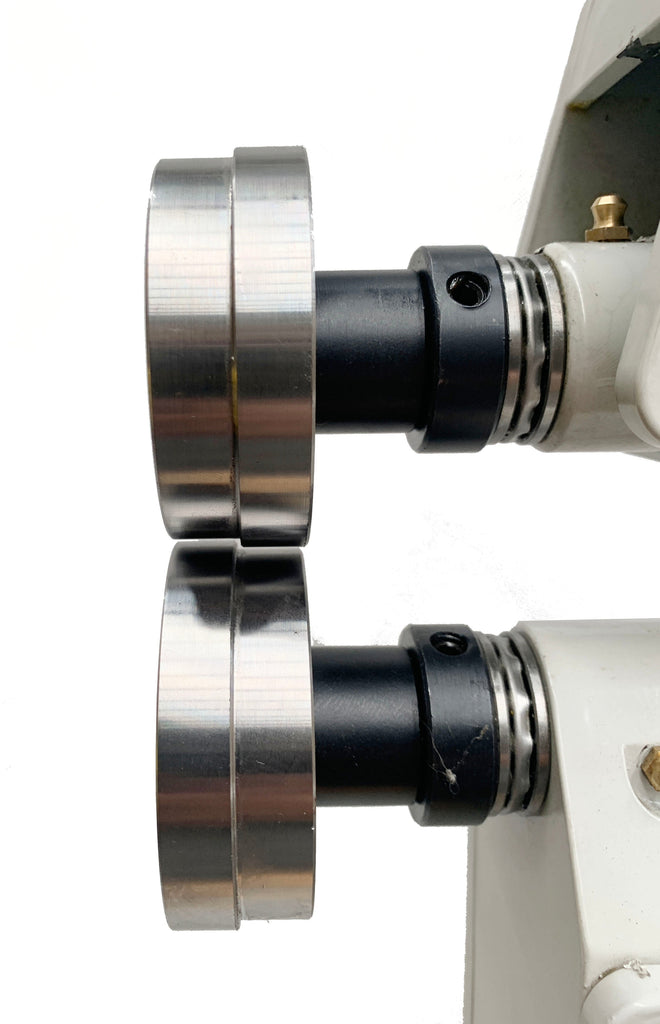

  •   All rollers are hardened, and keyway mounted

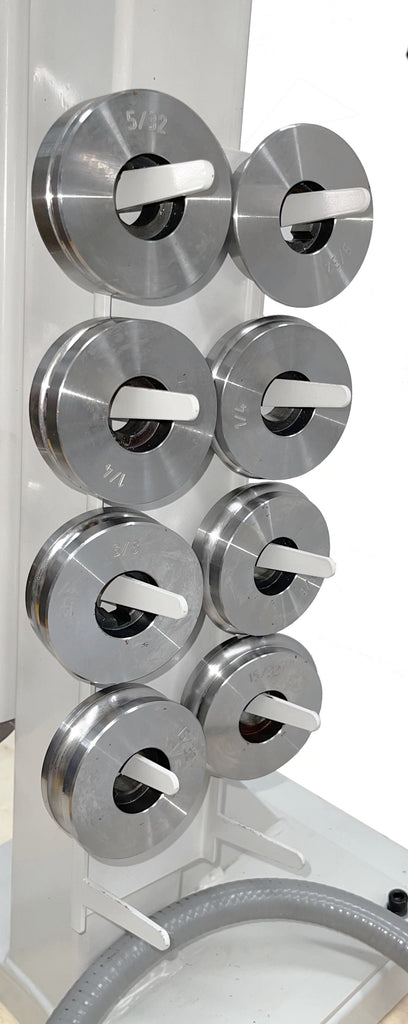

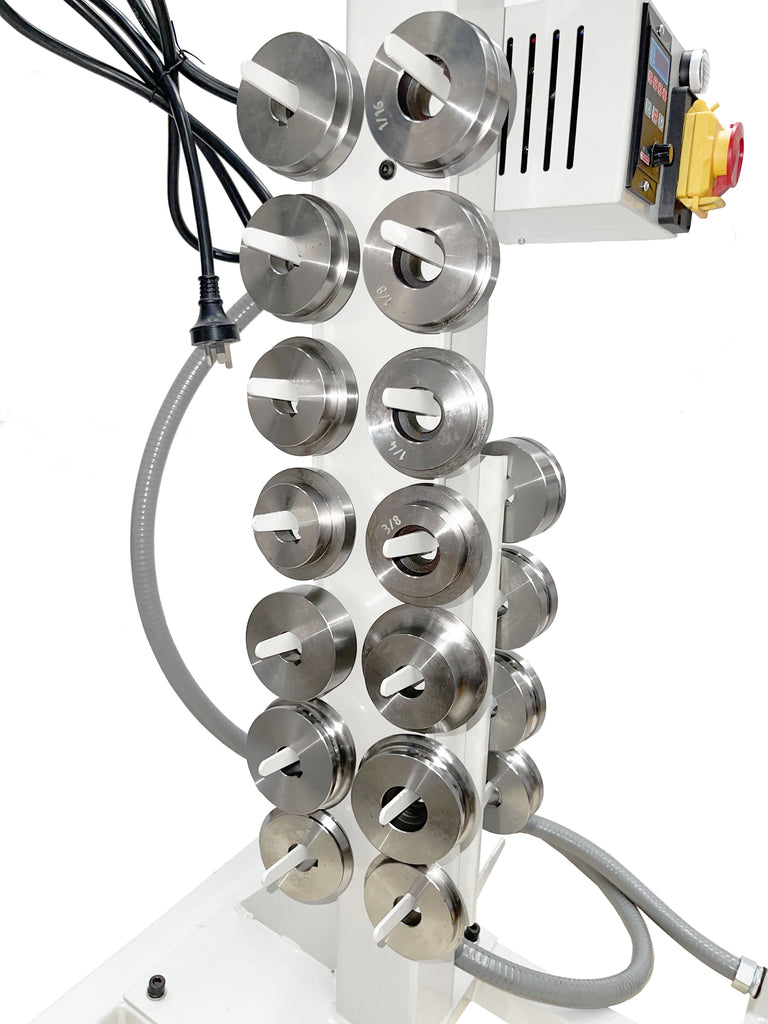

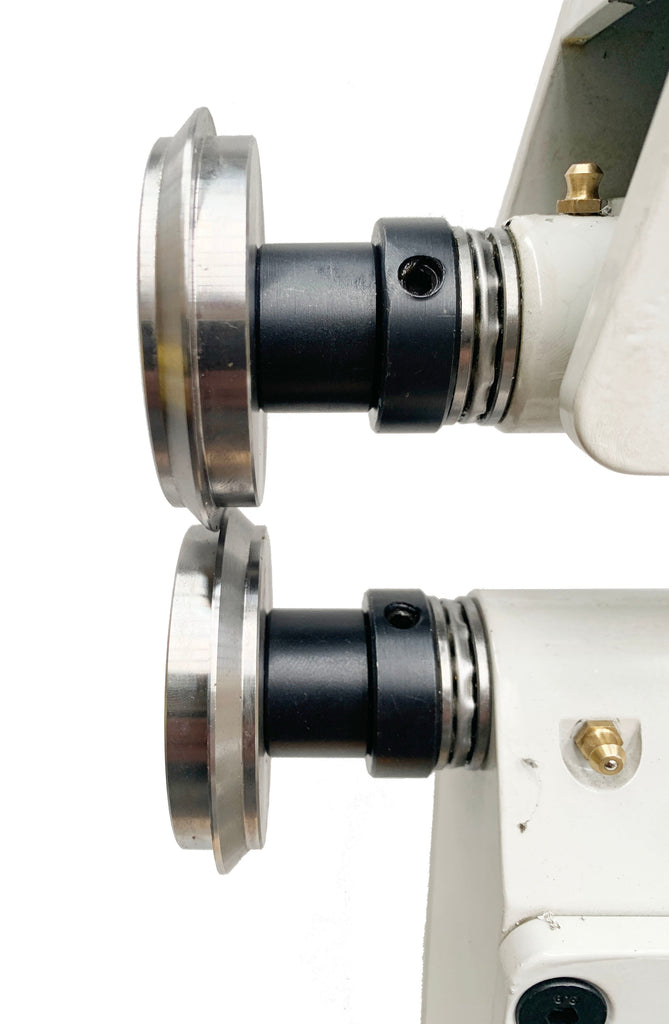

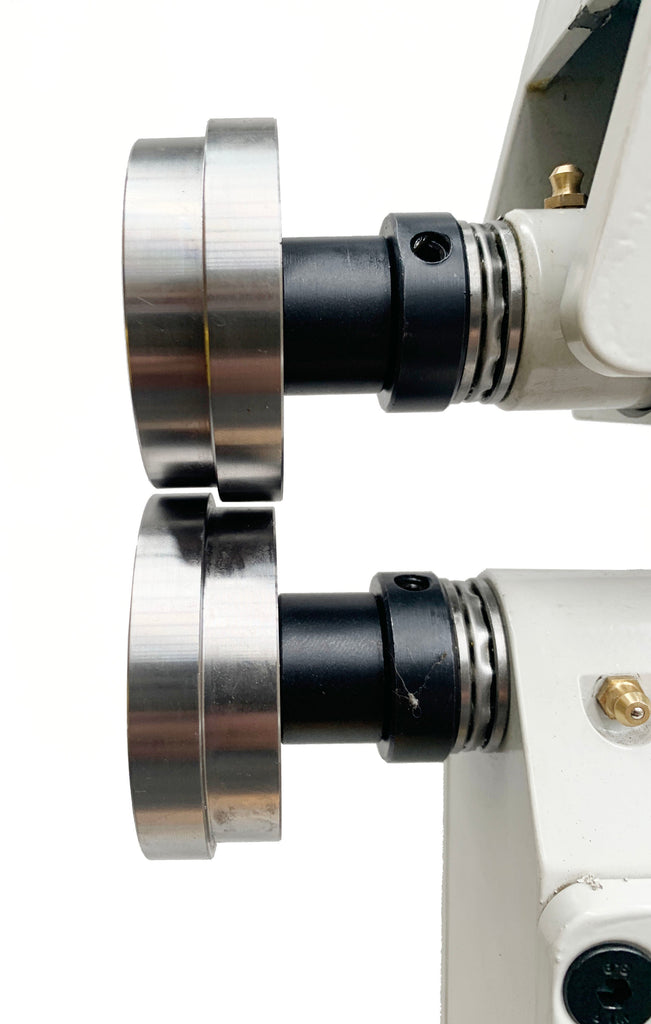

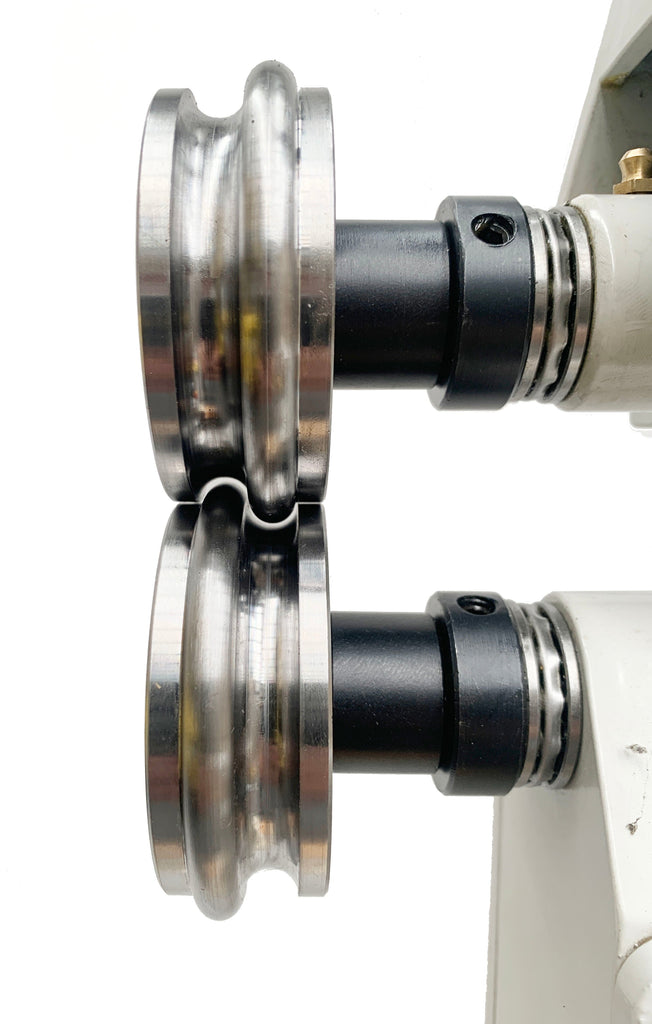

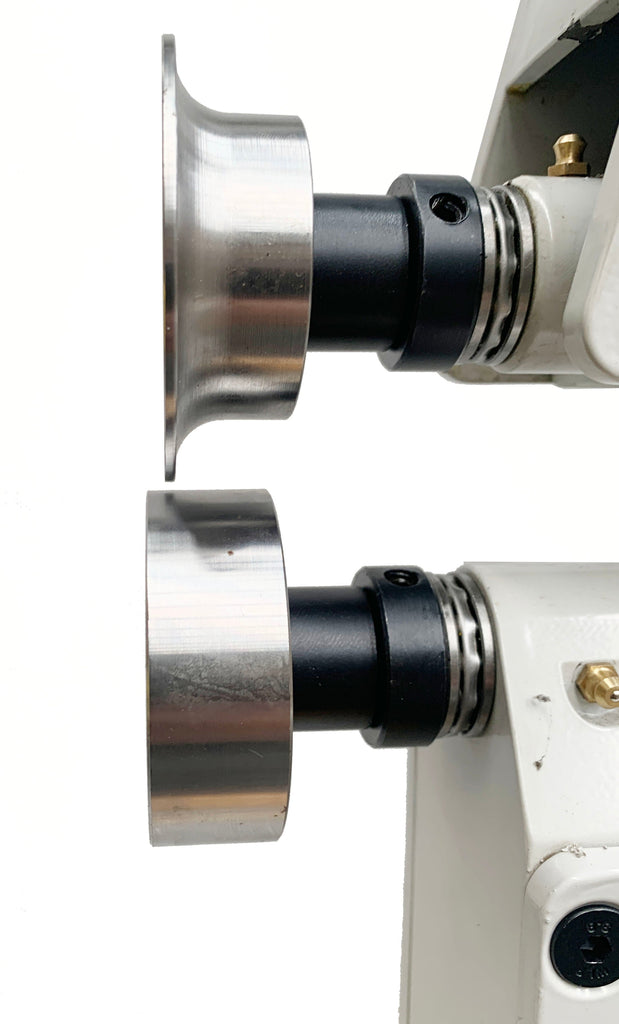

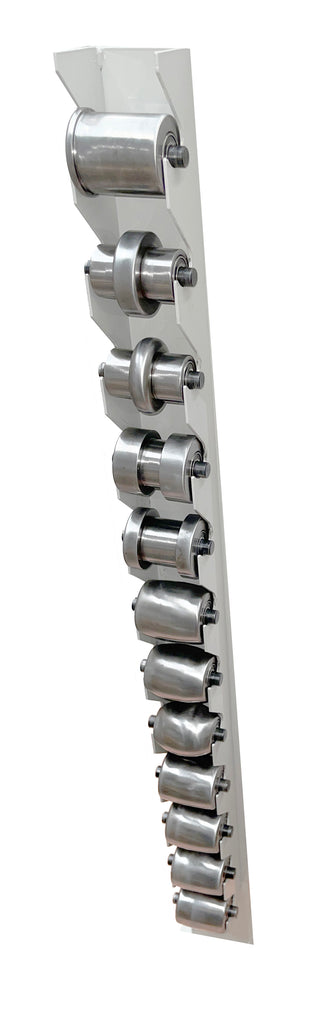

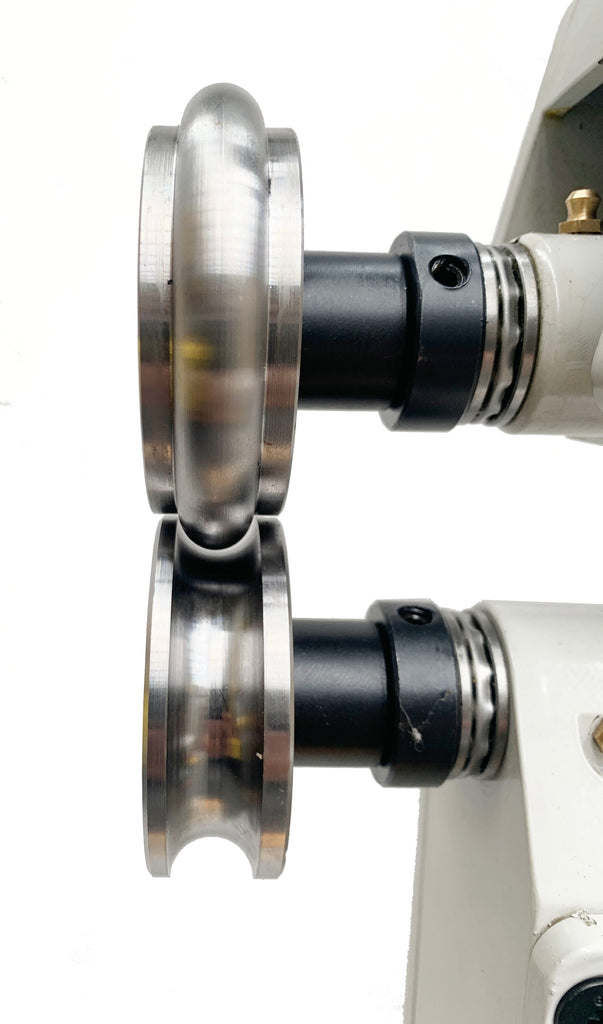

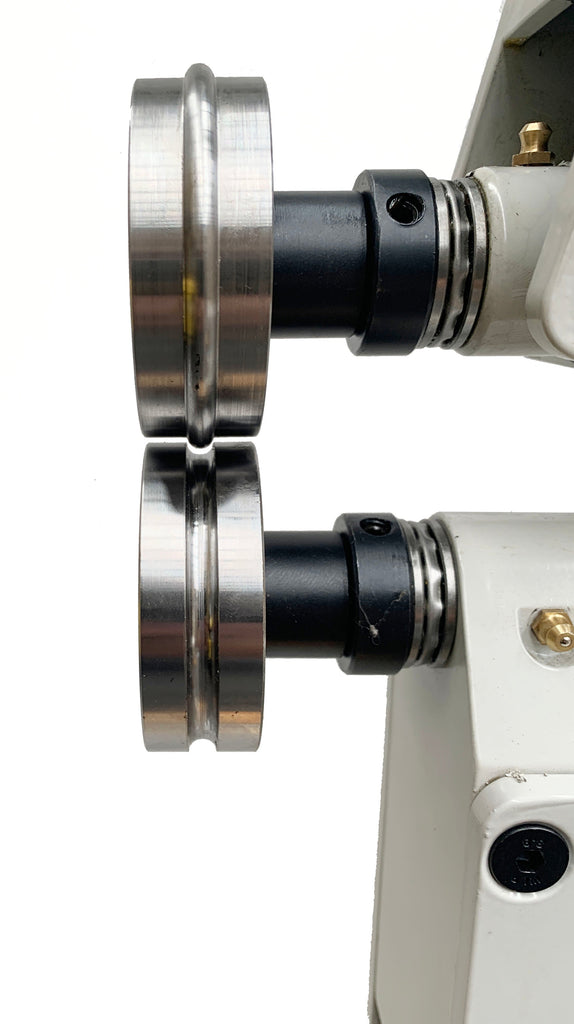

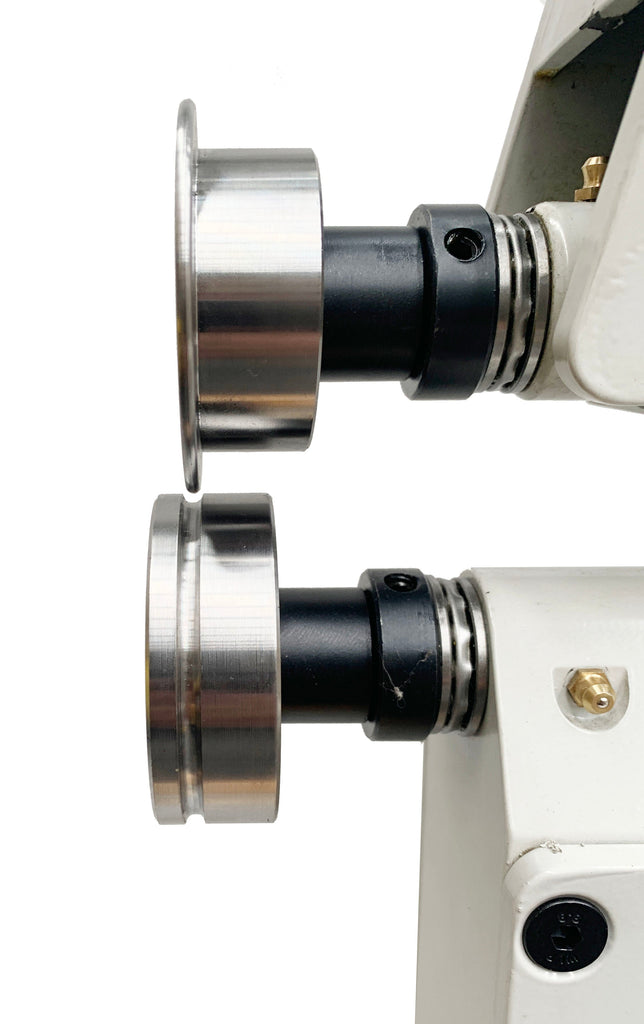

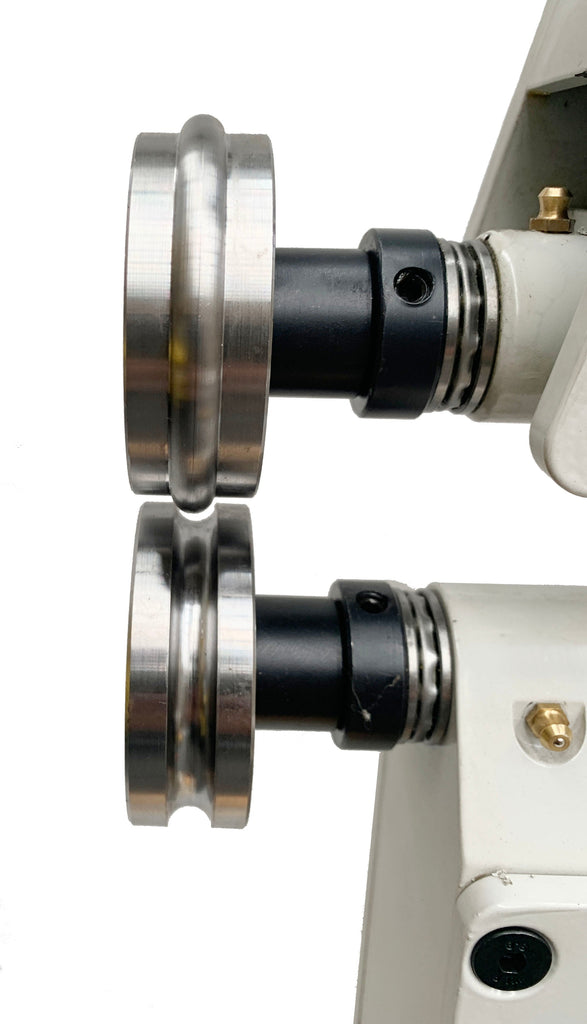

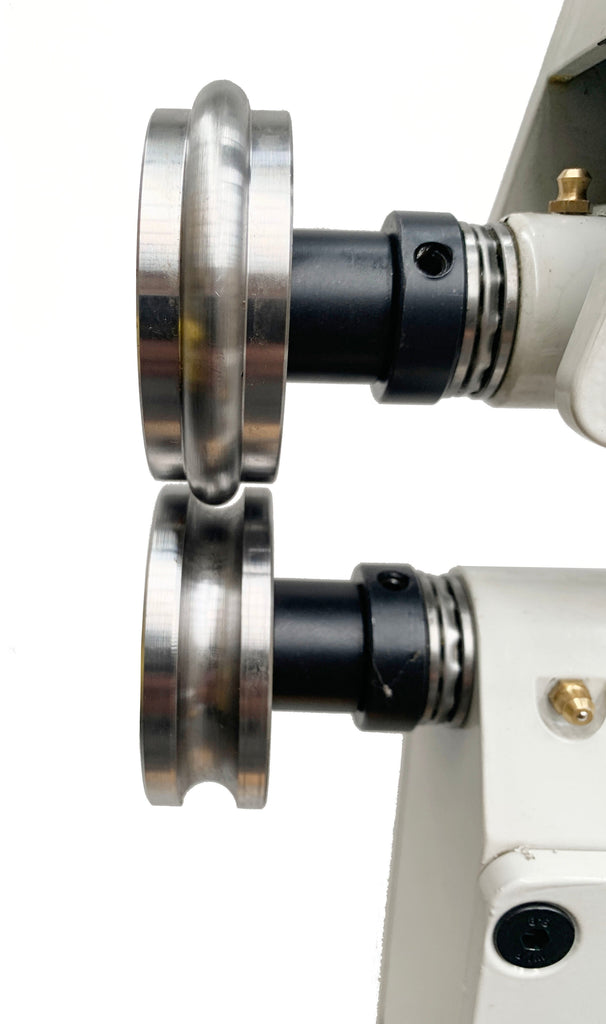

  •   Include 12 sets rollers as standard
  •   Two roller wheels are fitted on the base for easily moving the machine
  •   Include material stop fence & worktable for long workpiece
