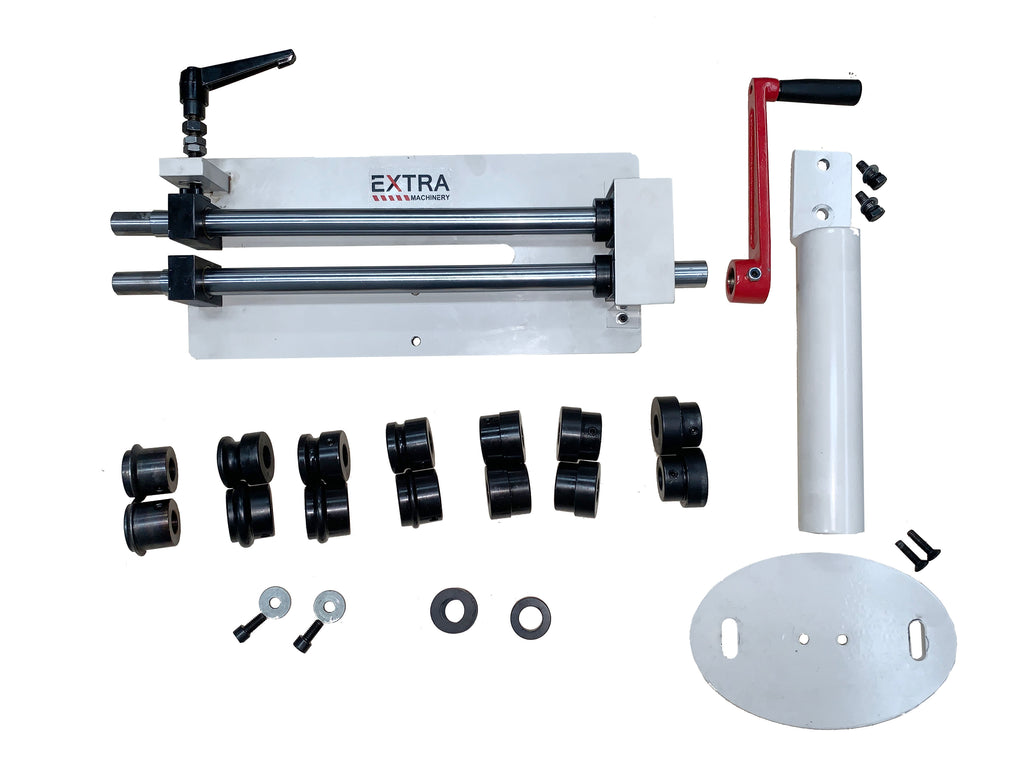

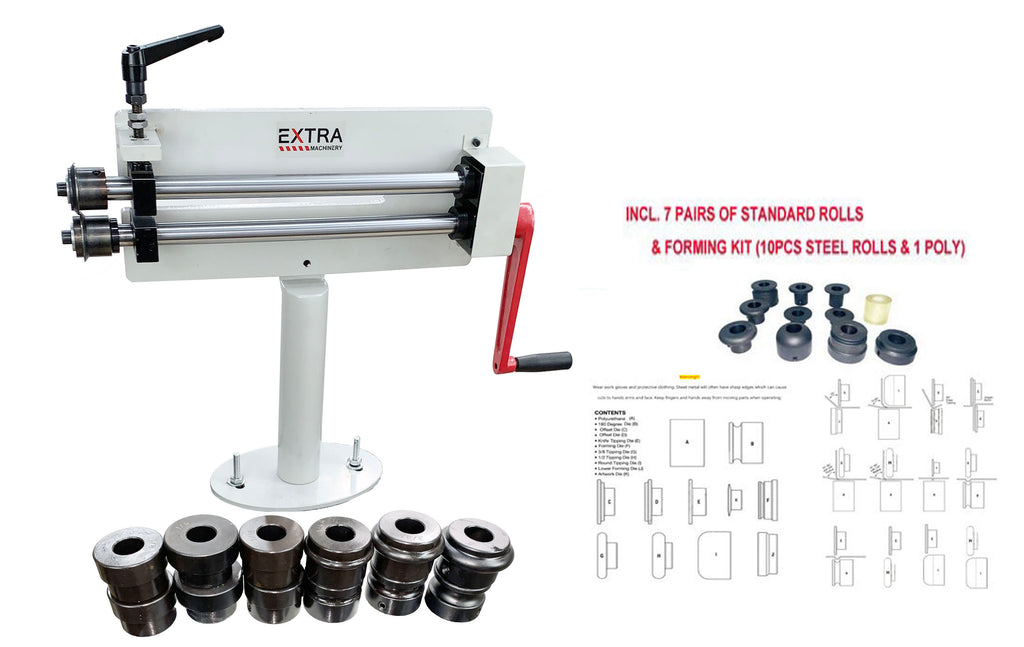

Package MB-360 Manual Bead Roller 1.2mm Capacity 355mm Throat With Forming Kits

Extra Machinery Pty Ltd

SKU: S6331-DL

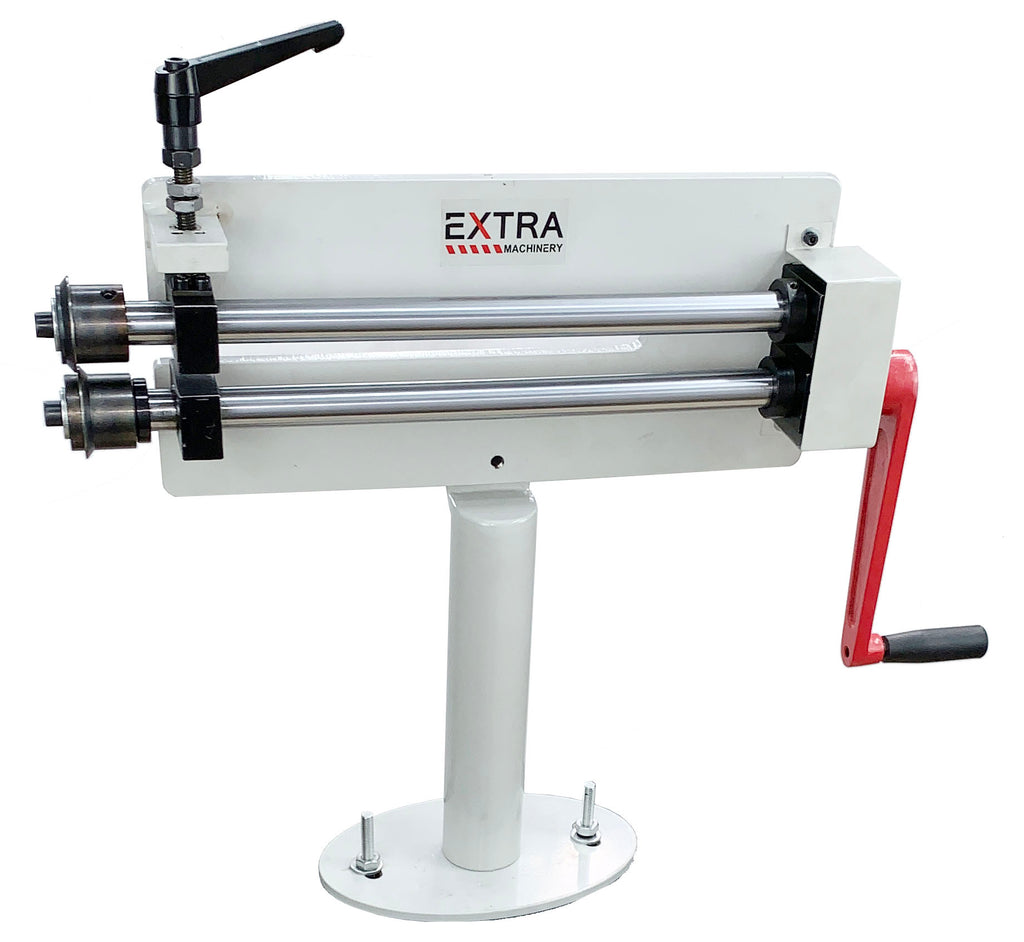

This bead roller is manually gear driven by a hand crank that drives both the bottom and top bead rolls simultaneously. The 25mm drive-shafts are supported in quality bronze bearing bushes that are self-lubricated, no need of any grease

  • 1.2mm mild steel capacity for bead & flange rolls
  • 1.0mm mild steel capacity for shearing rolls
  • Heavy duty steel construction, 14mm thick steel frame.
  • Post & base for bench mounting.
  • Ø25mm drive shafts
  • Ø22mm spigot for mounting rollers
  • Gear driven system

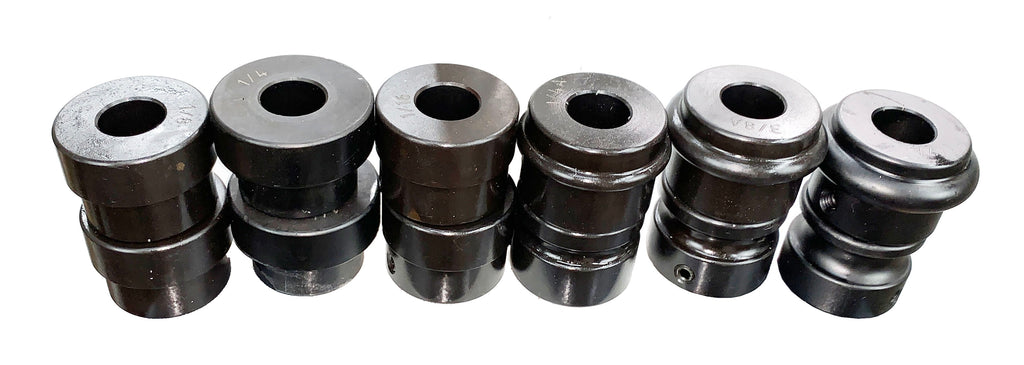

  • 7 Sets of rolls with Ø22mm bore:
  • 1/4" (6.35mm) single bead roll set
  • 3/8" (9.5mm) single bead roll set
  • 1/2" (12.7mm) single bead roll set
  • 1/16" (1.6mm) flange roll set
  • 1/8" (3.2mm) flange roll set
  • 1/4" (6.35mm) flange roll set

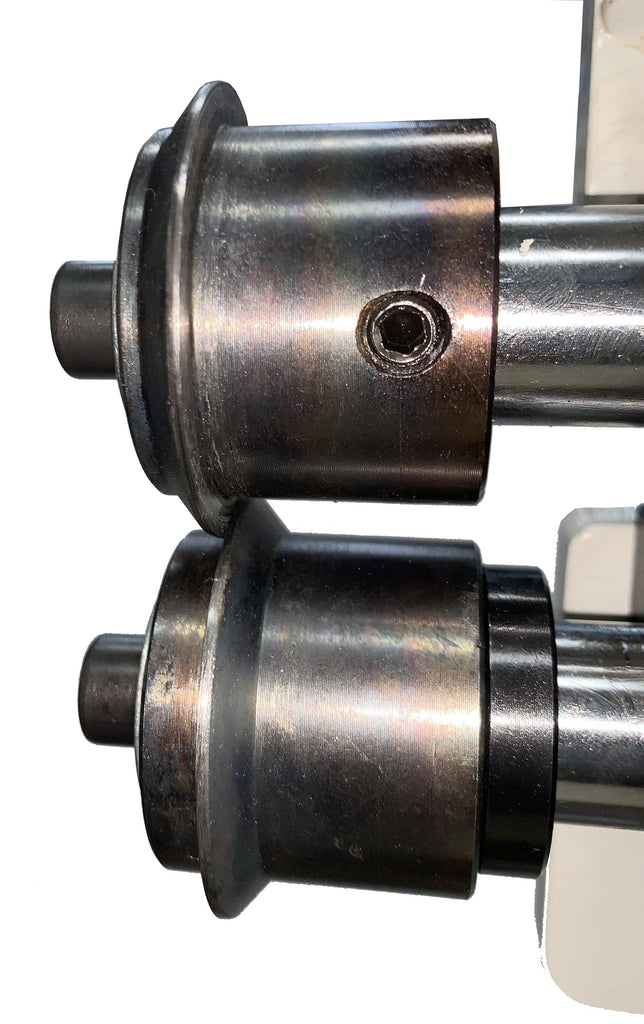

  • Shearing roll set

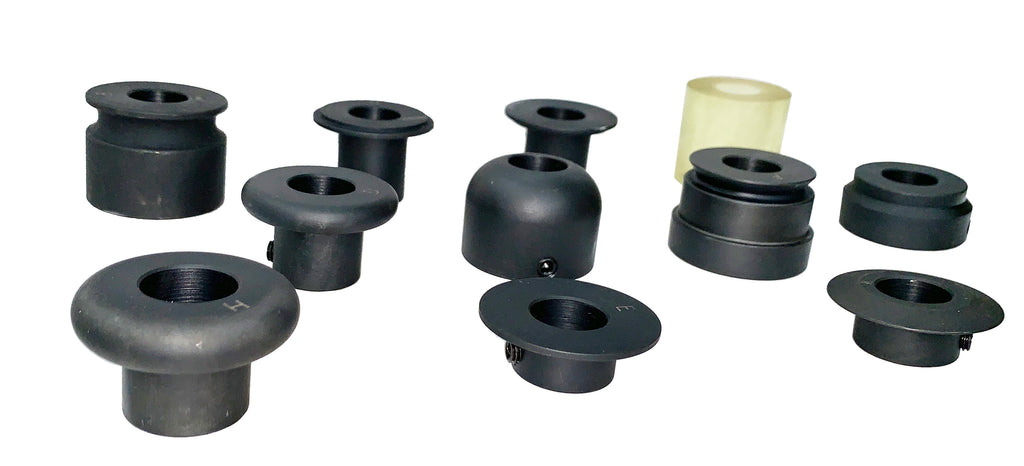

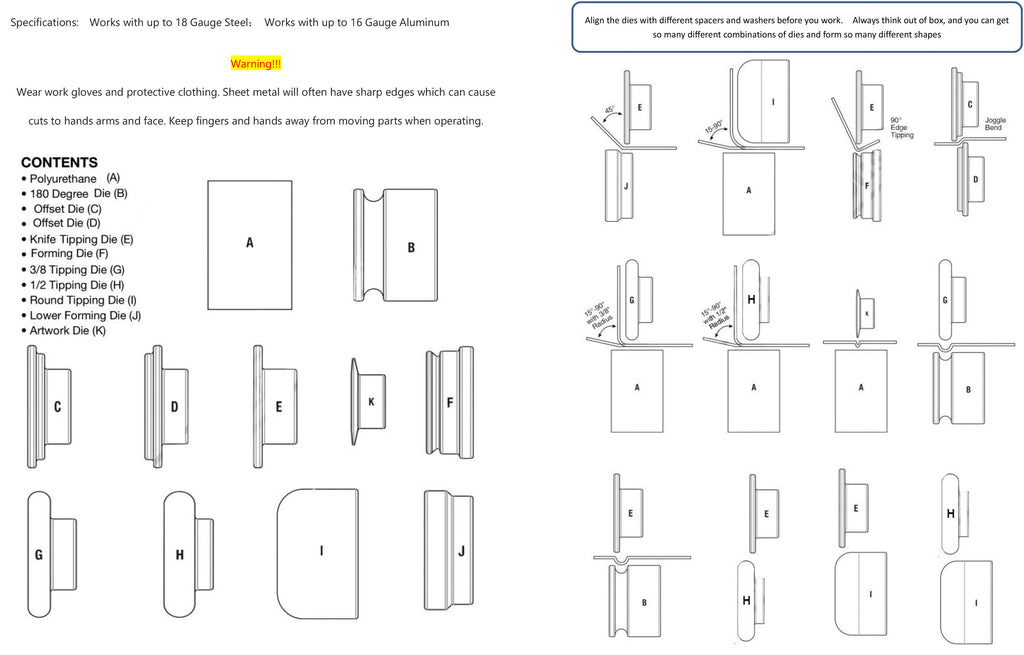

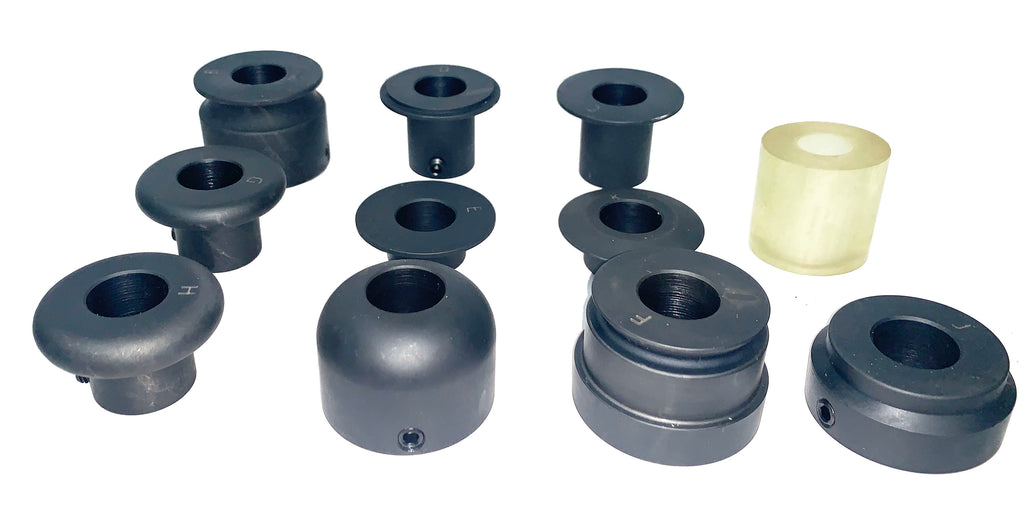

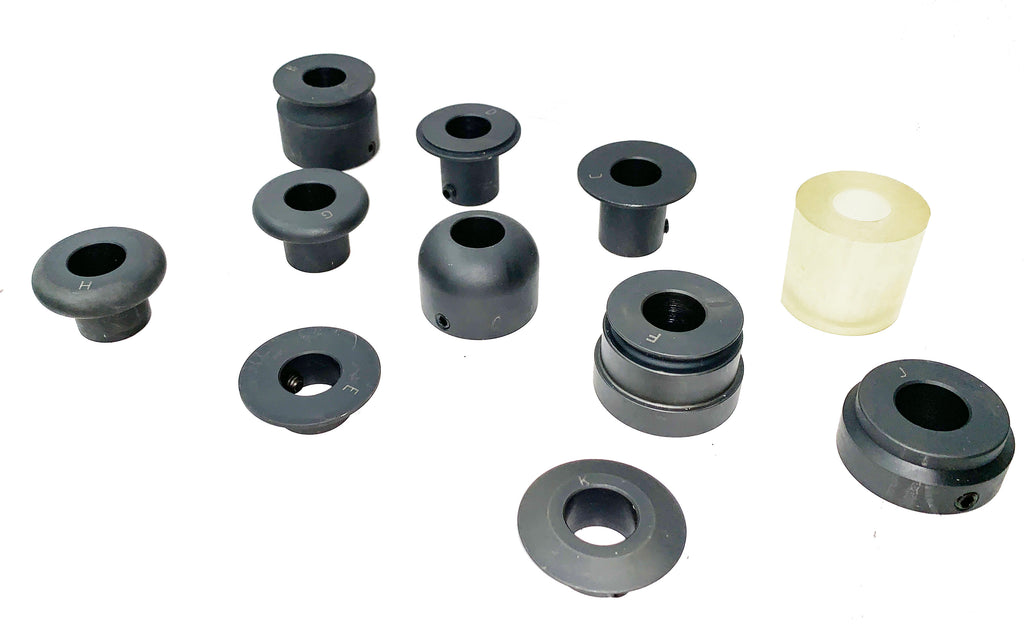

Features of Forming Kit (10pcs Steel Roll & 1 Poly)

  • With these dies you can create offset flanges, contours,
  • deep channels, and style lines. This kit also includes a polyurethane lower wheel,which can be used with a variety of upper dies.
  • 10 x dies made from steel & Hardened up to 40 HRC,  black oxide coating to avoid rust and for long life.
  • 1 x roller made from polyurethane


  • 1 x Inside offset die
  • 1 x Outside offset die
  • 1 x knife edge tipping die
  • 1 x Lower edge forming die
  • 1 x 3/8" tipping die
  • 1 x 1/2" tipping die
  • 1 x Round tipping die
  • 1 x lower forming die
  • 1 x 180 degree lower die
  • 1 x Artwork die
  • 1 x Polyurethane lower die
