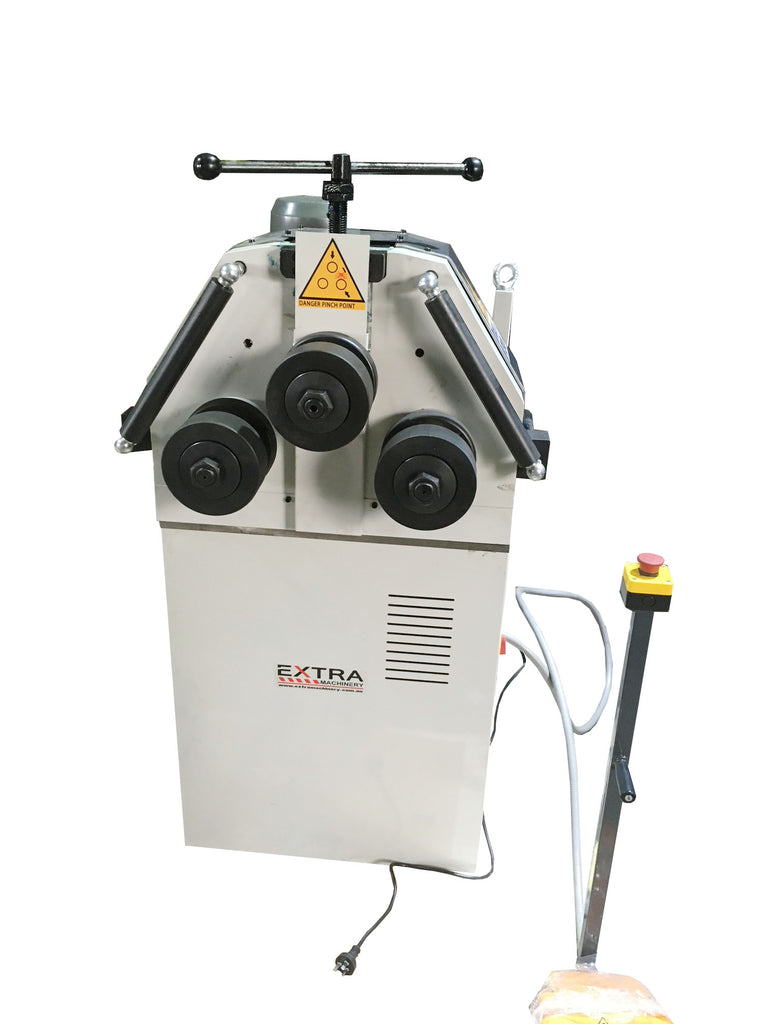

HK-45 Section & Pipe Bending Machine
HK-45- Section & Pipe Bending Machine

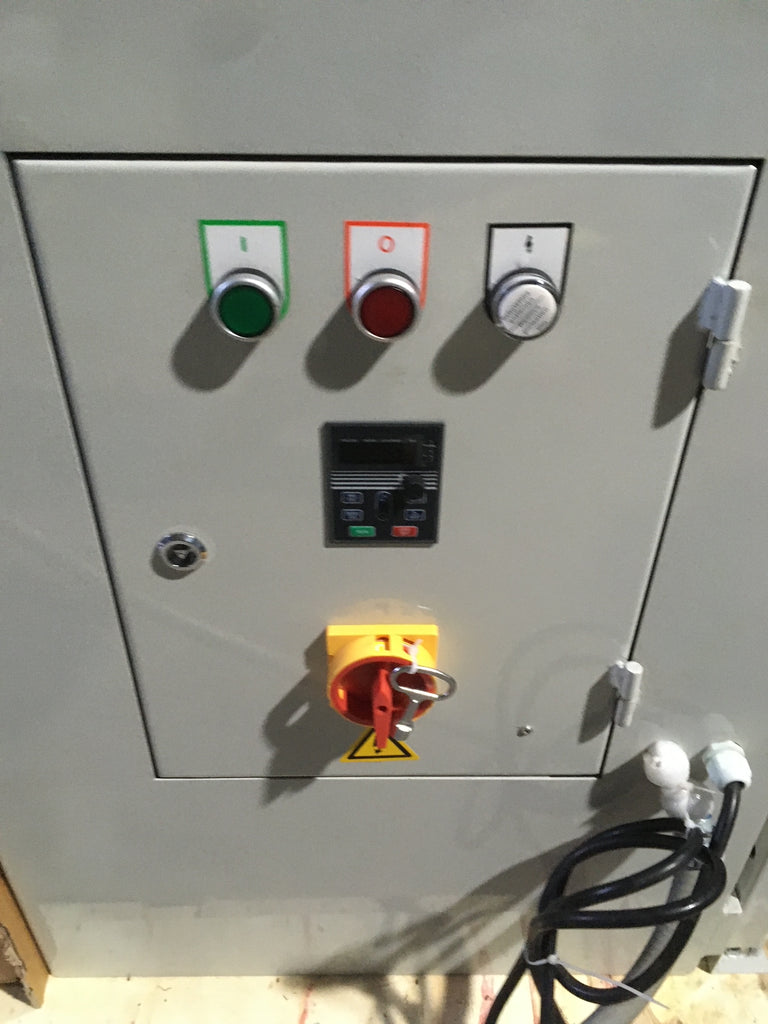

240V-50HZ, Single Phase, 10Amp Plug, Variable speed control
Features
- Rolls are hardened
- Two rollers drive for better drive power
- 50mm hardened and ground shafts
-
Manual bending roller moves up/down
- Use in horizontal or vertical working station

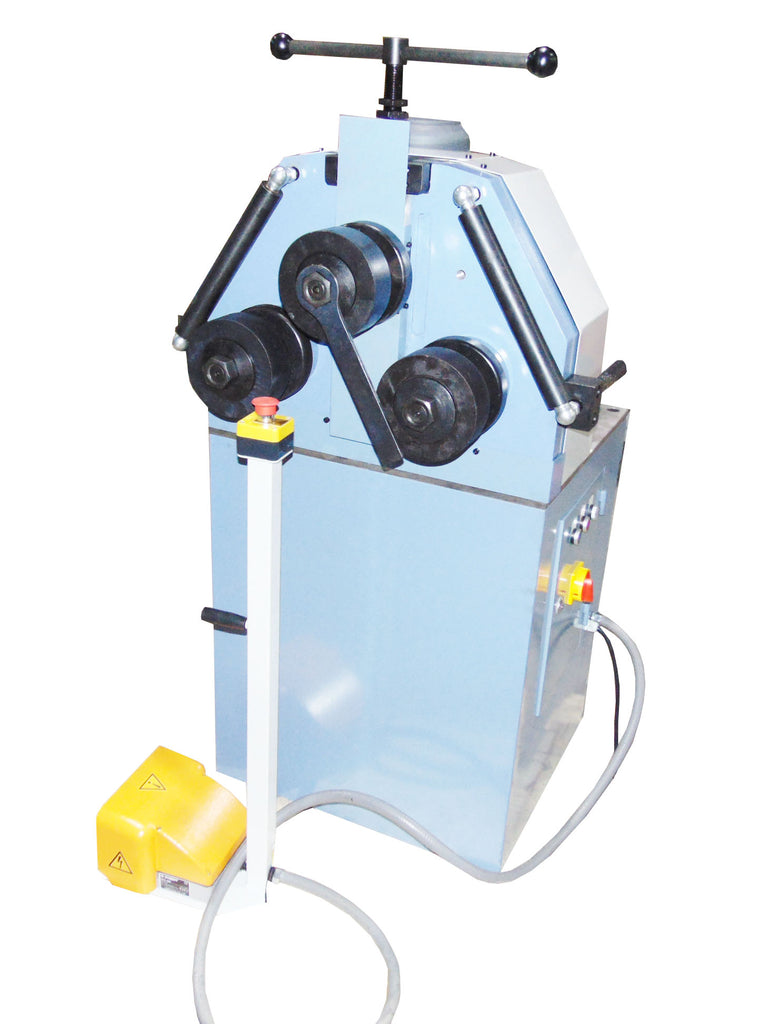

- Foot pedal control with emergency stop

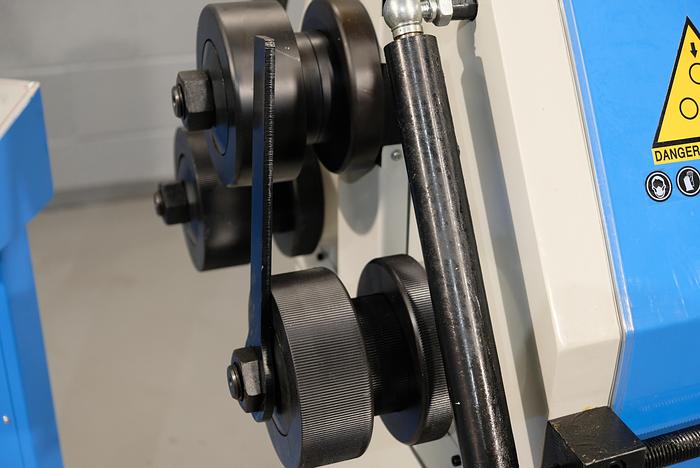

- Adjustable Side Guiding Rollers
- Gear driven by motor & gear reduction box
- Standard rolls and guiding rolls are included
- Set of standard rolls for bending various kinds of profiles
-

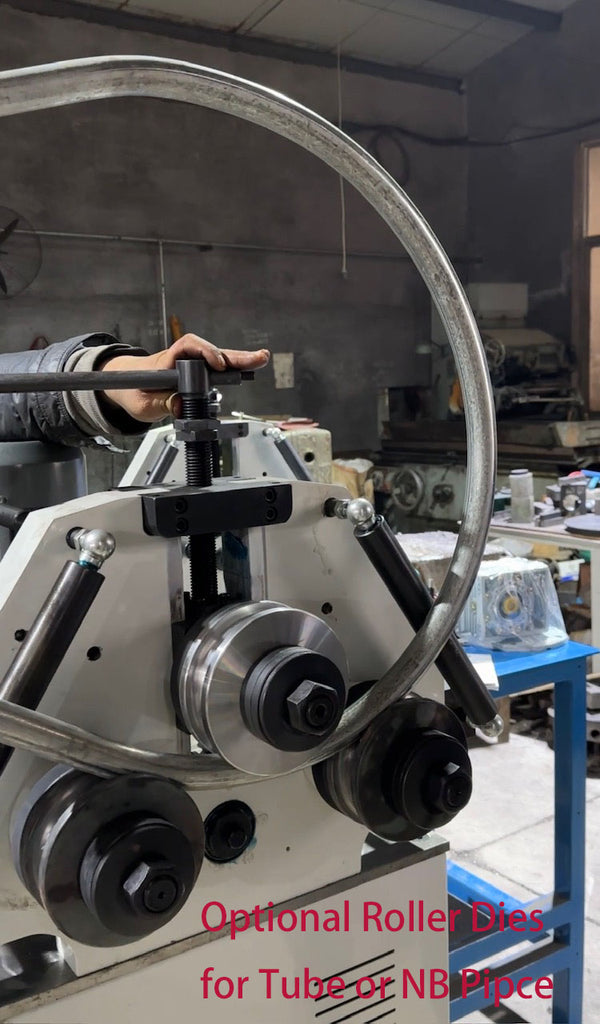

Special rolls for tube and NB pipe are available for option.
NB 25 (33.70mm OD), NB 32 (42.40mm OD), NB 40 （48.30mm OD)
NB 50 (60.03mm OD)
TUBE 31.70mm OD, TUBE 51.0mm OD - * means need special roller dies
| MODEL | HK-45 |
|---|---|
| Driven Rolls | 2 |
| Top Bending Roll Adjustment Type | Manual |
| Roll Diameter | 155mm |
| Flat Bar Edging Capacity (mm)- MS (size / Ø) | 60 x 10mm / 500mm |
| Flat Bar Capacity (mm) - MS (size / Ø) | 100 x 15mm / 450mm |
| Square Bar Solid Capacity (- MS (size / Ø) | 35 x 35mm / 900mm |
| Rectangle Tube Capacity - MS (size / Ø) | 50 x 40 x 3mm / 1200mm* |
| Square Tube Capacity - MS (size / Ø) | 50 x 50 x 3mm / 1700mm* |
| Round Bar Solid Capacity - MS (size / Ø) | Ø35mm / 600mm* |
| Round Tube Capacity - MS (size / Ø) | Ø70 x 2mm / 1000mm* |
| Round Pipe Capacity - MS (size / Ø) | Ø2" x 2.9mm / 1000mm* |
| Angle Capacity - MS (size / Ø) | 50 x 50 x 5mm / 1000mm* |
| Motor Power | 1.5KW /2HP |
| Voltage/Frequency | 240V-50HZ |
| Dimensions (L x W x H) | 760 x 900 x 1550mm |
