Extra Machinery Pty Ltd

$275.00

SKU: W474

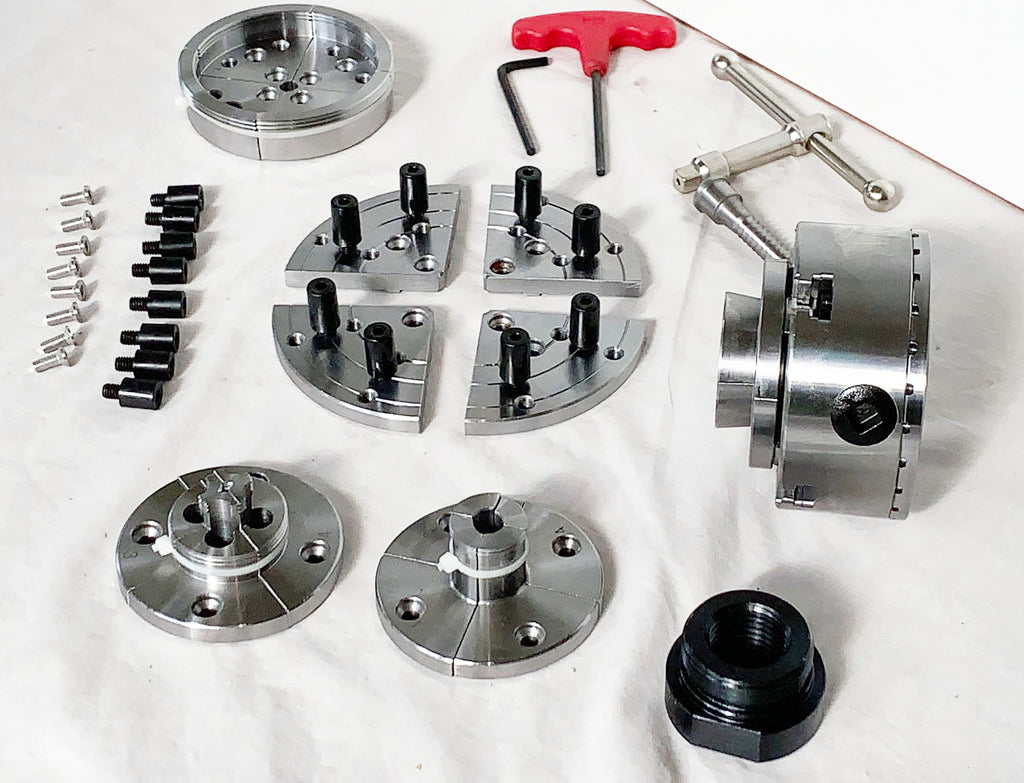

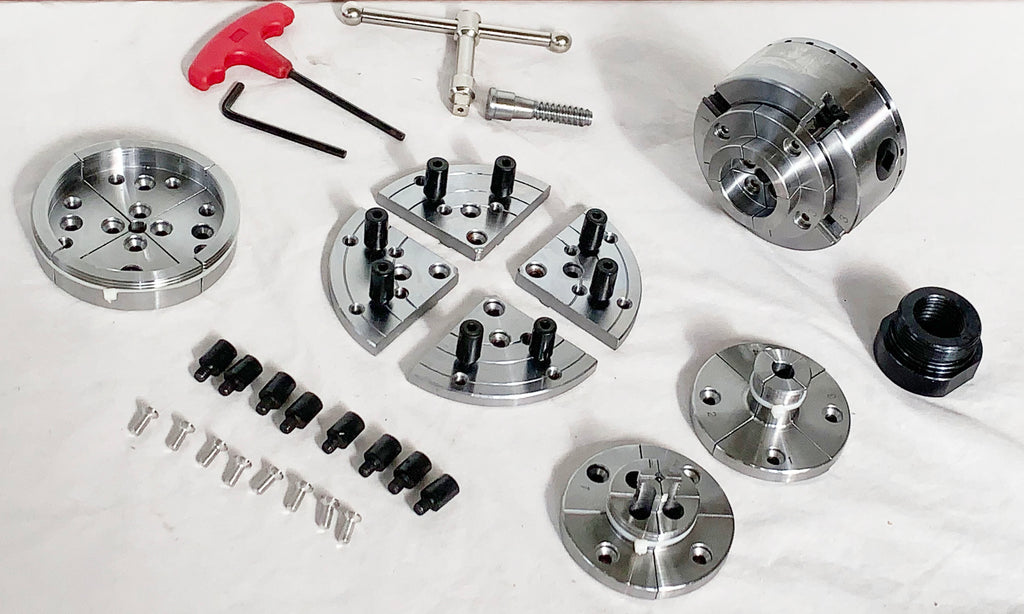

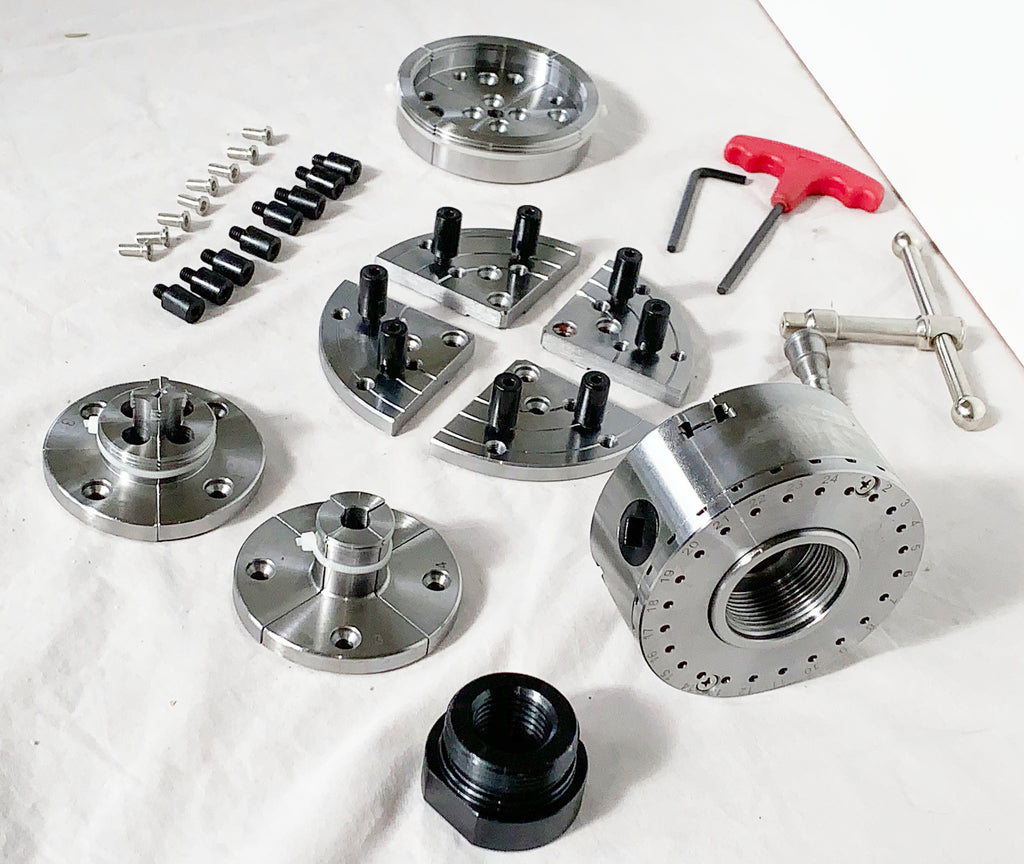

This deluxe wood chuck package includes a scroll chuck with various kinds of jaws to provide a variety of clamping needs for your wood turning projects.

Designed in Australia, High precision

4 Jaw self centering scroll chuck, all jaws move together

Grip Internally and externally

Supply one wood screw

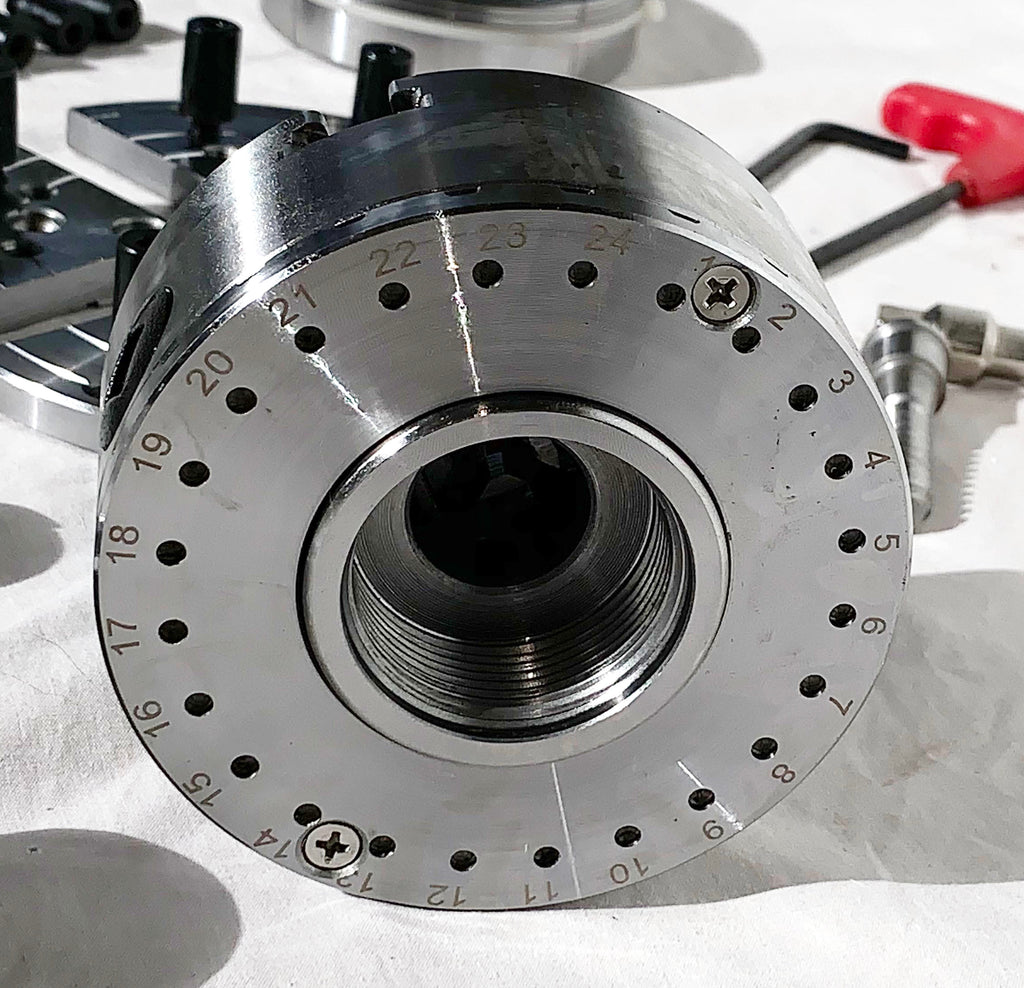

Indexing back plate

Thread to fit the insert is M40x2.0mm



Include insert M30X3.5

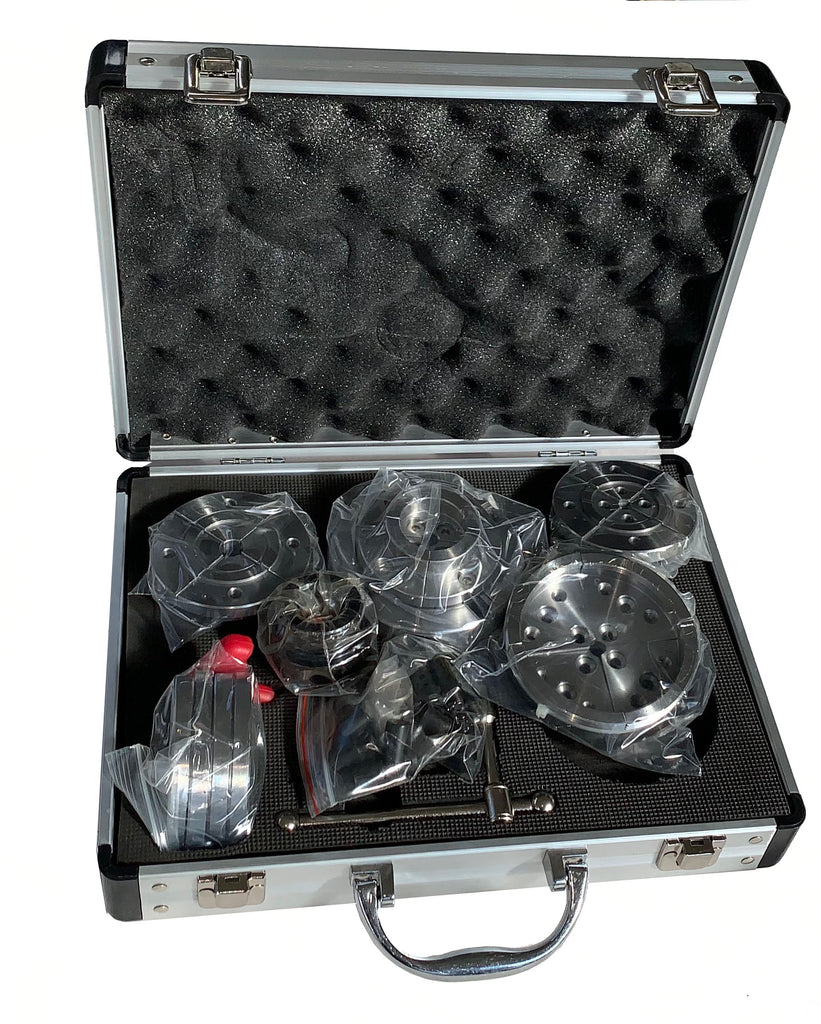

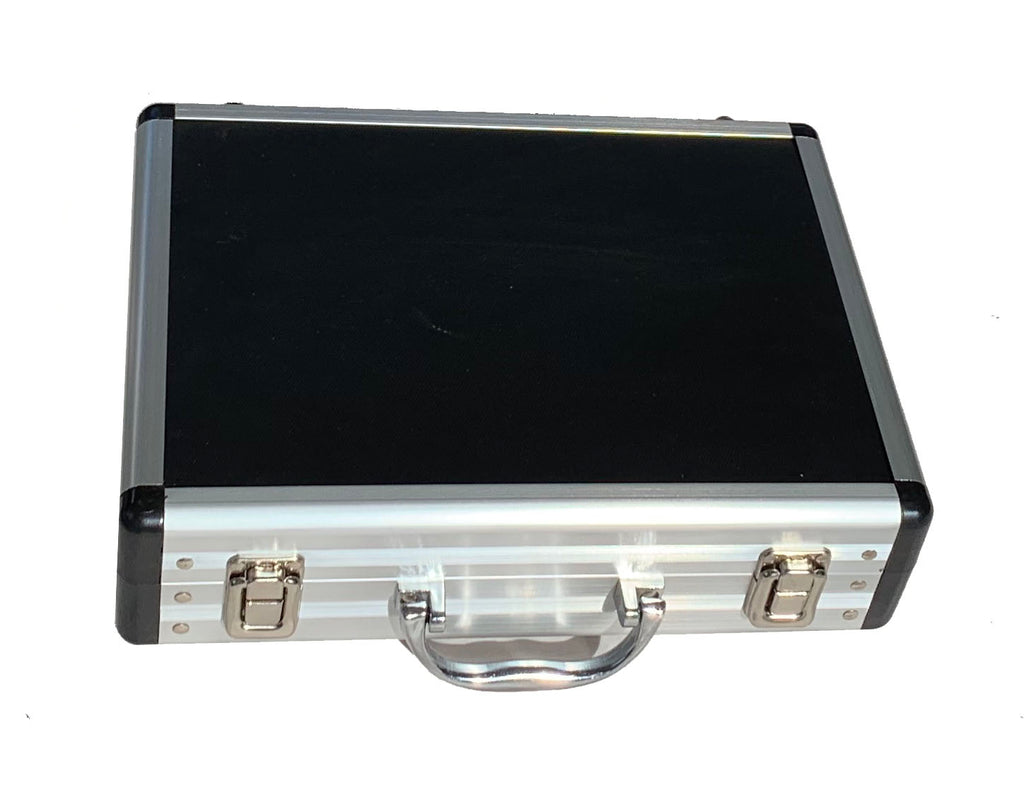

C/W  Aliminum Box

Chuck Body Diameter

3-3/4“

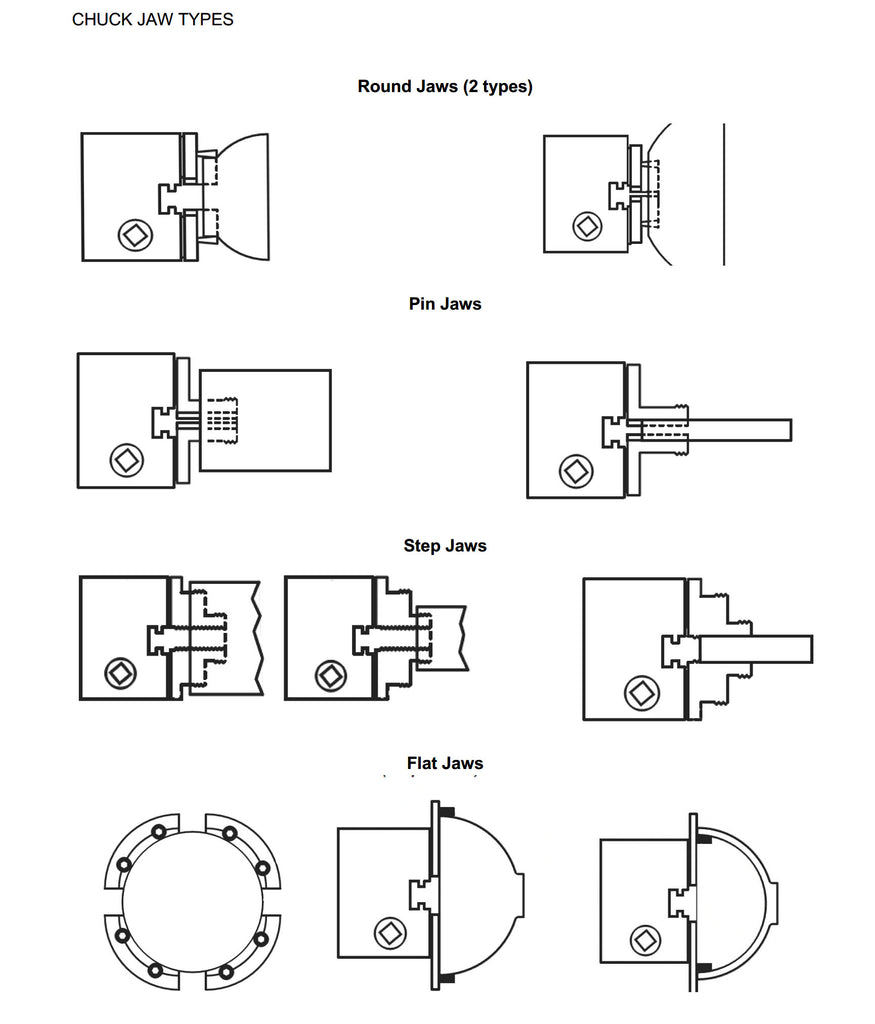

External Clamp Range



Step Jaws

3/32” - 1-3/8”

Round Jaws

1-1/4”  -  2-1/2”

Round Jaws

3” -  4-1/4”

Pin Jaws

3/8”  -  1-3/4”

Internal Clam Range



Step Jaws (Upper Step)

3/4”  -  2”

Step Jaws (Lower Step)

1-1/2”  -  2-7/8”

Round Jaws

1-3/4”  -  3-1/8”

Round Jaws

3-1/2”  -  4-7/8”

Pin Jaws

1”  -  2-3/8“

Flat Jaw Max O.D

5-1/8“

Flat Jaw Max I. D.

2-7/8”

Wood screw Required Hole

5/16” x 1-1/4”
