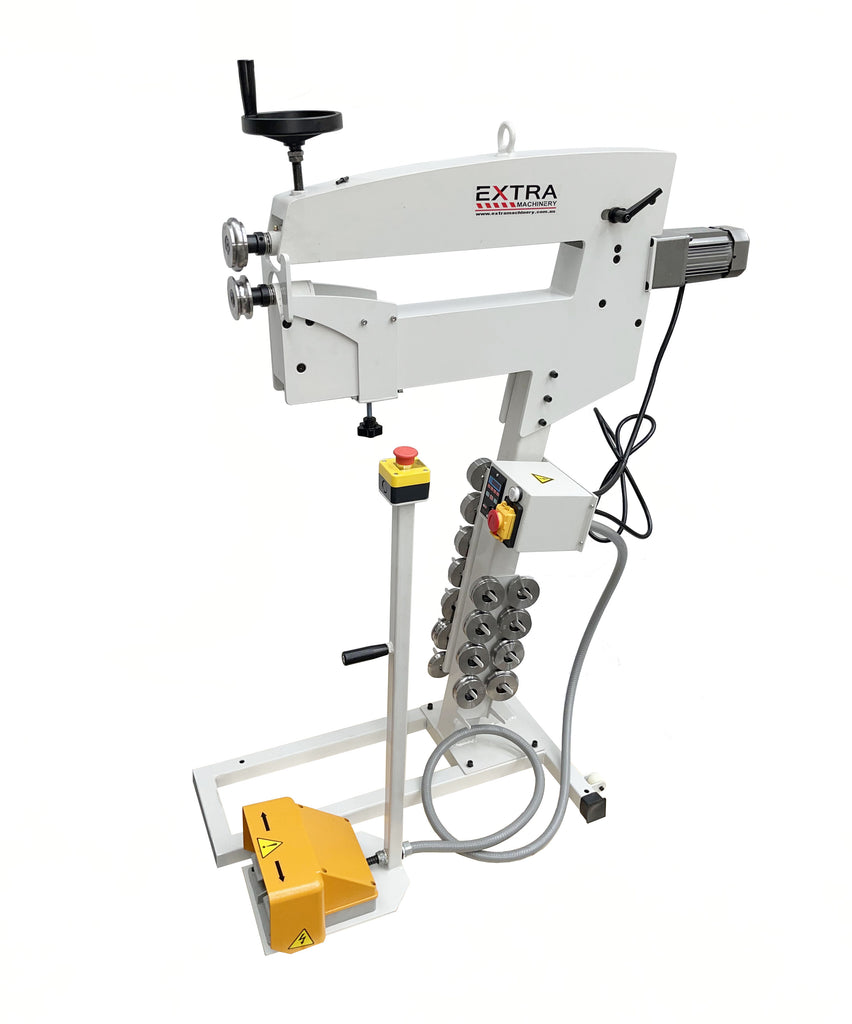

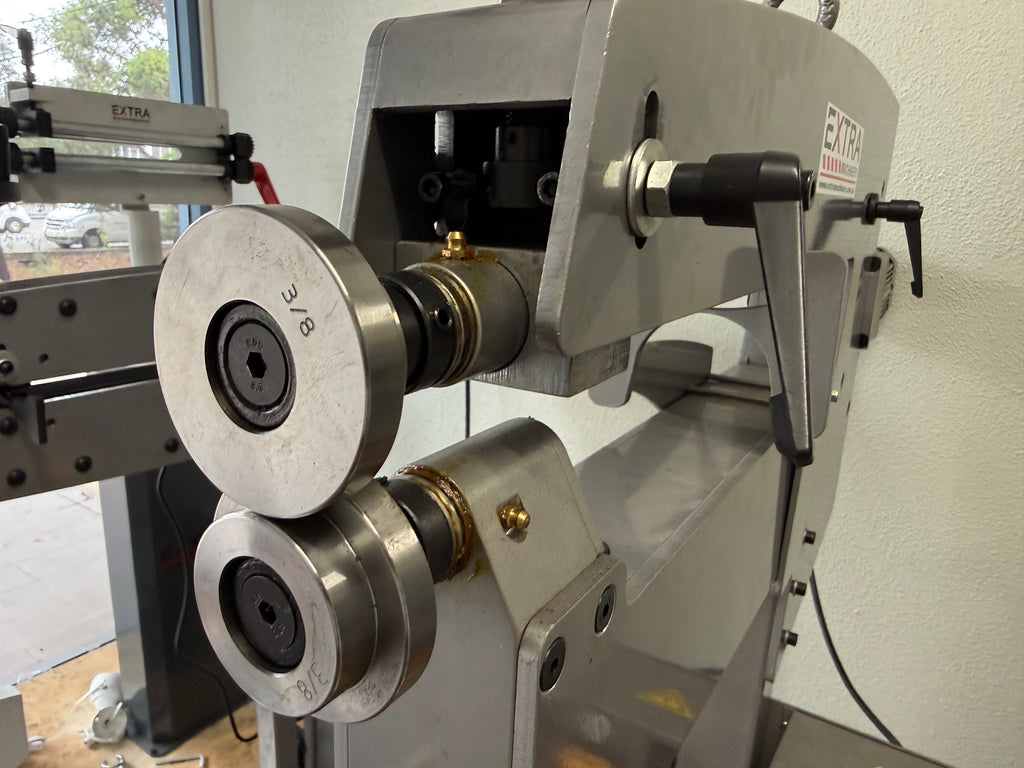

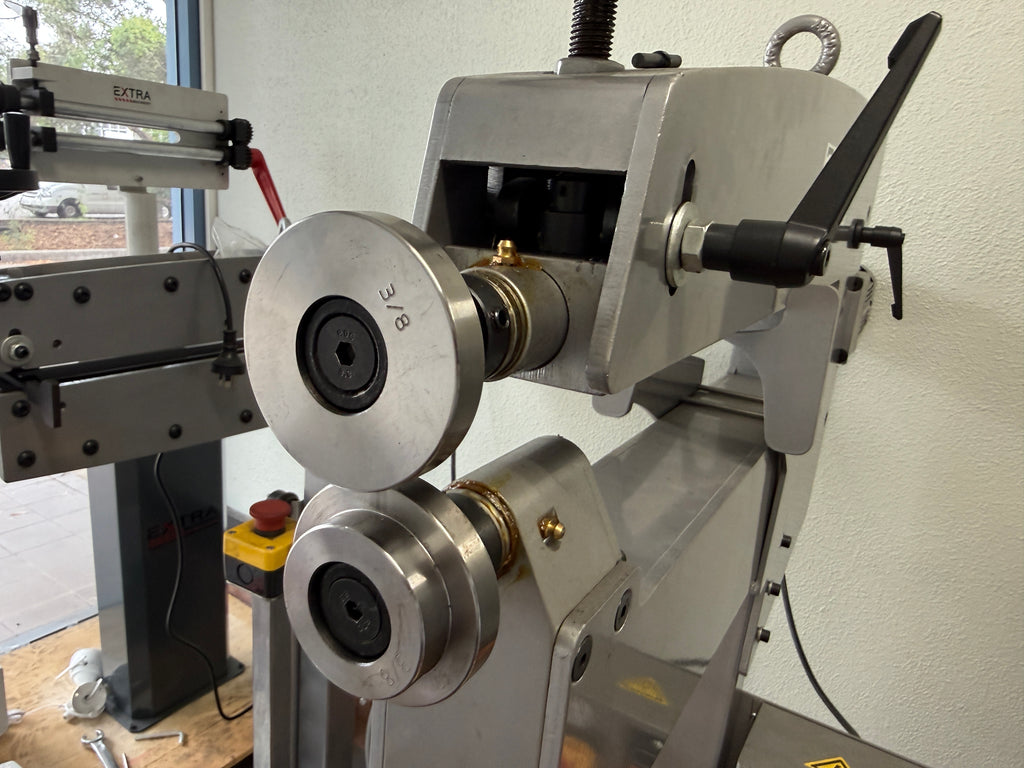

EB-610 Motorised Bead Roller 1.2mm Capacity 610mm Throat With Radius Roller Dies

Extra Machinery Pty Ltd

$1,200.00

SKU: EB610DR

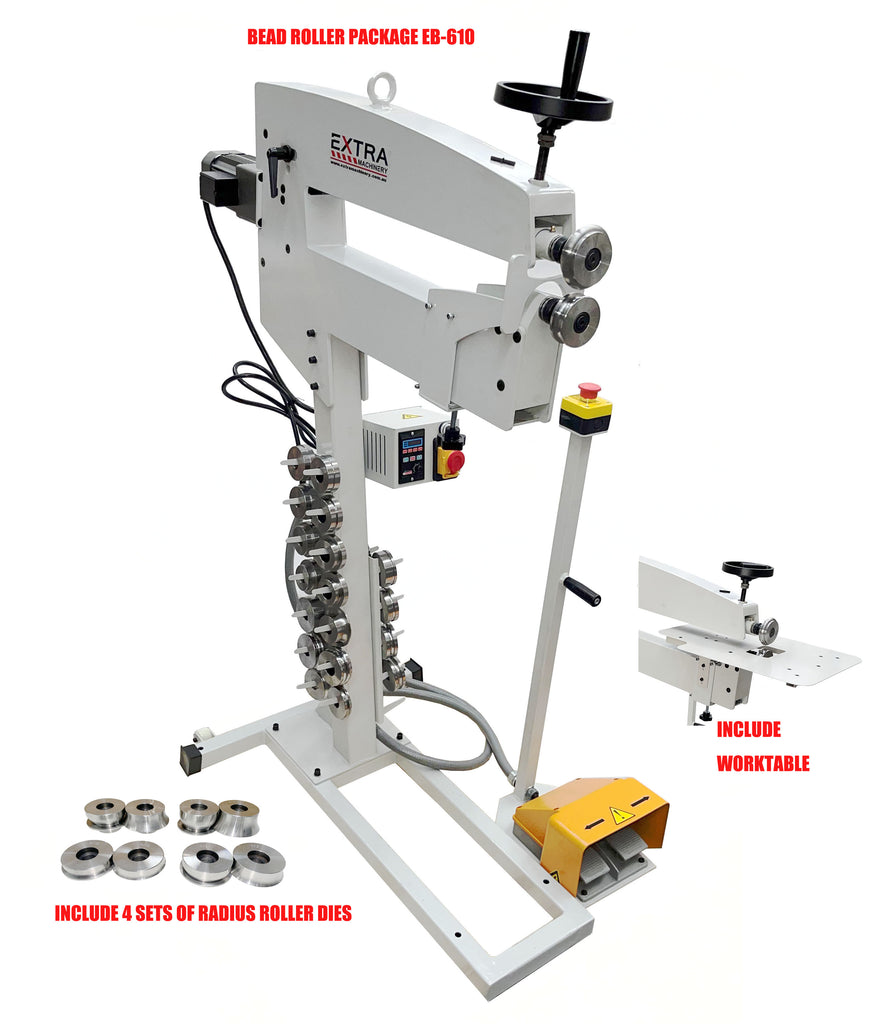

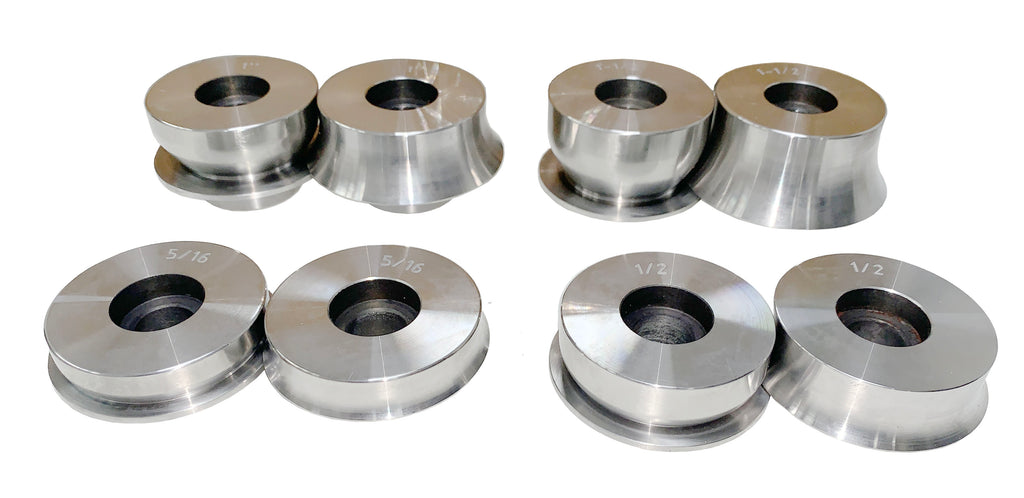

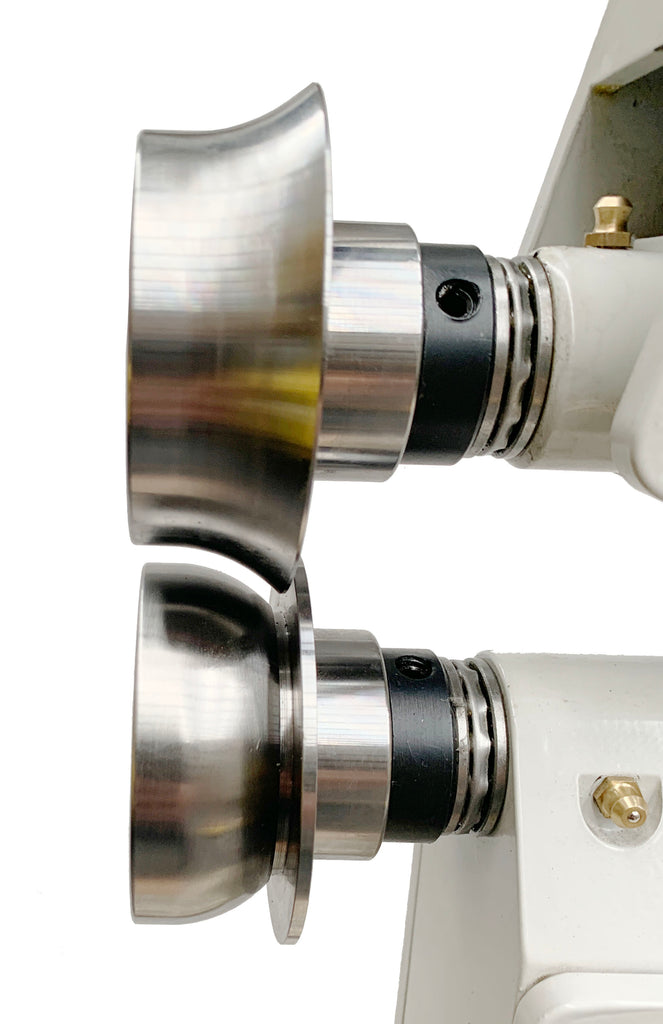

NEW PACKAGE INCLUDES 4 SETS OF RADIUS ROLLER DIES & WORK TABLE

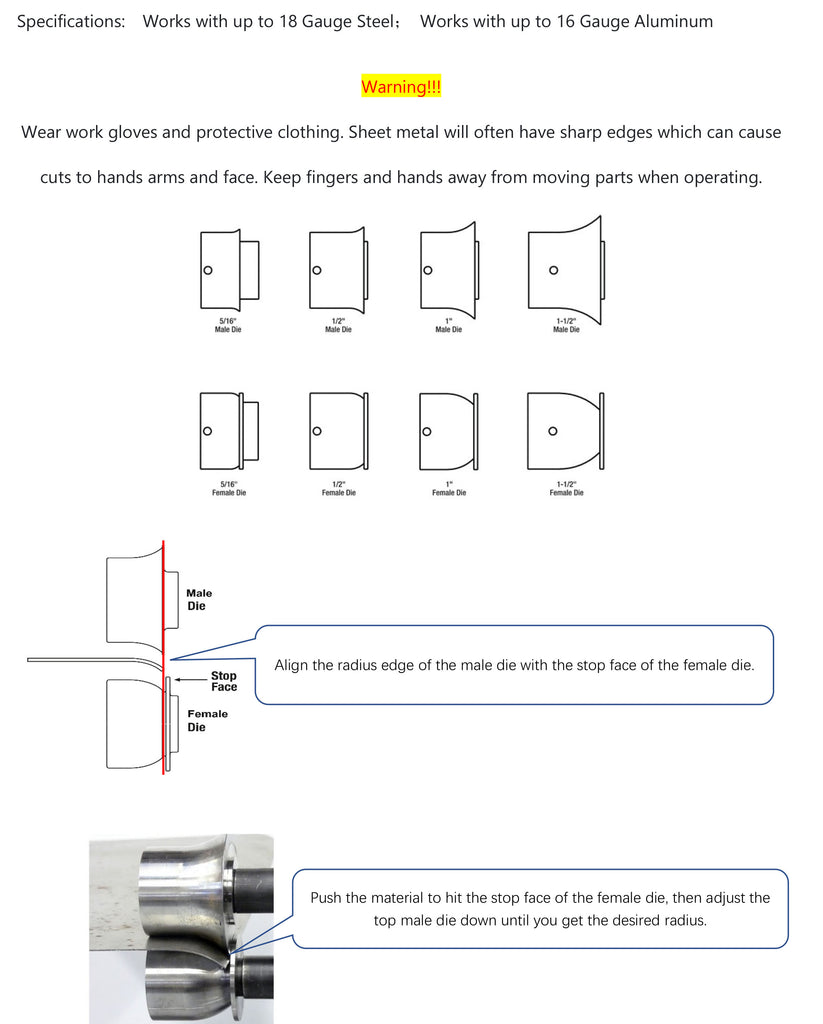

EB610 Bead Roller +F6332E Radius Dies

  • Maximum bending capacity 1.2mm mild steel
  •  610mm throat depth, and 1220mm panel can be  processed from roller centre
  •  Motorised roller shafts with gear reduction box

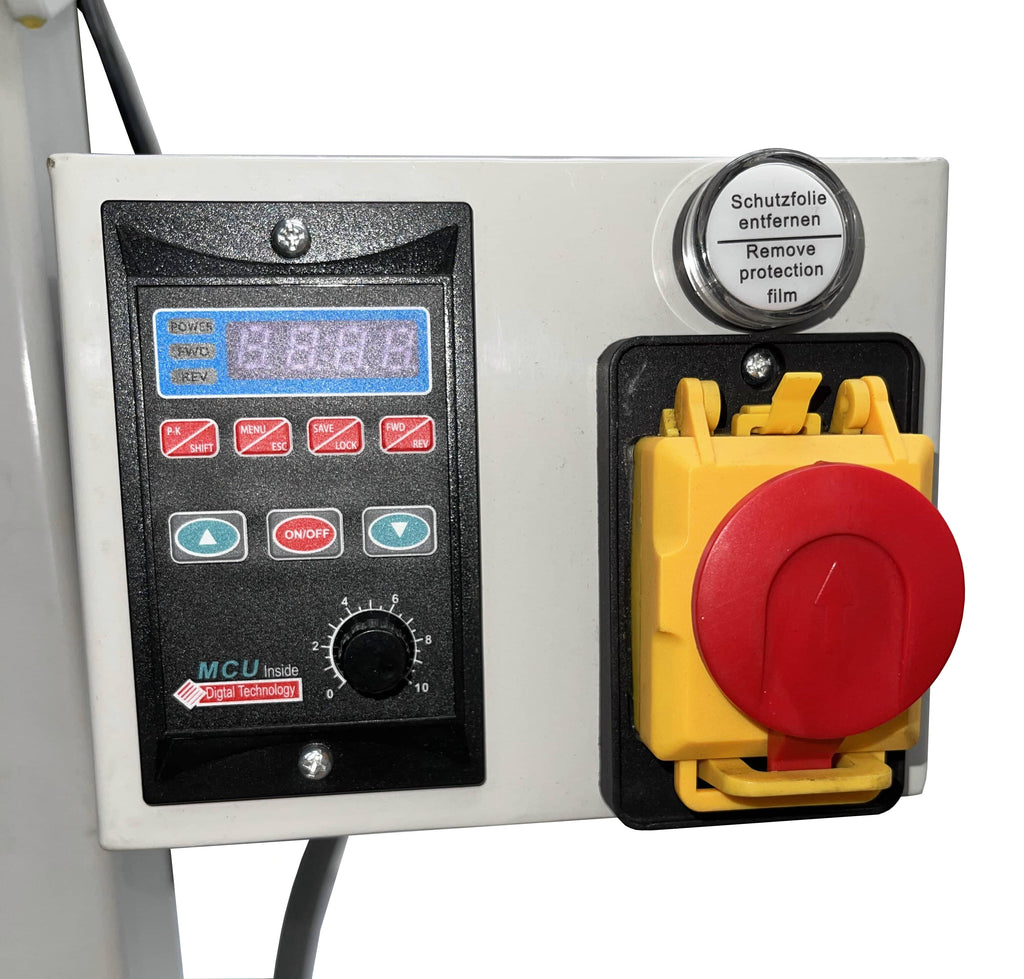

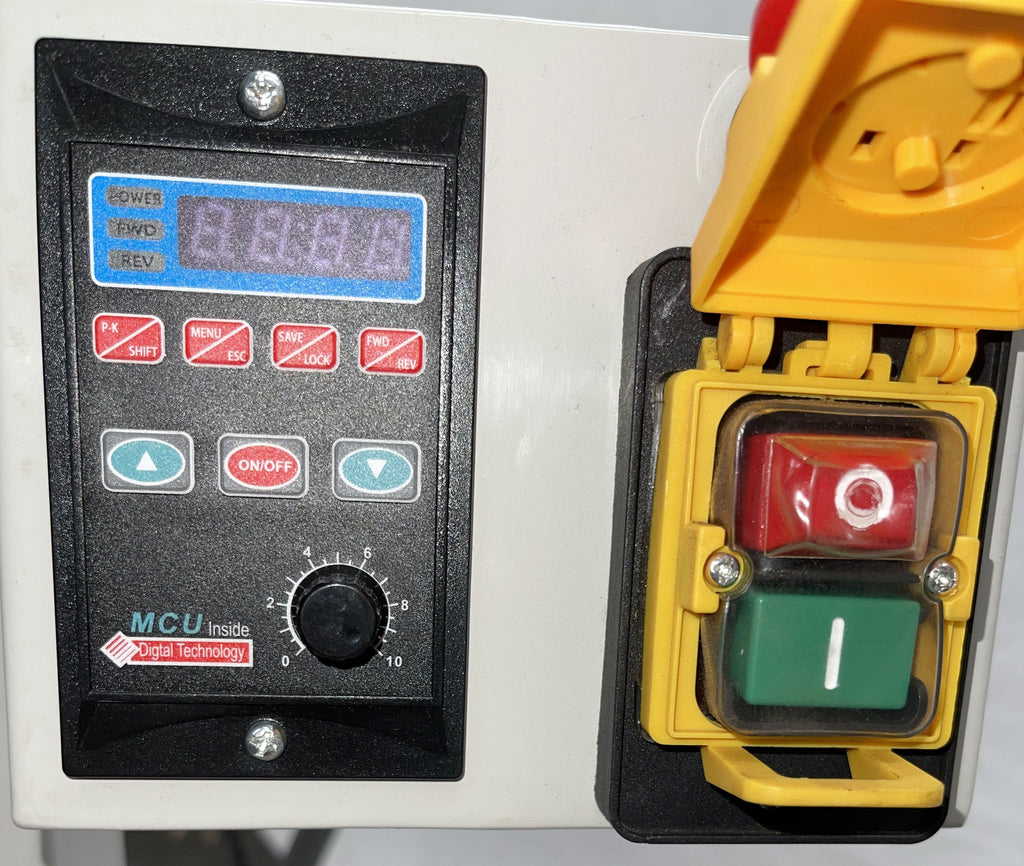

  •  240V single phase motor with variable speed control
  •  Foot pedal switches to control forward/reverse running.
  •  105mm distance between top & bottom roller supports

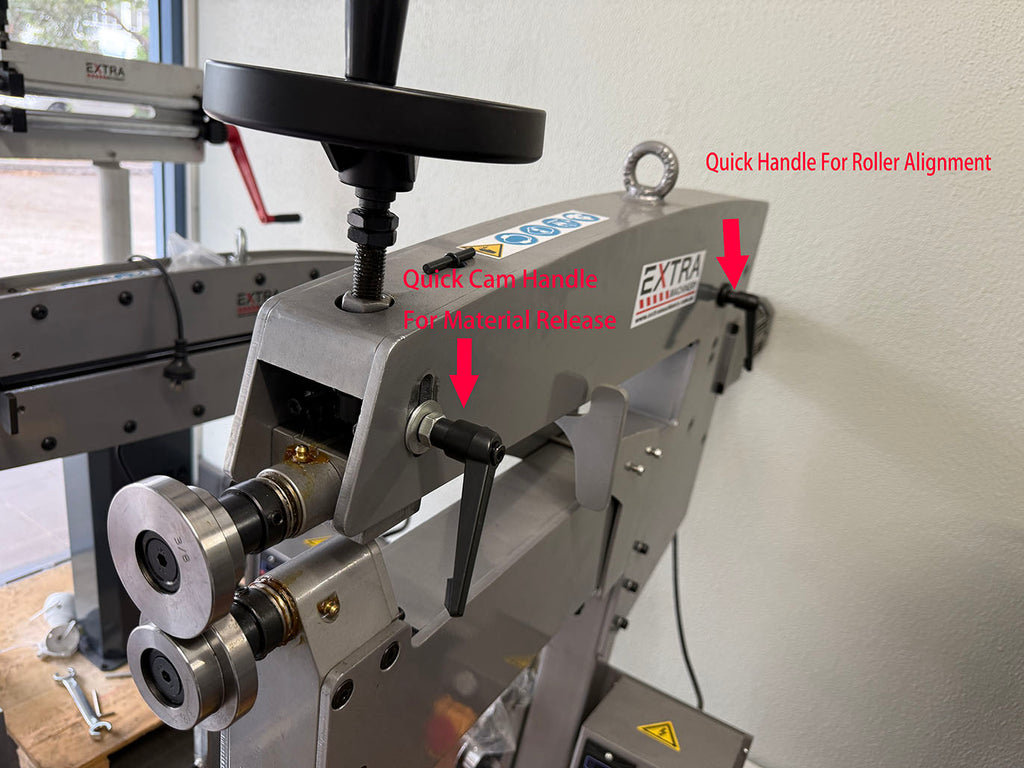

  •   Top shaft moves forward/backward to align the centre lines of top/bottom rollers
  •   Big hand wheel adjusts the depth of top roller.

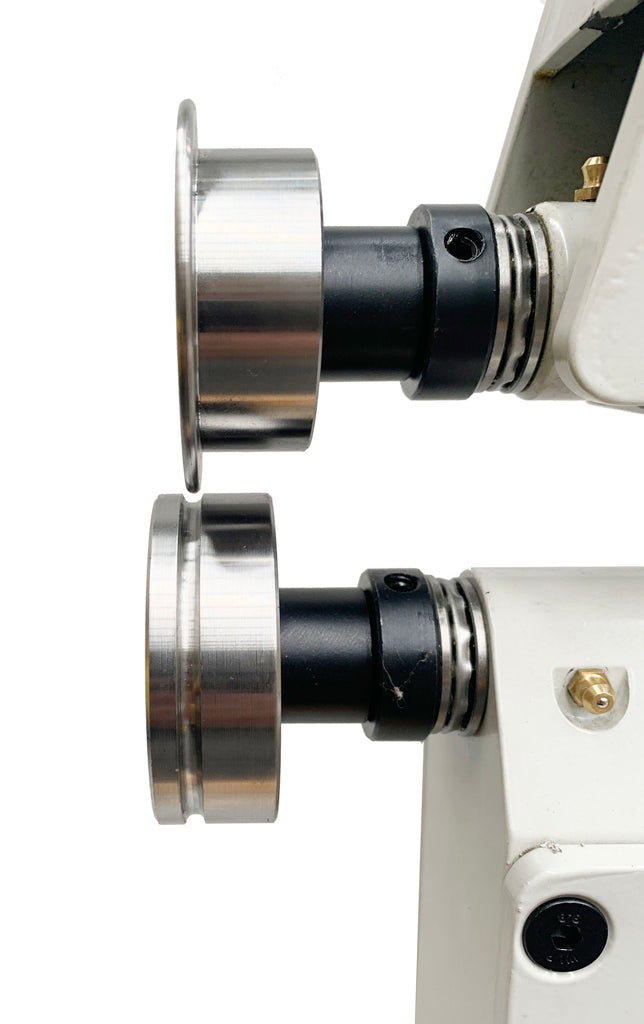

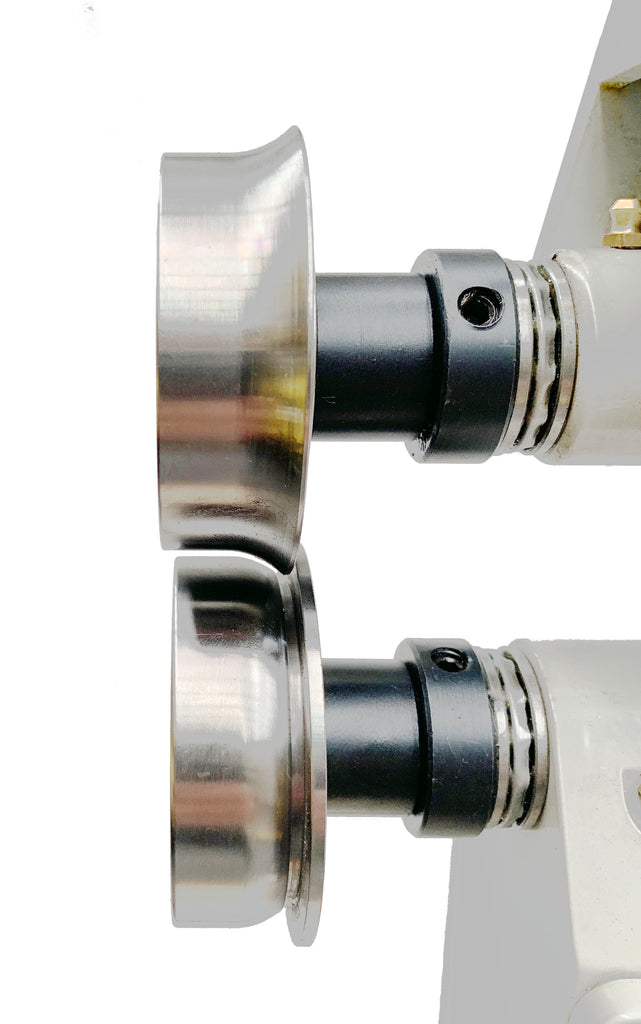

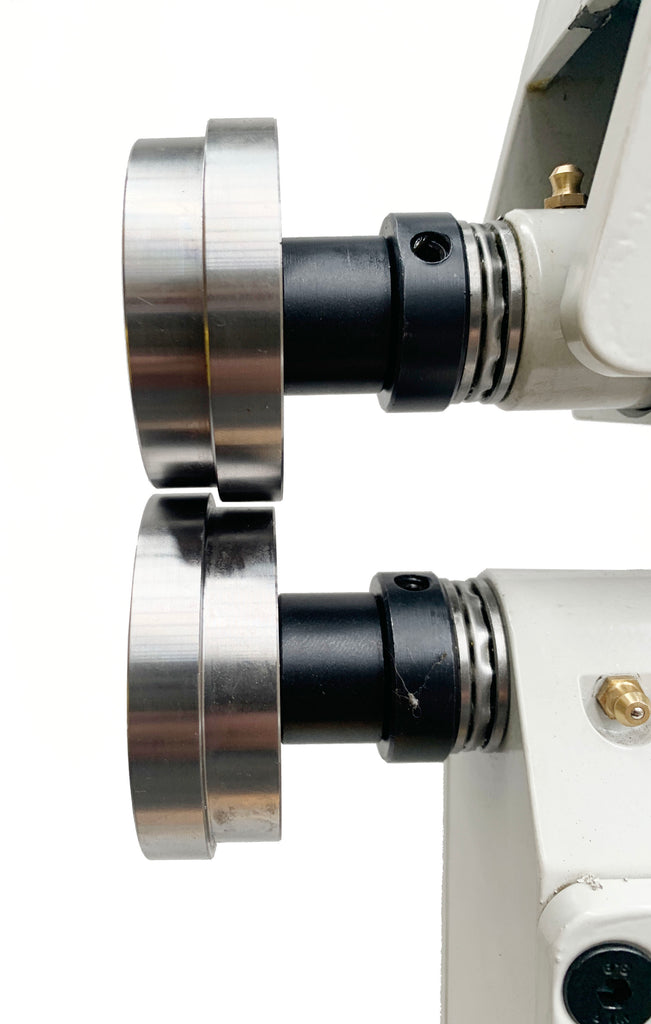

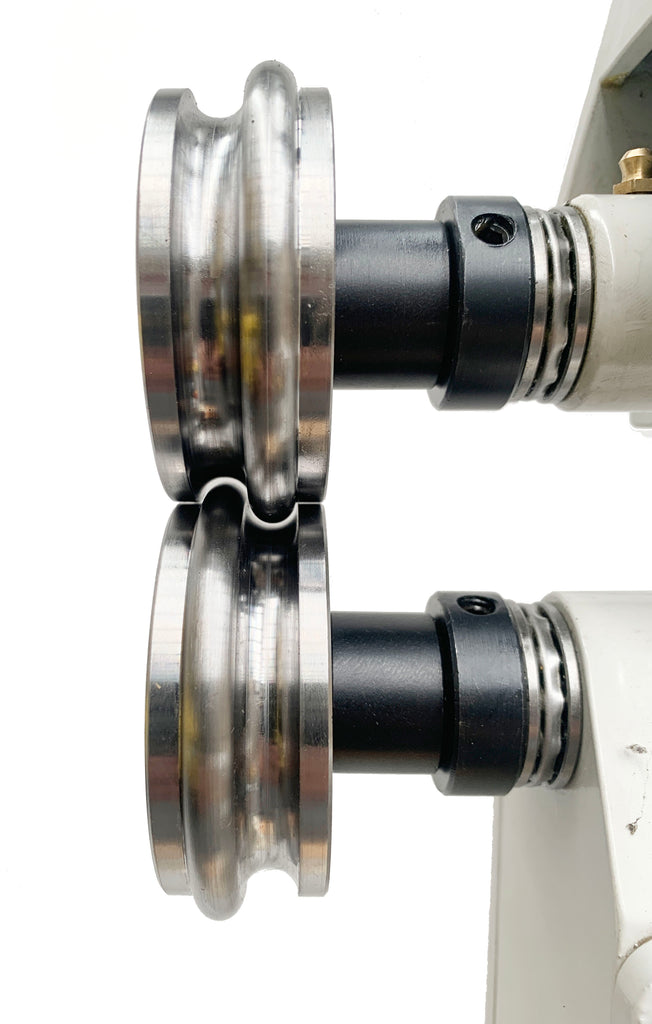

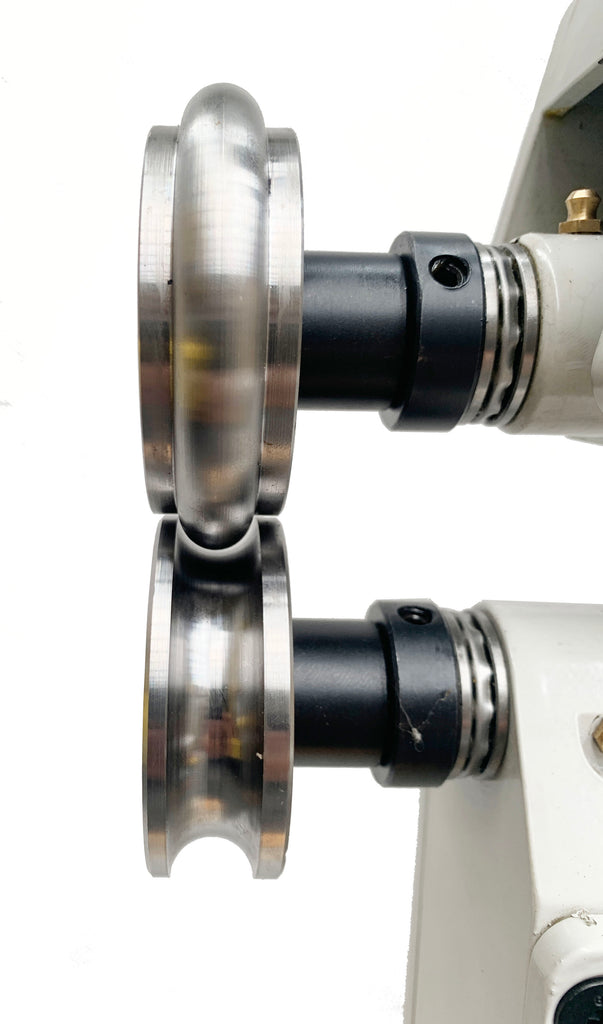

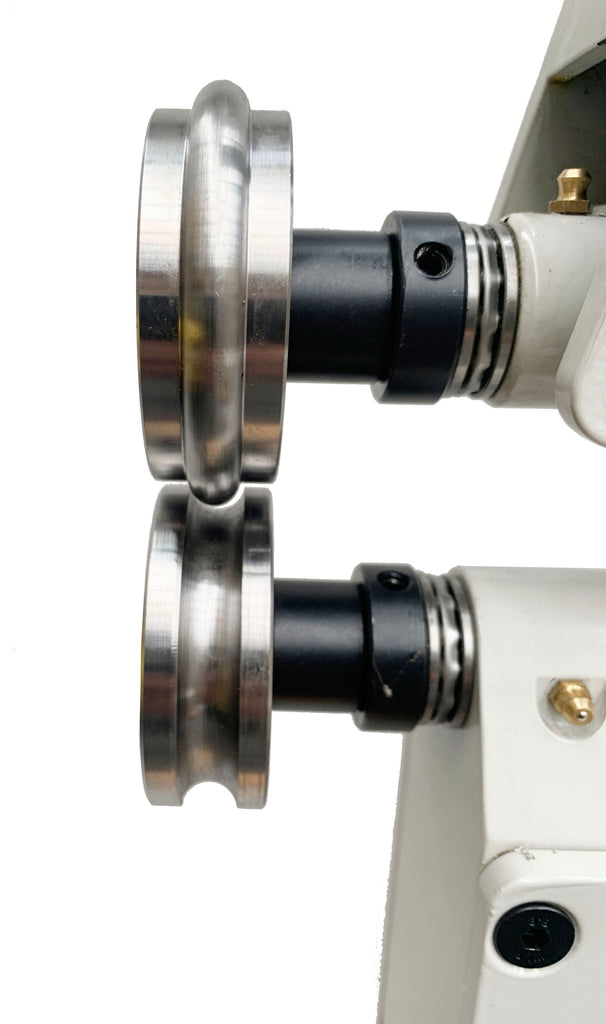

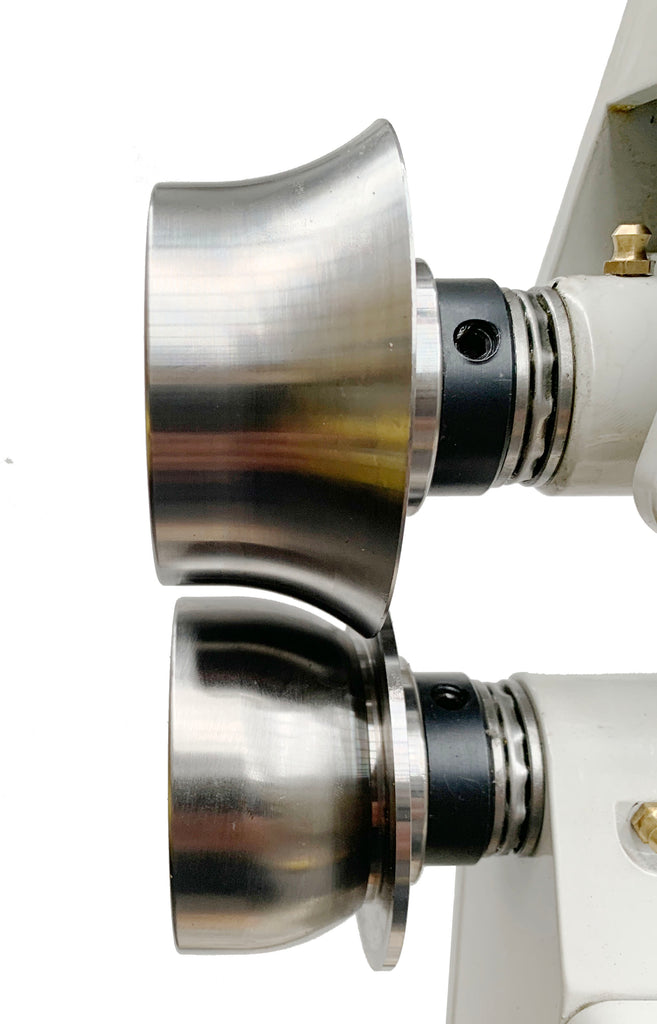

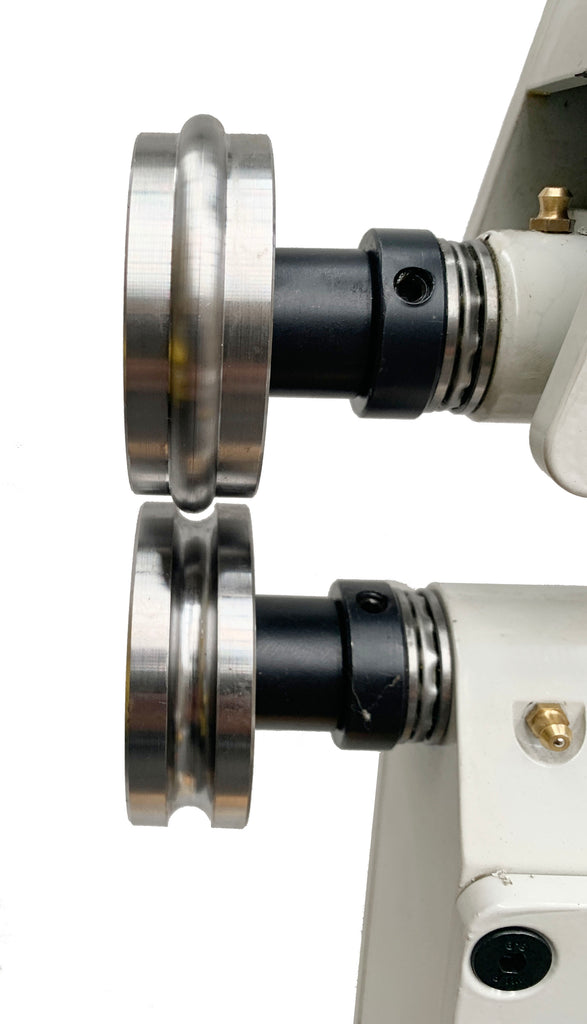

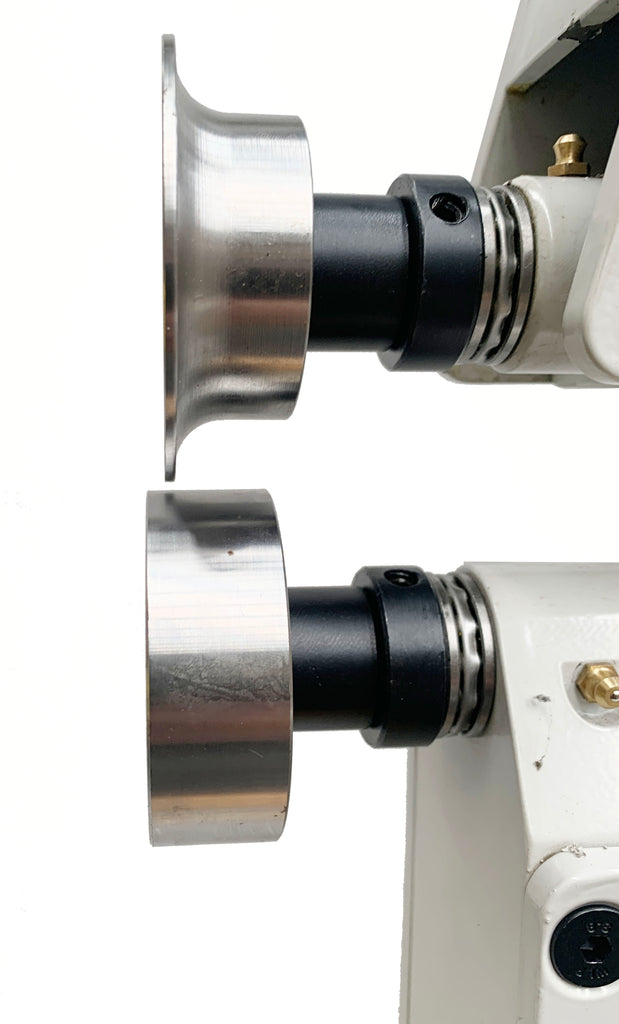

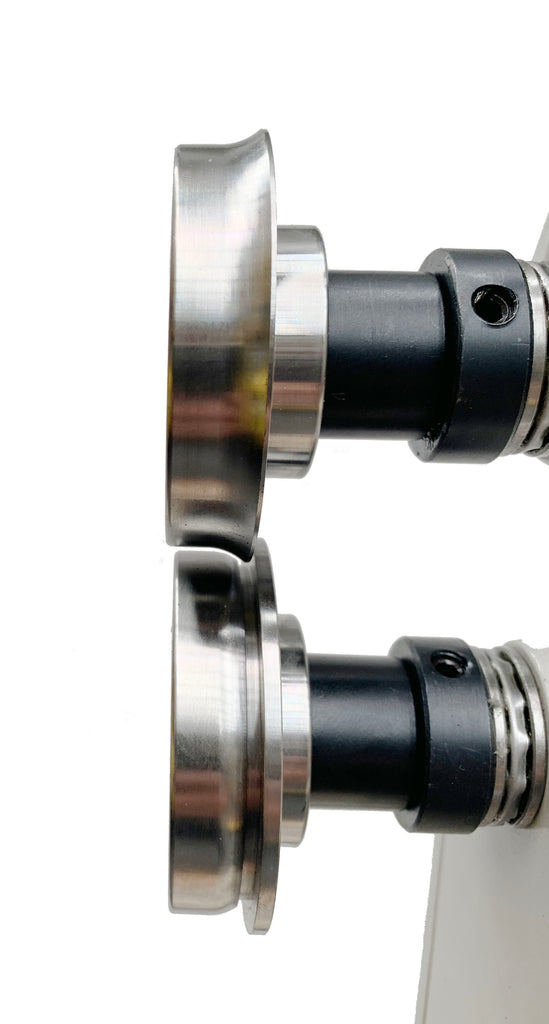

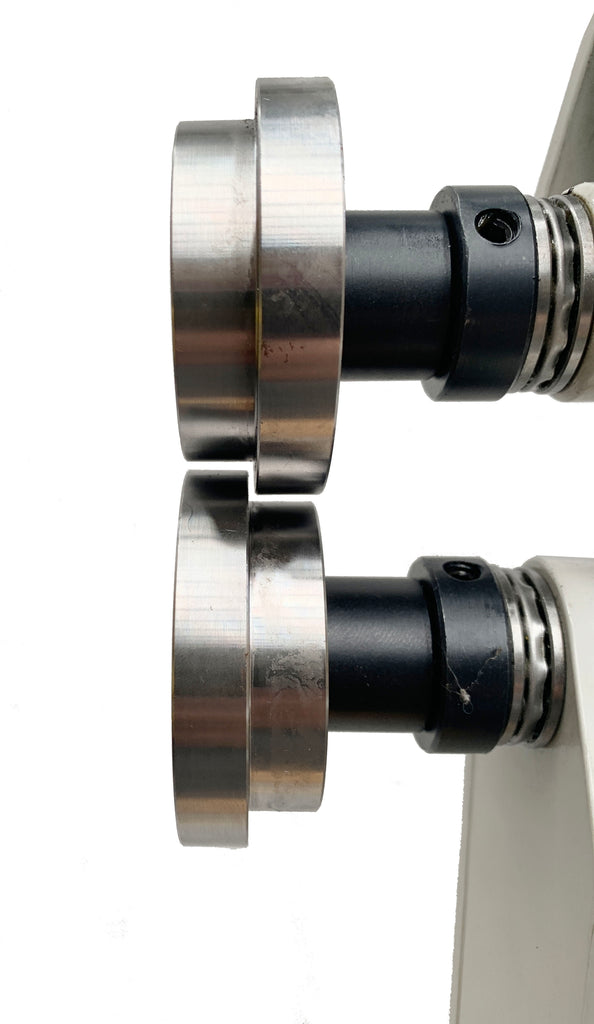

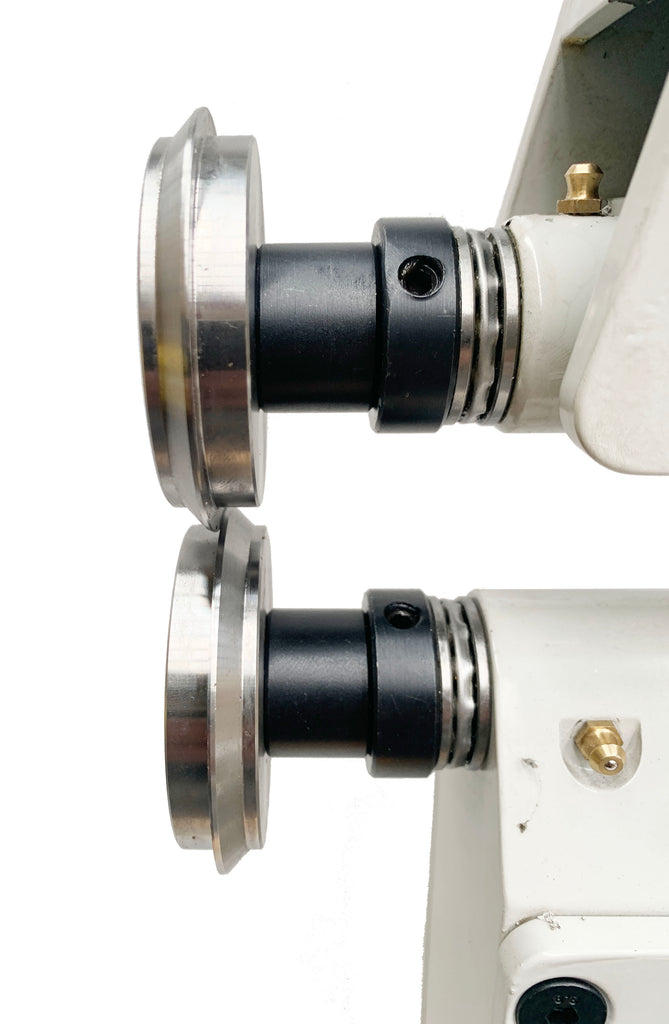

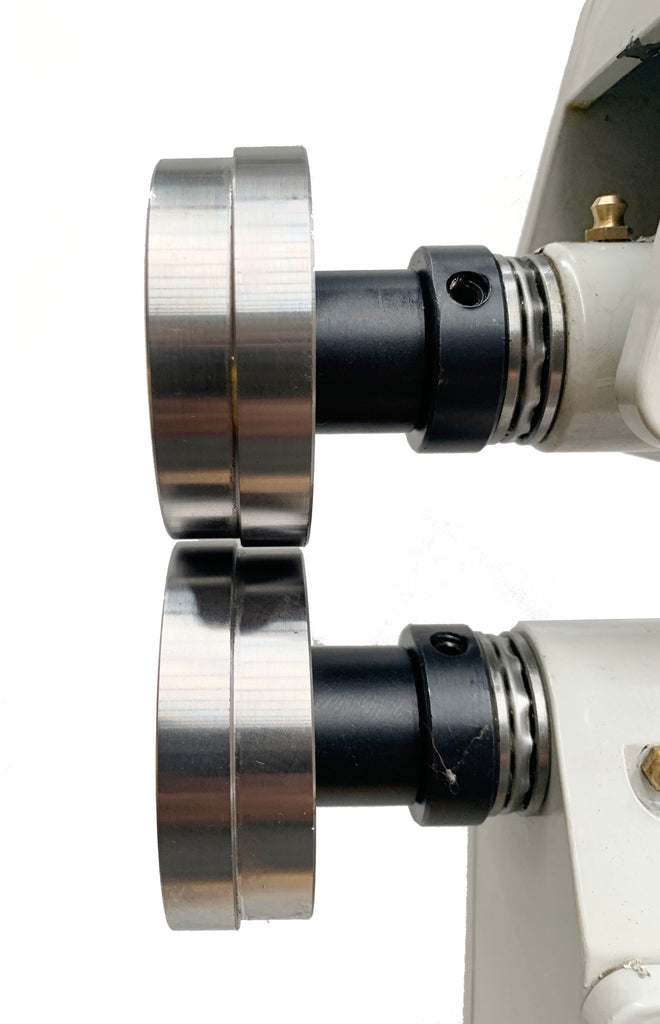

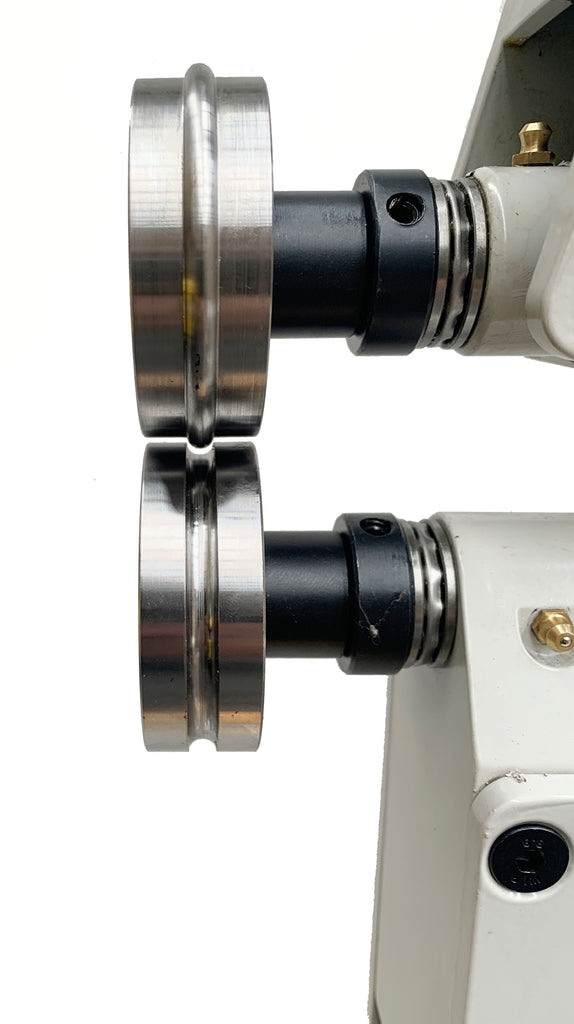

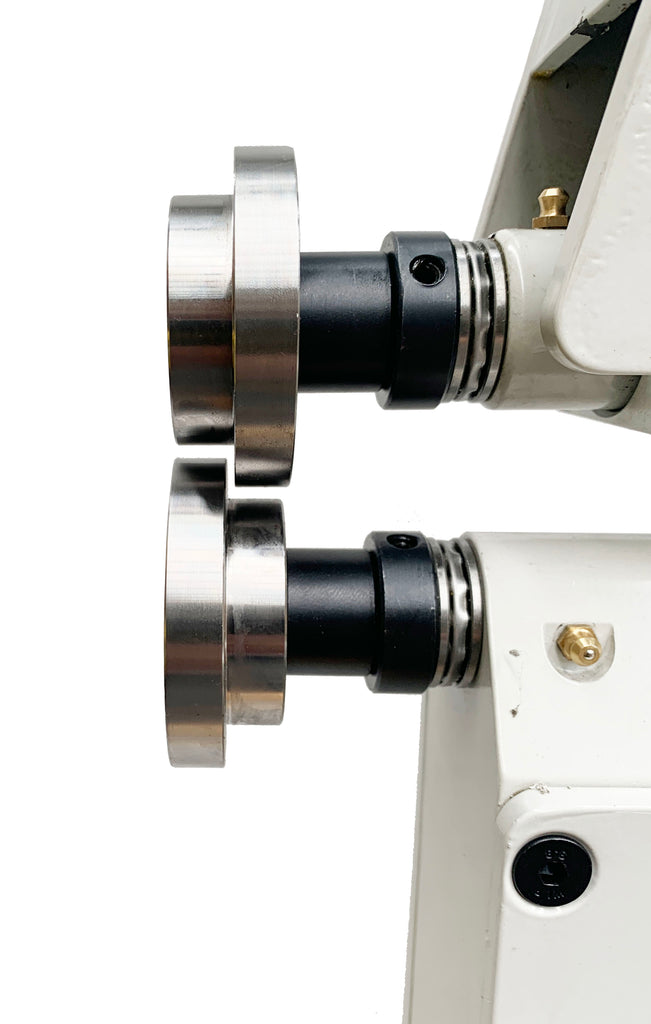

  •   All rollers are hardened, and keyway mounted

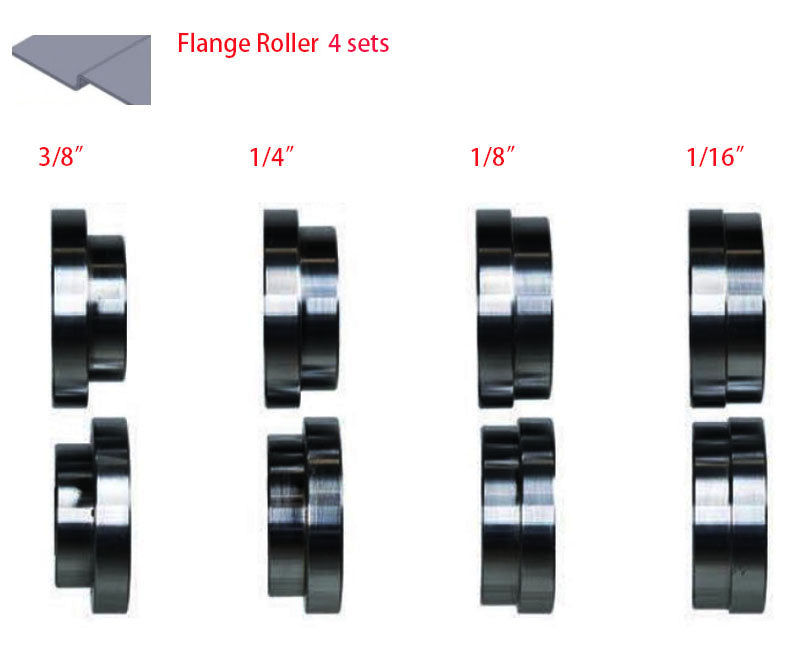

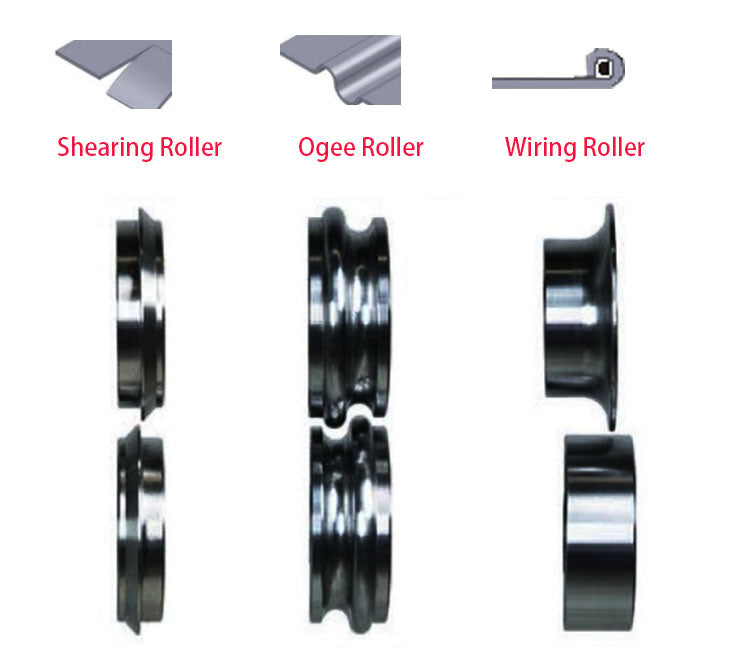

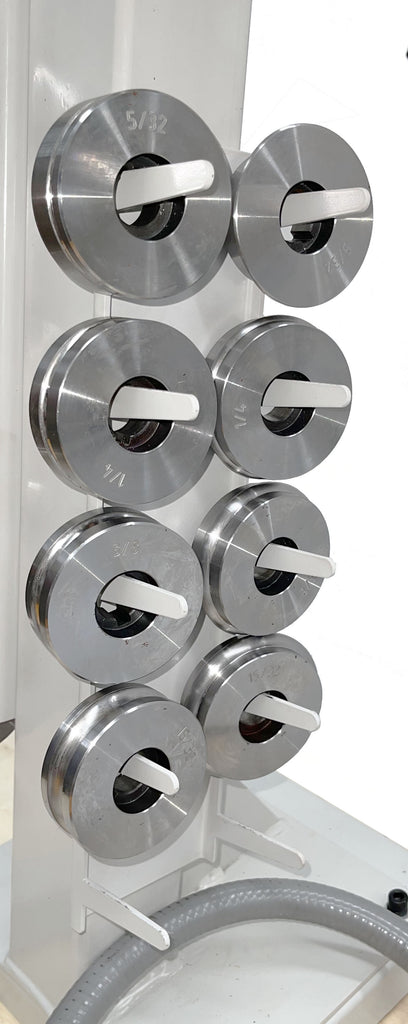

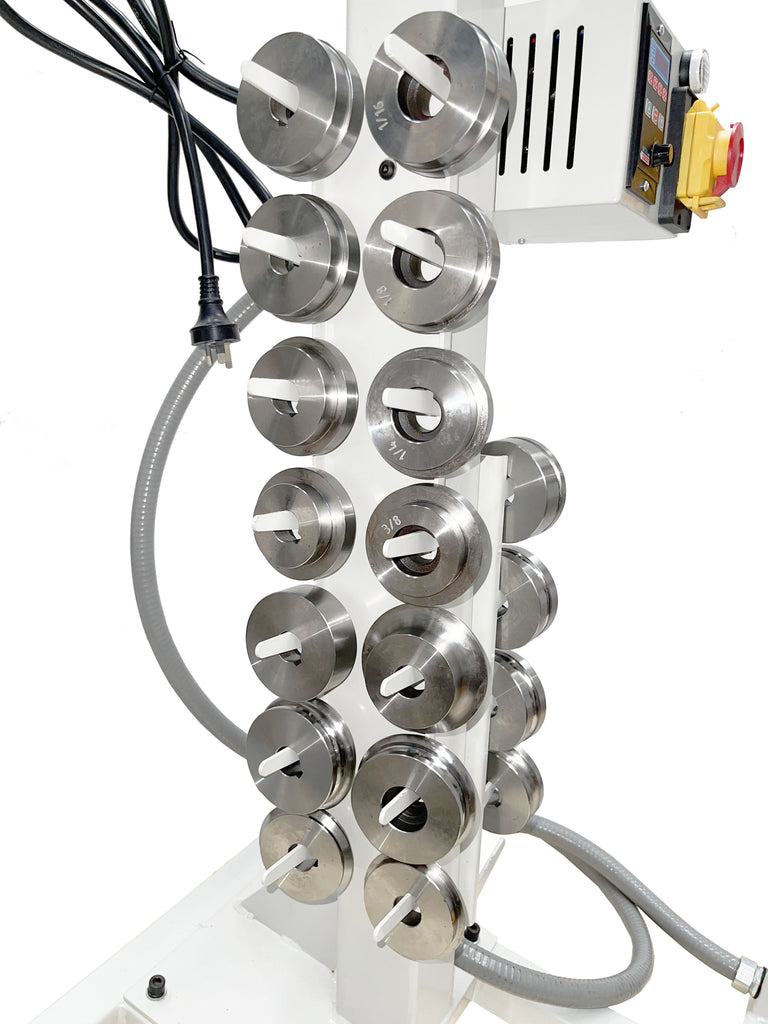

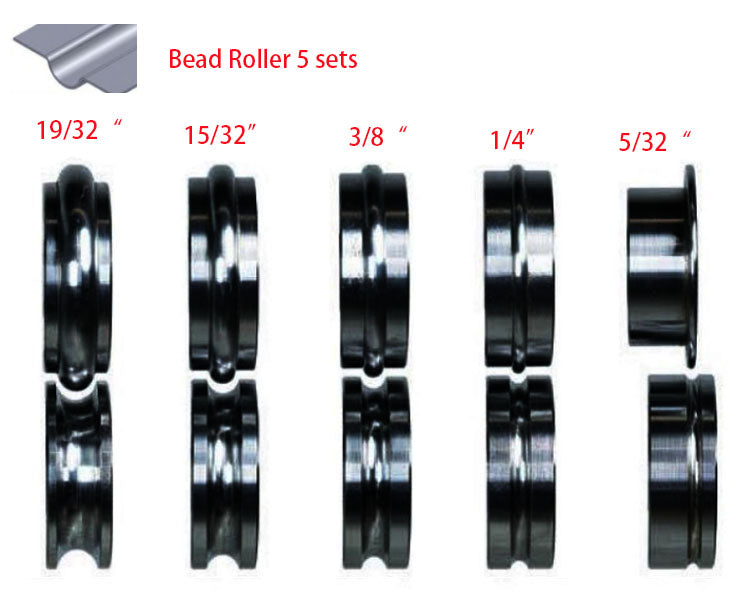

  •   Include 12 sets rollers as standard
  •   Two roller wheels are fitted on the base for easily moving the machine
  •   Include material stop fence
